Prepare outer paneling on upper A-pillar for installation - AR63.20-P-1105-02QA
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

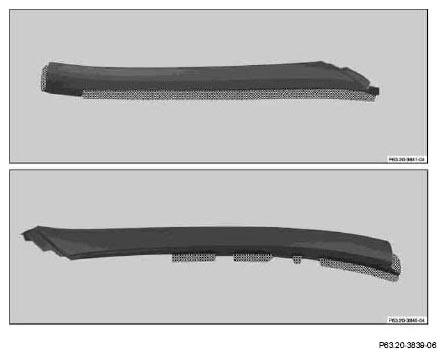

- Grind connection surfaces down to bare metal in shaded areas. Sand spot weld flanges to bare metal on both sides
- Coat insides of spot weld flanges with zinc dust paint.
