Install reinforcement on tunnel - AR63.40-P-1185-03QA
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

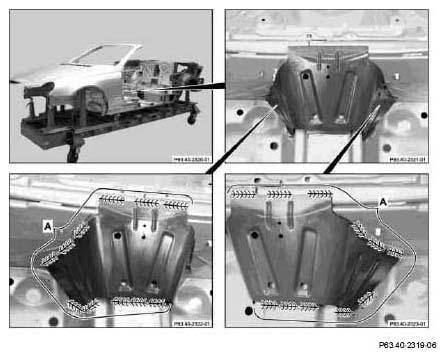

- Install reinforcement on tunnel and fasten with clamping pliers.
(area A)
- Clean welds with wire brush and coat with zinc dust paint.
