Removing and installing loudspeaker in instrument panel - AR82.62-P-7833Q

MODEL 209

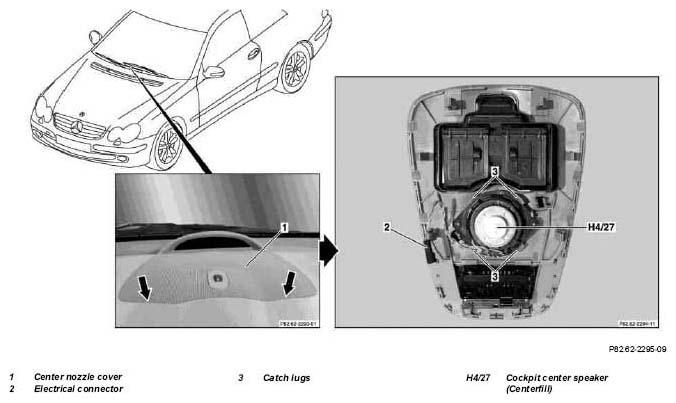

Fig 1: Identifying Loudspeaker In Instrument Panel Components - Shown On Model 209.3

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 209.3

MODIFICATION NOTES

11.2.04

Disconnect/connect/remove ground lead from battery

	Remove/install
1	Unclip center nozzle cover (1)		Fig 2
2	Detach electrical connector (2) and remove center nozzle cover (1).
3	Unclip center cockpit speaker (centerfill) (H4/27) and remove	Press detent lugs (3) outwards.
4	Install in the reverse order
5	Perform function check
