Remove/install antenna amplifier module sealing rail - AR82.62-P-8300-05P

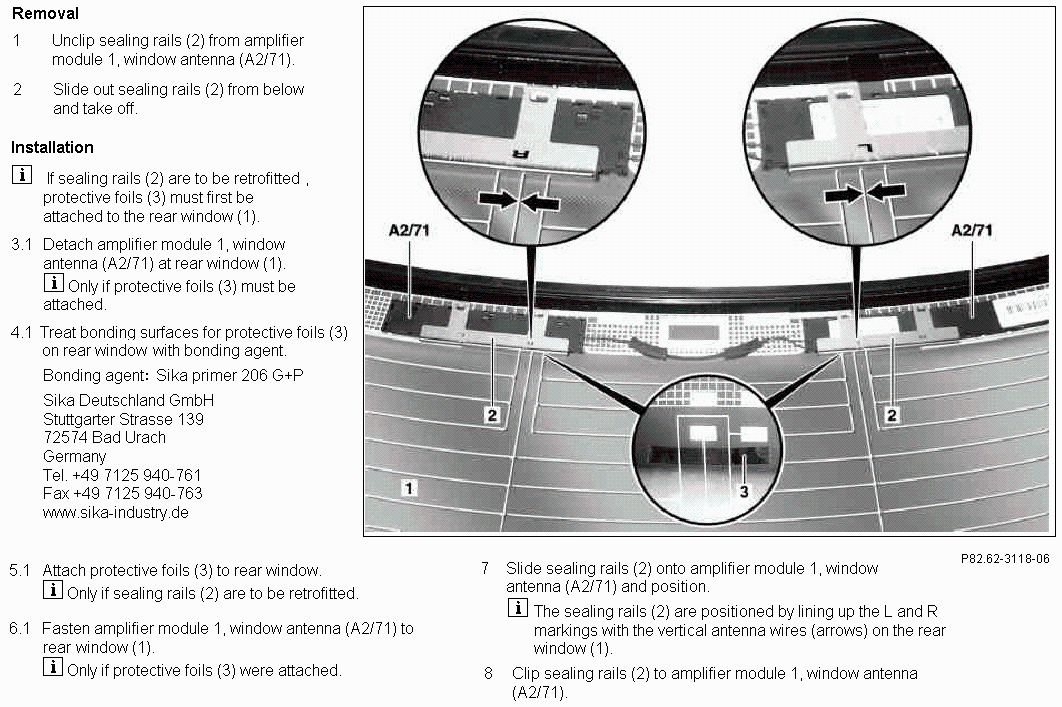

Fig 1: Removing/Installing Antenna Amplifier Module Sealing Rail

G00534149

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
