Remove/install cruise control switch - AR54.25-P-2803Q

MODEL 209 up to 31.5.04 with CODE (440) Cruise control

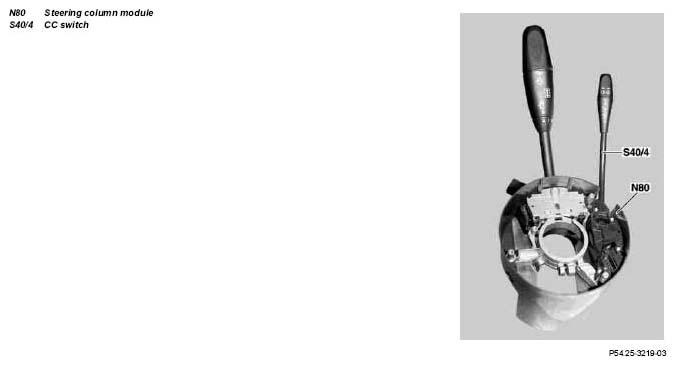

Fig 1: Identifying Cruise Control Switch Components

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1	Remove steering angle sensor		AR46.10-P-0300Q
2	Remove cruise control switch (S40/4) from steering column module (N80)
3	Install in the reverse order
4	Read out fault memory and erase	Faults stored due to cables being disconnected for assembly/testing operations or due to a simulation, must be processed and erased from the fault memories after work is completed. STAR DIAGNOSIS system	*WH58.30-Z-1048-13A
5	Perform function check
