Remove/install Parktronic system (PTS) warning display in rear passenger compartment - AR54.65-P-0007Q
MODEL 209.4 with CODE (220a) Parktronic System (PTS)
MODIFICATION NOTES
| 20.1.04 | Disconnect/connect/remove ground lead from battery |
| Removal/installation | |||
|---|---|---|---|

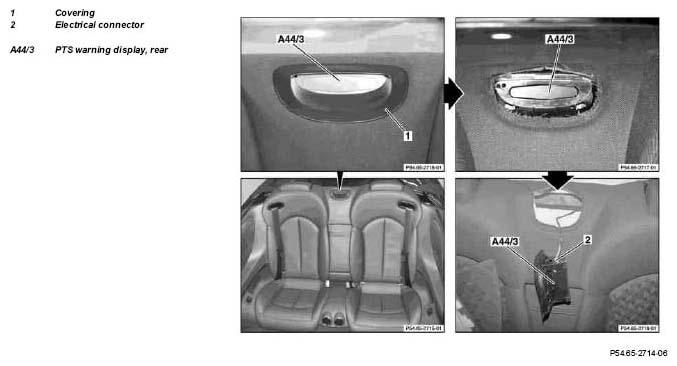

| 1 | Pull covering (1) up to unclip | ||
| 2 | Remove rear PTS warning indicator (A44/3) from the rear seat backrest covering | ||
| 3 | Unlock electrical connector (2) and disconnect | ||
| 4 | Remove rear PTS warning indicator (A44/3) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform function check |
