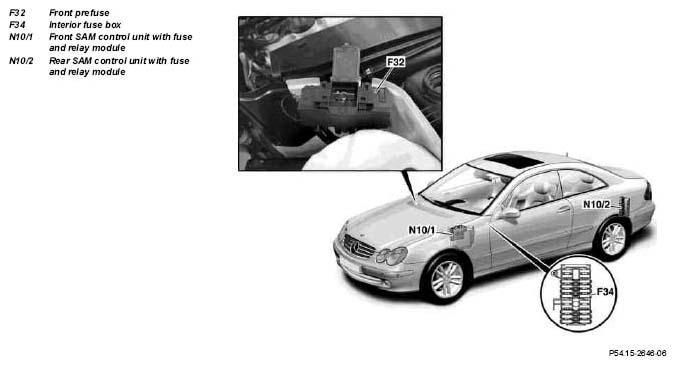

Fuse and relay box as-built configuration - GF54.15-P-0800Q
MODEL 209.308 /316 /320 /341 /342 /343 /354 /356 /361 /365 /372 /375 /420 /441 /442 /454 /456 /461 /465 /472 /475
| Fuse assignment of fuse and relay box in lefthand of engine compartment | GF54.15-P-1256-03Q | ||
| Relay assignment of fuse and relay box in engine compartment, left | GF54.15-P-1257-03P | ||
| Fuse assignment of fuse box in interior compartment on driver's side | GF54.15-P-1256-04Q | ||
| Fuse assignment of rear fuse and relay box | GF54.15-P-1256-01Q | ||
| Relay assignment of rear fuse and relay box | GF54.15-P-1257-01P | ||
| Fuse assignment of front prefuse box | GF54.15-P-1256-07Q |
