Fault Code Diagnosis Equipment Connection

WARNING: This page is about a different car, the 2004 Mercedes-Benz C230 and 2003 Mercedes-Benz C230. However, it is still accessible from the selected car via links, so may be relevant.

To connect hand held tester scan tool to Mercedes-Benz data link connector, see Fig 1 . To connect hand held tester scan tool to OBD-II data link connector, see Fig 2 .

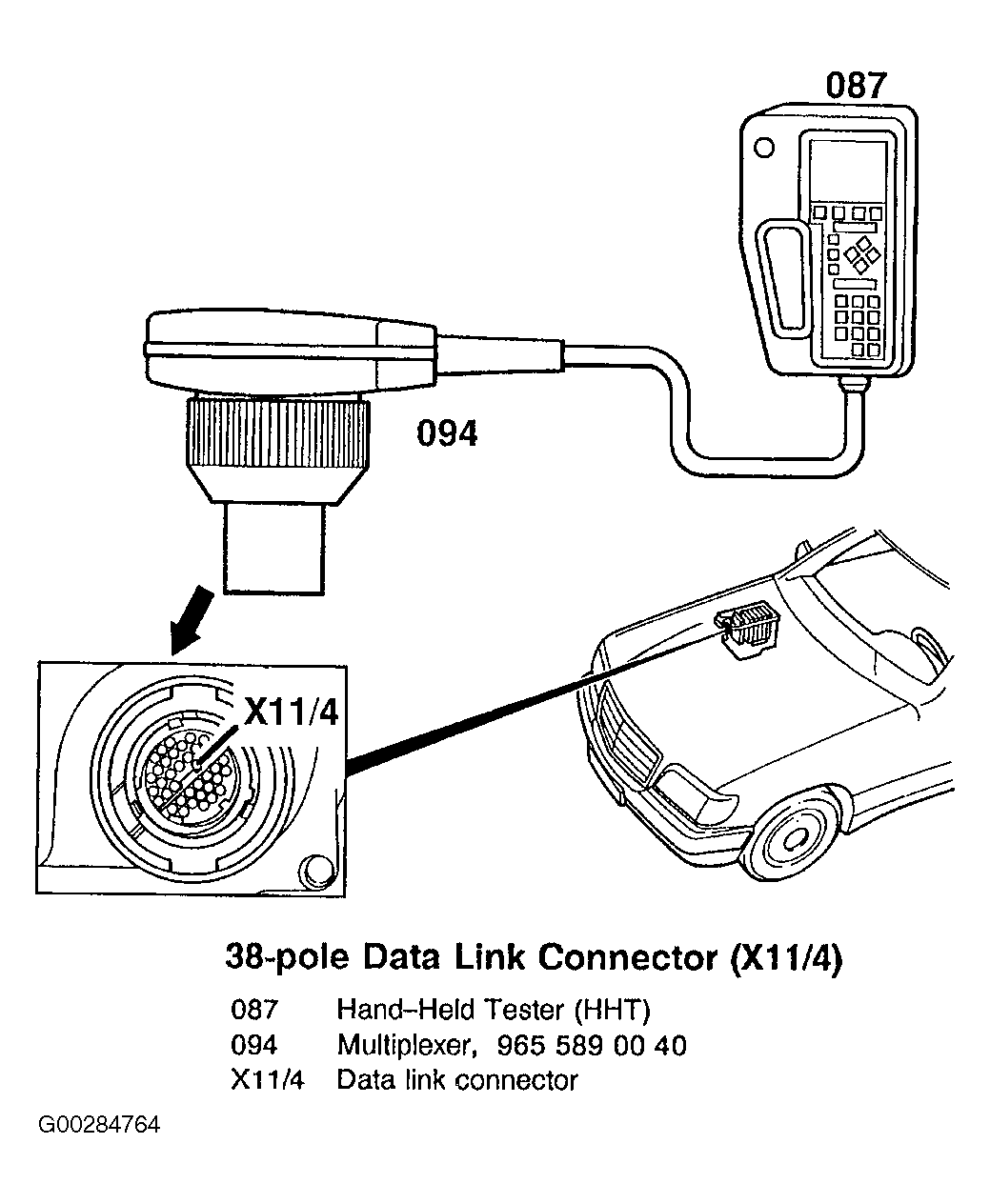

Fig 1: Connecting Hand Held Tester Scan Tool To Mercedes-Benz Data Link Connector
G00284764Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

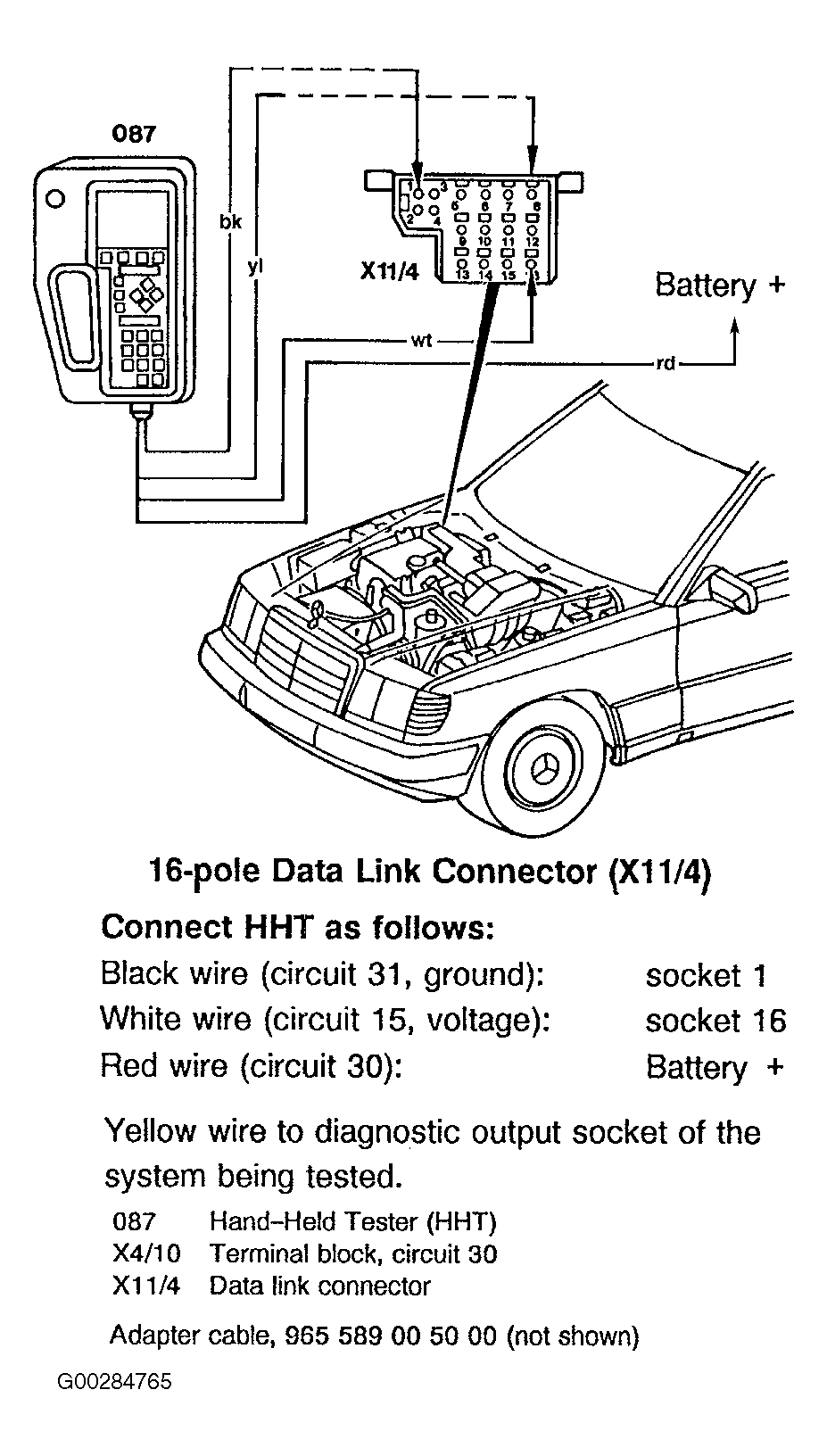

Fig 2: Connecting Hand Held Tester Scan Tool To OBD-II Data Link Connector
G00284765Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
