Remove/install bottom parts of soundproofing - AR94.30-P-5300EW

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C63, 2010 Mercedes-Benz C350, and 2009 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218 (except 204.9) Vehicles with diesel engine

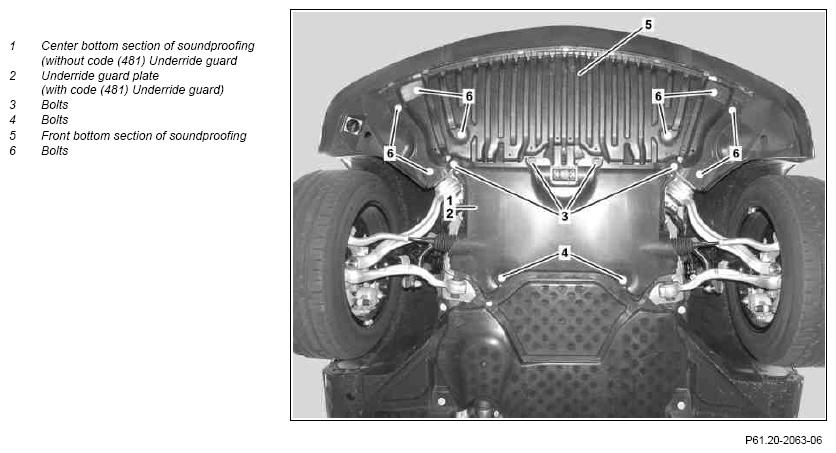

Shown on model 212

Fig 1: Identifying Soundproofing Bottom Components

Courtesy of MERCEDES-BENZ USA

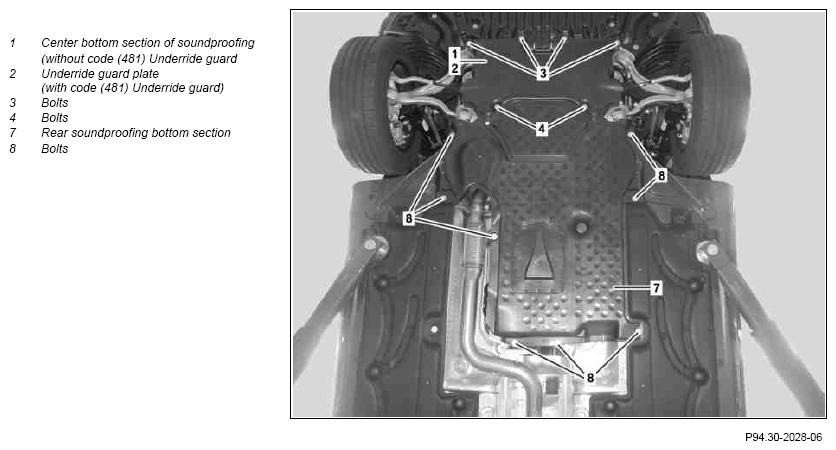

Shown on model 212 with engine 642

Fig 2: Identifying Soundproofing Bottom Components

Courtesy of MERCEDES-BENZ USA

Picture item, etc.	Work instructions
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Raise vehicle with vehicle lift
1	Middle bottom section of soundproofing	Vehicle without code (481) Underride guard Unscrew bolts (3, 4) and remove center bottom section of soundproofing (1). Rechargeable drill / screwdriver
2	Underride guard plate	Vehicles with code (481) Underride guard Unscrew bolts (3, 4) and remove underride guard plate (2).	*BA61.40-P-1001-01D
5	Front bottom section of soundproofing	On vehicles without code (481) Underride guard; first remove center bottom section of soundproofing (1). On vehicles with code (481) Underride guard; first remove underride guard plate (2). Unscrew bolts (6) and remove front bottom section soundproofing (5). An additional bolt is installed at the front in the center on model 218. Rechargeable drill / screwdriver
7	Rear soundproofing bottom section	Vehicles without code (481) Underride guard: Unscrew bolts (4, 8) and remove rear bottom section of soundproofing (7) Vehicles with code (481) Underride guard: Remove bolts (4, 8). Move underride guard plate (2) down by loosening bolts (3) and remove rear bottom section of soundproofing (7). Bolts (3, 4) Rechargeable drill / screwdriver	*BA61.40-P-1001-01D

UNDERBODY PROTECTION

Number	Designation		Model 204 with code 481/430	Model 207 with code 481
BA61.40-P-1001-01D	Bolt, underbody protection plate	Nm	17	17

UNDERBODY PROTECTION

Number	Designation		Model 212 with code 481	Model 218 with code 481
BA61.40-P-1001-01D	Bolt, underbody protection plate	Nm	17	17
