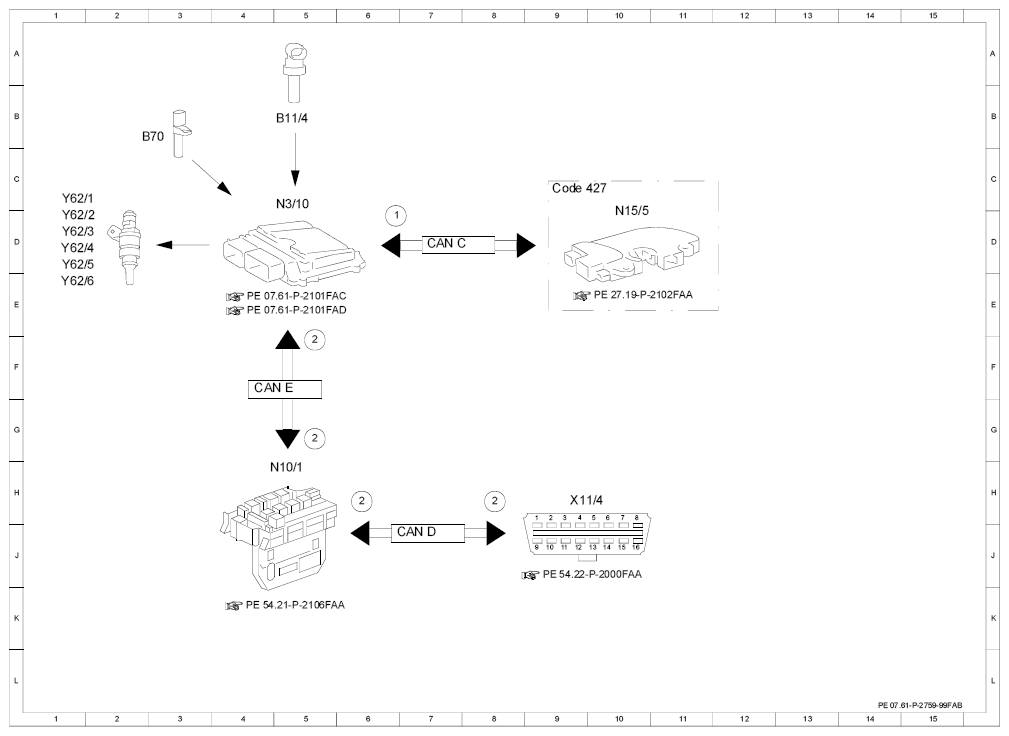

Electrical function schematic, post-start enrichment ME - PE07.61-P-2759-99FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Shift stage, request | 6D |
| 2 | Correction programming, communication | 5G |
| 2 | Correction programming, communication | 5F |
| 2 | Correction programming, communication | 6H |
| 2 | Correction programming, communication | 8H |
| B11/4 | Coolant temperature sensor | 5B |
| B70 | Crankshaft Hall sensor | 2C |
| CAN C | Drive train CAN | 7D |
| CAN D | Diagnostic CAN | 6J |
| CAN E | Chassis CAN | 4G |
| Code 427 | 7-speed automatic transmission | 9C |
| N10/1 | Front SAM control unit with fuse and relay module | 4H |
| N15/5 | Electronic selector lever module control unit | 10D |
| N3/10 | ME-SFI [ME] control unit | 5D |
| X11/4 | Diagnostic connector | 9H |
| Y62/1 | Cylinder 1 injection valve | 1C |
| Y62/2 | Cylinder 2 injection valve | 1D |
| Y62/3 | Cylinder 3 injection valve | 1D |
| Y62/4 | Cylinder 4 injection valve | 1D |
| Y62/5 | Cylinder 5 injection valve | 1E |
| Y62/6 | Cylinder 6 injection valve | 1E |
