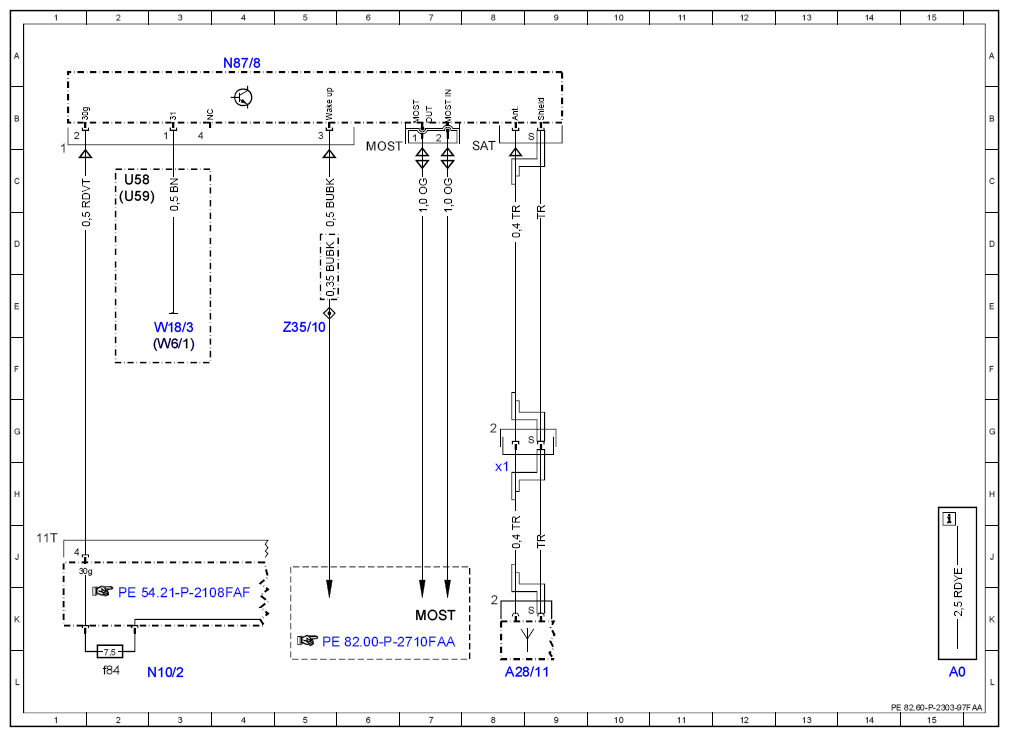

Wiring diagram for high definition tuner control unit - PE82.60-P-2303-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 as of model year 2010 /YoM 09, control unit N87/8 MODEL 204 up to model year 2011 /YoM 10, control unit N87/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A28/11 | Multifunction antenna | 8L |
| A28/11x1 | Multifunction antenna electrical connector | 8H |
| MOST | Media Oriented System Transport | 7K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f84 | Fuse 84 | 2L |
| N87/8 | SDAR control unit / high definition tuner | 4A |
| U58 | Valid for model 204.0 | 2C |
| U59 | Valid for model 204.9 | 2C |
| W18/3 | Left front seat crossmember ground point 2 | 3E |
| W6/1 | Left taillamp trunk ground point | 3F |
| Z35/10 | MOST wake-up signal connector sleeve | 5E |
