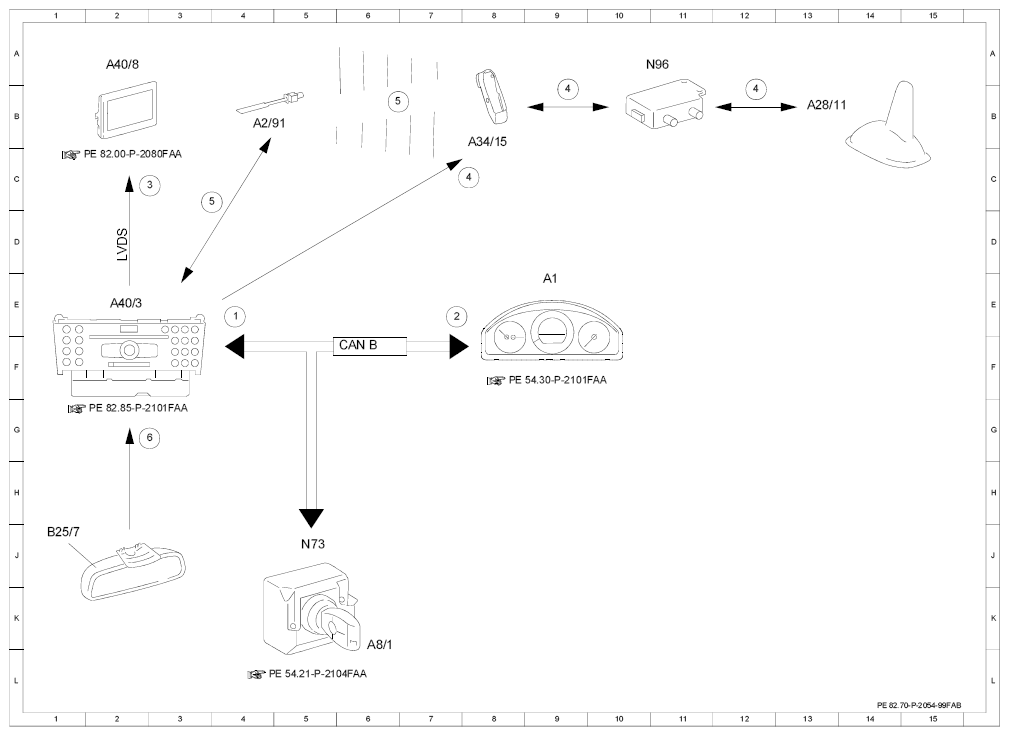

Electrical function schematic for mobile phone, switch on and switch off characteristics - PE82.70-P-2054-99FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (512) COMAND APS with DVD changer with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada with CODE (359) TELE AID emergency call system with CODE (810) Sound system up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status ON | 4 E |
| 2 | Instrument cluster, message | 7 E |
| 3 | Audio/COMAND display, message | 2 C |
| 4 | Telephone, signal | 8 C |
| 4 | Telephone, signal | 9 B |
| 4 | Telephone, signal | 12 B |
| 5 | Bluetooth, signal | 3 D |
| 5 | Bluetooth, signal | 6 B |
| 6 | Voice input, signal | 2 G |
| A1 | Instrument cluster | 9 E |
| A2/91 | Bluetooth antenna | 4 B |
| A28/11 | Multifunction antenna | 13 B |
| A34/15 | Mobile phone holder | 8 C |
| A40/3 | COMAND control unit | 2 E |
| A40/8 | Audio/COMAND display | 2 A |
| A8/1 | Transmitter key | 6 L |
| B25/7 | Voice control system microphone | 1 J |
| CAN B | Interior CAN | 6 F |
| N73 | Electronic ignition switch control unit | 5 J |
| N96 | Frequency switchover control unit | 10 A |
