Wiring diagram for media interface control unit - PE82.60-P-2105-97FAA
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C63, 2010 Mercedes-Benz C350, and 2009 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

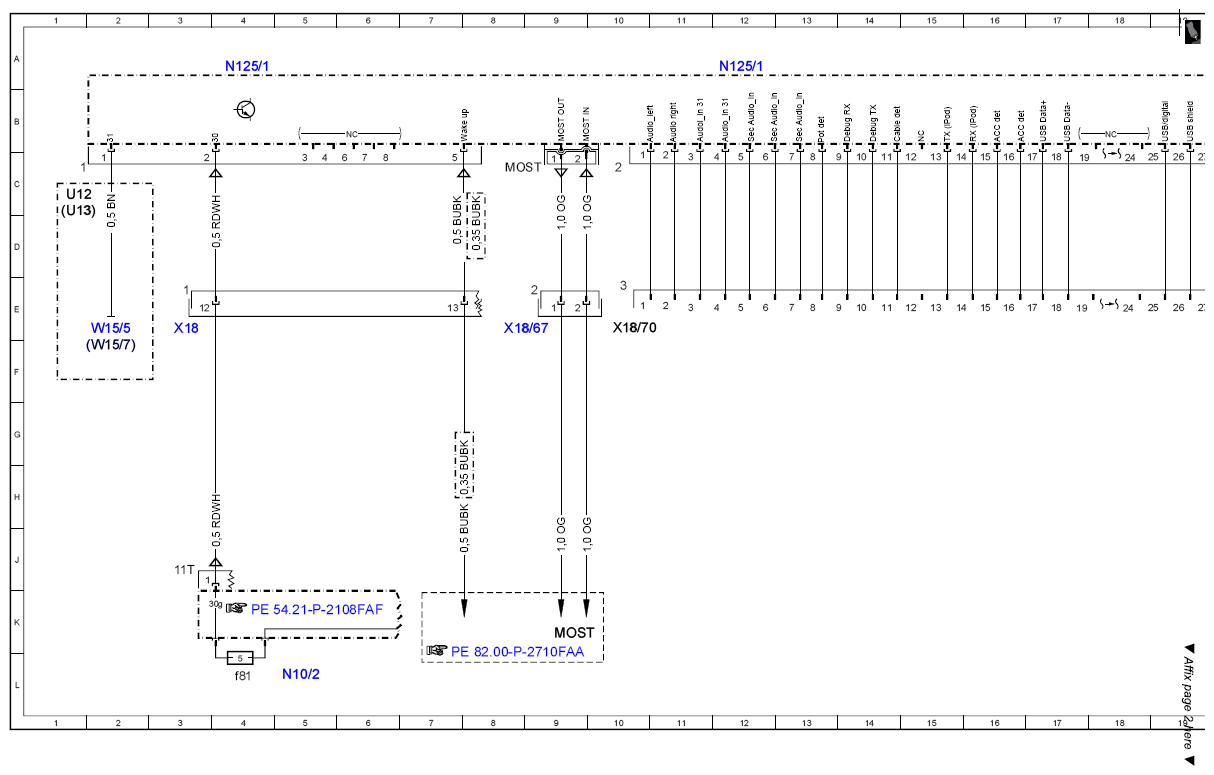

MODEL 204 with CODE 518 (Media interface) without CODE 498 (Japanese version) Control unit N125/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| MOST | Media Oriented System Transport | 9K |
| N10/2 | Rear SAM control unit with fuse and relay module | 5L |
| N10/2f81 | Fuse 81 | 4L |
| N125/1 | Media interface control unit | 4A |
| N125/1 | Media interface control unit | 12A |
| N125/1 | Media interface control unit | 20A |
| U12 | Valid for left-hand drive vehicles | 1C |
| U13 | Valid for right-hand drive vehicles | 1D |
| W15/5 | Left front footwell ground point | 2E |
| W15/7 | Right front footwell ground point | 2F |
| X18 | Vehicle interior and harness for taillamp electrical connector | 3E |
| X18/67 | Media interface electrical connector | 9E |
| X18/70 | Media interface electrical connector | 10E |
