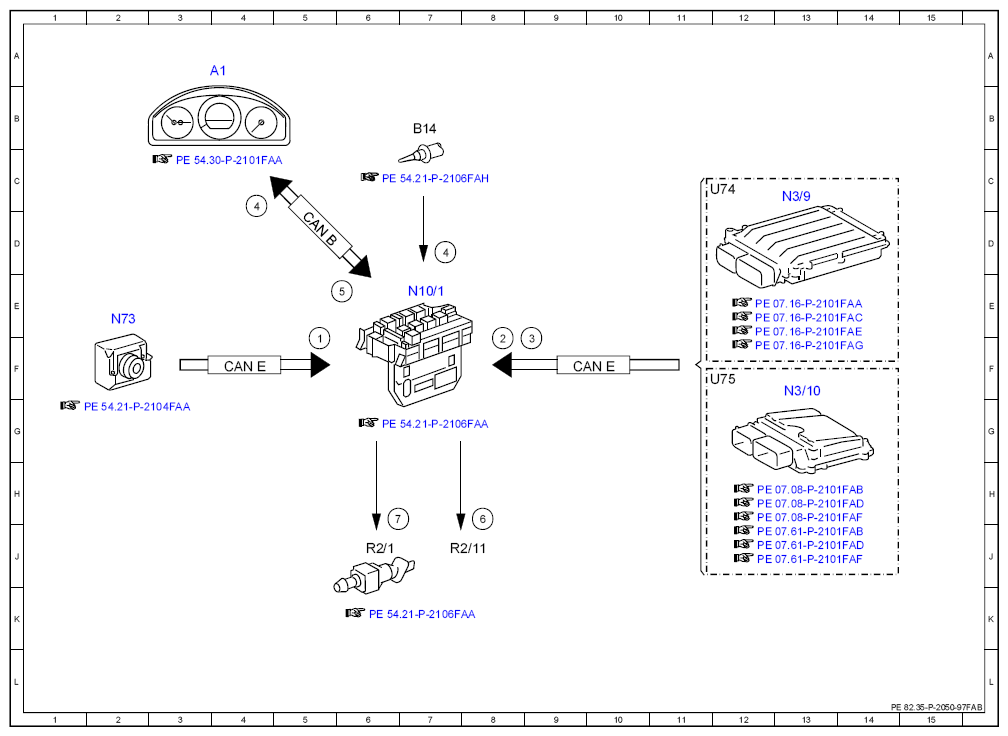

Electrical function schematic for washer nozzle heater - PE82.35-P-2050-97FAB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C63, 2010 Mercedes-Benz C350, and 2009 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 with CODE (875) Heated windshield washer system as of model year 2009 /YoM 08
MODEL 204.3 with CODE (875) Heated windshield washer system
MODEL 204.9 with CODE (875) Heated windshield washer system
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5F |
| 2 | Circuit 61, status | 8F |
| 3 | "PT_Rdy", signal | 9F |
| 4 | Outside temperature, signal | 7D |
| 4 | Outside temperature, signal | 4C |
| 5 | Displayed outside temperature, signal | 6E |
| 6 | Spray nozzle heater, actuation | 8H |
| 7 | Spray nozzle hose heater, actuation | 6H |
| A1 | Instrument cluster | 3A |
| B14 | Outside temperature sensor | 7B |
| CAN B | Interior CAN | 5D |
| CAN E | Chassis CAN | 4F |
| CAN E | Chassis CAN | 9F |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N3/10 | ME-SFI [ME] control unit | 13F |
| N3/9 | CDI control unit | 13C |
| N73 | Electronic ignition switch control unit | 2E |
| R2/1 | Spray nozzle heater | 6J |
| R2/11 | Spray nozzle hose heater | 7J |
| U74 | Valid for diesel engines | 11C |
| U75 | Valid for gasoline engines | 11F |
