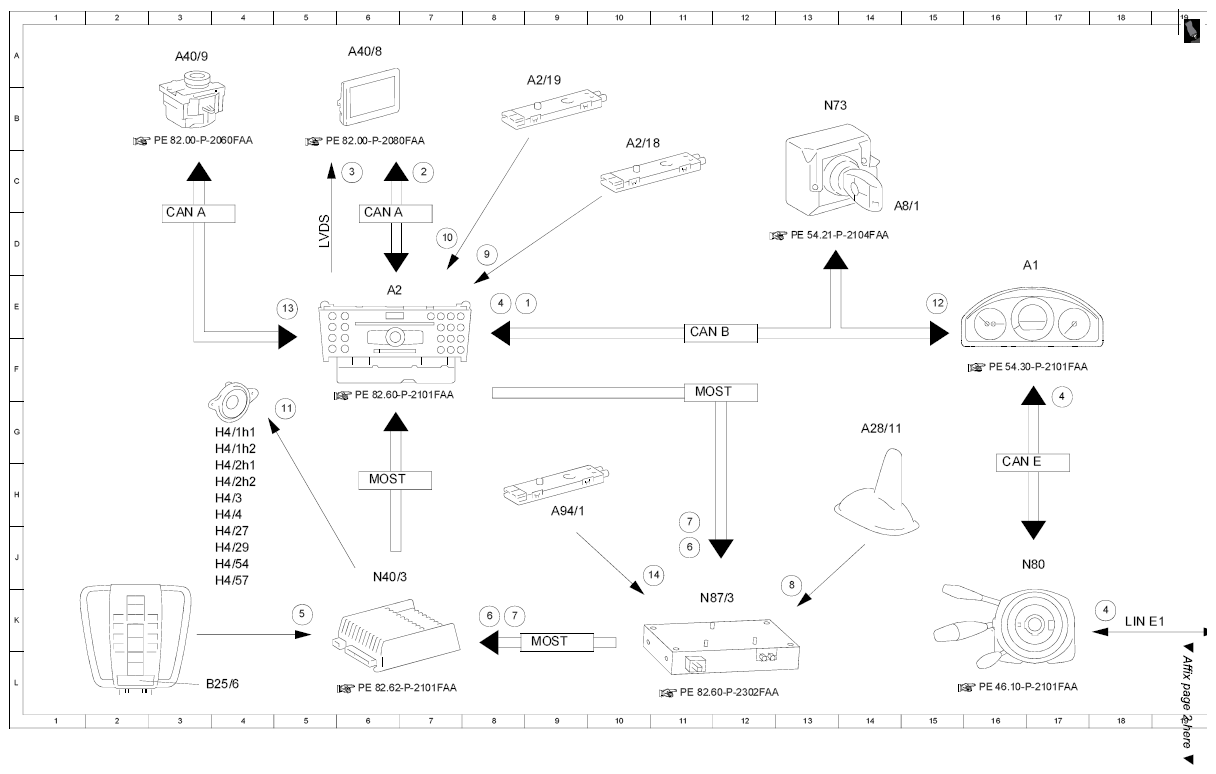

Electrical function schematic for radio - PE82.60-P-2050-99FAB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C63, 2010 Mercedes-Benz C350, and 2009 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
with CODE (510) AUDIO 25 radio
with CODE (537) Digital radio
with CODE (810) Sound system
except CODE (494) USA version
except CODE (498) Japan version up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8E |
| 2 | Switch-on request, signal | 7C |
| 3 | Audio/COMAND display, signal | 6C |
| 4 | Multifunction steering wheel button group, signal | 8E |
| 4 | Multifunction steering wheel button group, signal | 17G |
| 4 | Multifunction steering wheel button group, signal | 18K |
| 5 | Vehicle interior noise level, signal | 5K |
| 6 | DAB, communication | 8K |
| 6 | DAB, communication | 11J |
| 7 | Sound system amplifier, actuation | 8K |
| 7 | Sound system amplifier, actuation | 11J |
| 8 | L-band antenna, signal | 13K |
| 9 | AM/FM antenna, signal | 8D |
| 10 | FM antenna, signal | 7D |
| 11 | Speaker, actuation | 5G |
| 12 | Instrument cluster, message | 15E |
| 13 | Audio/COMAND controller, request | 5E |
| 14 | Band III antenna, signal | 10J |
| A1 | Instrument cluster | 16E |
| A2 | Radio | 6E |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 10C |
| A2/19 | Rear window antenna FM antenna amplifier | 9B |
| A28/11 | Multifunction antenna | 14G |
| A40/8 | Audio/COMAND display | 6A |
| A40/9 | Audio/COMAND control panel | 3A |
| A8/1 | Transmitter key | 14D |
| A94/1 | TV 1 and DAB band III antenna | 9H |
| B25/6 | Sound system microphone | 3L |
| CAN A | Telematics CAN | 3D |
| CAN A | Telematics CAN | 6D |
| CAN B | Interior CAN | 11F |
| CAN E | Chassis CAN | 16H |
| H4/1h1 | Left front door tweeter | 4G |
| H4/1h2 | Left front door bass speaker | 4G |
| H4/27 | Center instrument panel speaker | 4J |
| H4/29 | Bass speaker | 4J |
| H4/2h1 | Right front door tweeter | 4H |
| H4/2h2 | Right front door bass speaker | 4H |
| H4/3 | Left rear door speaker | 4H |
| H4/4 | Right rear door speaker | 4H |
| H4/54 | Left rear surround speaker | 4J |
| H4/57 | Right rear surround speaker | 4K |
| LIN E1 | Steering LIN | 18K |
| MOST | Media Oriented System Transport | 6H |
| MOST | Media Oriented System Transport | 9L |
| MOST | Media Oriented System Transport | 11G |
| N40/3 | Sound system amplifier control unit | 6J |
| N73 | Electronic ignition switch control unit | 13B |
| N80 | Steering column module control unit | 16J |
| N87/3 | Digital Audio Broadcasting control unit | 11K |
| S110 | Left multifunction steering wheel button group | 20K |
| S111 | Right multifunction steering wheel button group | 21K |
