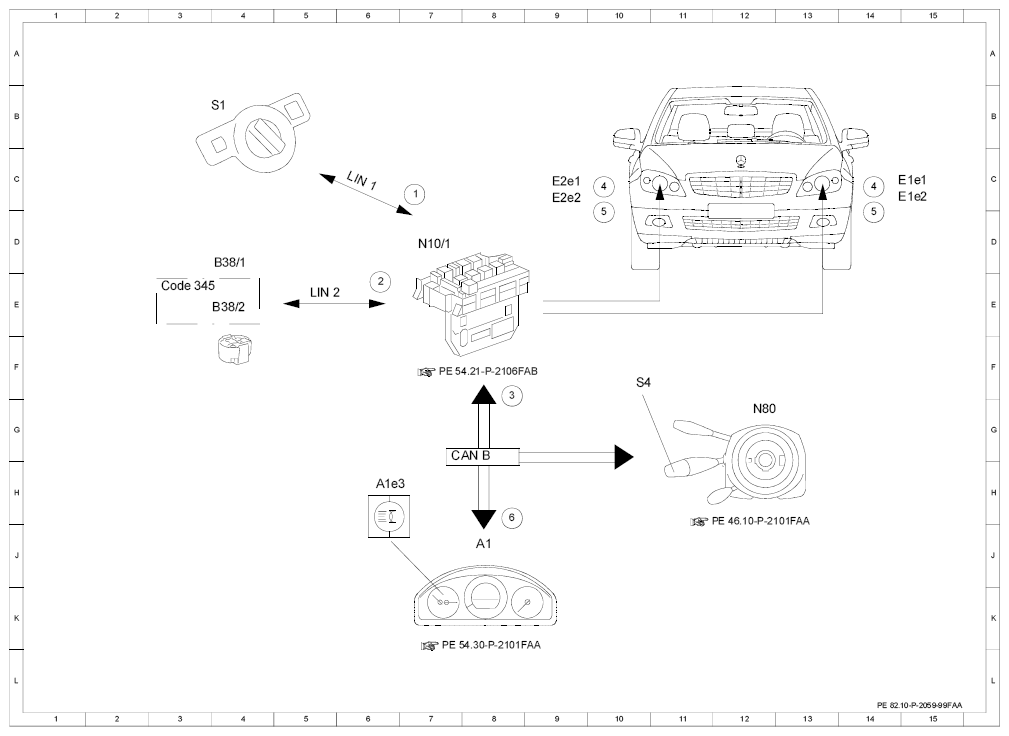

Electrical function schematic for driving light actuation - PE82.10-P-2059-99FAA
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C63, 2010 Mercedes-Benz C350, and 2009 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
except CODE (614) Bi-xenon headlamp unit
except CODE (622) Intelligent Light System (right-hand traffic) up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 7C |
| 2 | Ambient brightness, signal | 6E |
| 3 | Combination switch, status | 8G |
| 4 | High beams, actuation | 10C |
| 4 | High beams, actuation | 14C |
| 5 | Low beams, actuation | 10D |
| 5 | Low beams, actuation | 14D |
| 6 | High beam indicator lamp, actuation | 8J |
| A1 | Instrument cluster | 8J |
| A1e3 | High beam indicator lamp | 6H |
| B38/1 | Light sensor | 3D |
| B38/2 | Rain/light sensor | 3E |
| CAN B | Interior CAN | 7H |
| Code 345 | Rain sensor | 3E |
| E1e1 | Left high beam | 14C |
| E1e2 | Left low beam | 14C |
| E2e1 | Right high beam | 9C |
| E2e2 | Right low beam | 9C |
| LIN 1 | Instrument panel LIN | 6C |
| LIN 2 | Wiper/inside rearview mirror LIN | 5E |
| N10/1 | Front SAM control unit with fuse and relay module | 7D |
| N80 | Steering column module control unit | 12G |
| S1 | Exterior lights switch | 3B |
| S4 | Combination switch | 10F |
