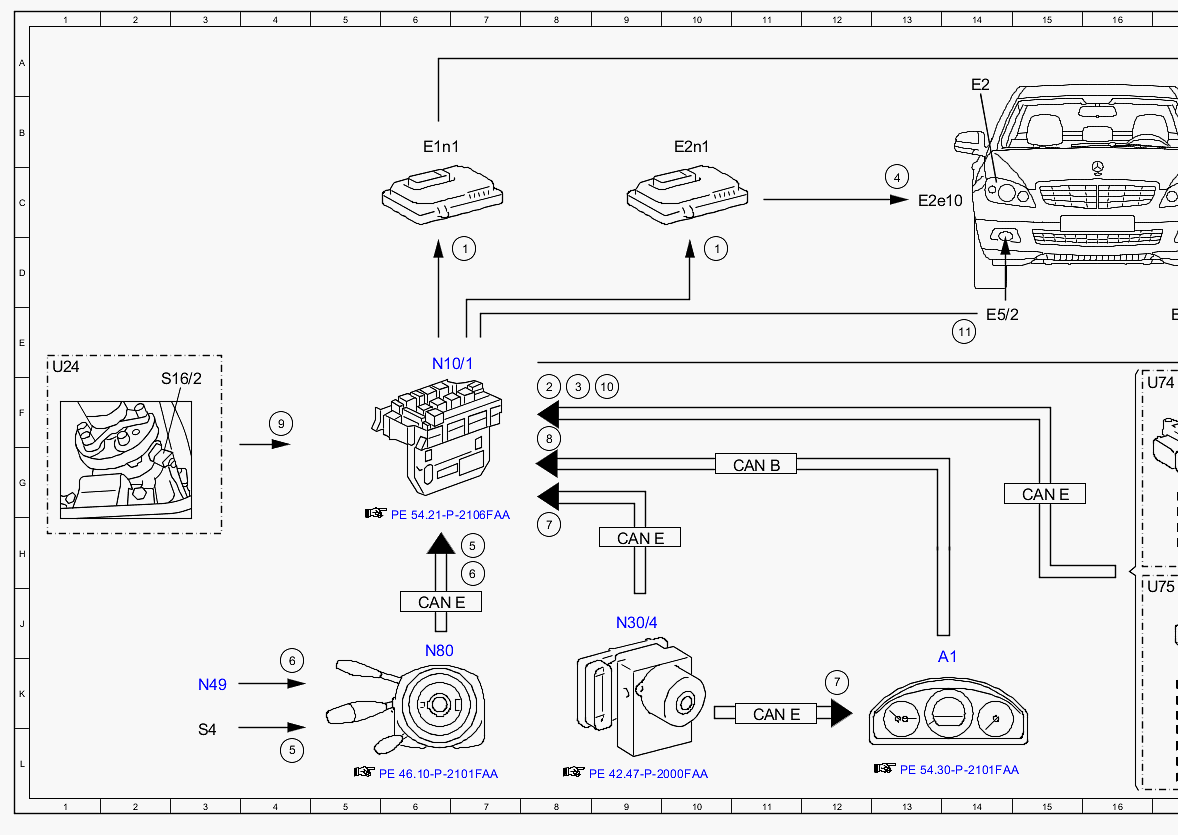

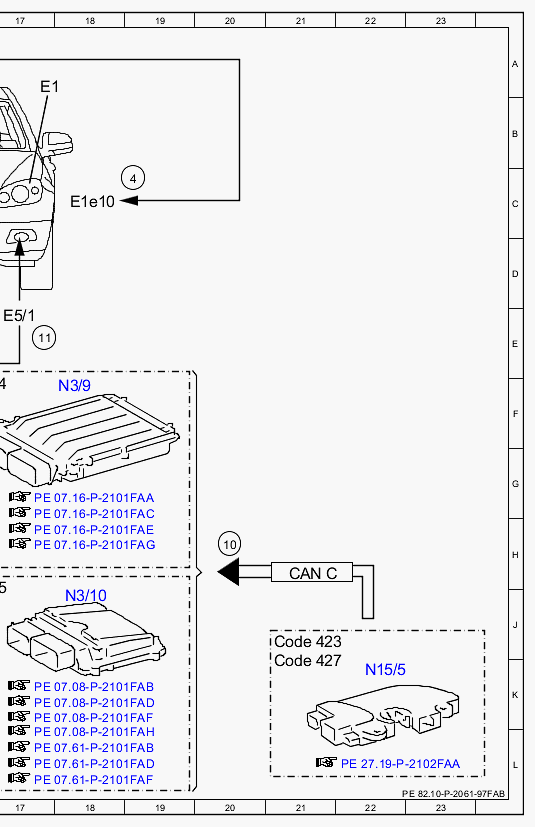

Electrical function schematic for cornering illumination - PE82.10-P-2061-97FAB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C63, 2010 Mercedes-Benz C350, and 2009 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 up to 30.11.09 with CODE (619) Cornering illumination as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Low beams, request | 7D |
| 1 | Low beams, request | 10D |
| 2 | Engine running, signal | 8F |
| 3 | Drivetrain operational, signal | 8F |
| 4 | Xenon bulb with integrated ignition module, actuation | 13C |
| 4 | Xenon bulb with integrated ignition module, actuation | 19C |
| 5 | Combination switch, status | 4L |
| 5 | Combination switch, status | 7H |
| 6 | Steering angle, signal | 4K |
| 6 | Steering angle, signal | 7H |
| 7 | Wheel speed, signal | 8H |
| 7 | Wheel speed, signal | 12K |
| 8 | Vehicle speed, signal | 8F |
| 9 | Backup lamp switch, status | 4F |
| 10 | Selector lever position, status | 20H |
| 10 | Selector lever position, status | 9F |
| 11 | Front fog lamps, actuation | 14E |
| 11 | Front fog lamps, actuation | 17E |
| A1 | Instrument cluster | 13K |
| CAN B | Interior CAN | 11G |
| CAN C | Drivetrain CAN | 21H |
| CAN E | Chassis CAN | 6J |
| CAN E | Chassis CAN | 15G |
| CAN E | Chassis CAN | 9H |
| CAN E | Chassis CAN | 11K |
| Code 423 | 5-speed automatic transmission | 21J |
| Code 427 | 7-speed automatic transmission | 21K |
| E1 | Left front lamp unit | 17A |
| E1e10 | Left xenon bulb with integrated ignition module | 18C |
| E1n1 | Left xenon lamp control unit | 6B |
| E2 | Right front lamp unit | 14A |
| E2e10 | Right xenon bulb with integrated ignition module | 13C |
| E2n1 | Right xenon light control unit | 10B |
| E5/1 | Left fog lamp | 17E |
| E5/2 | Right fog lamp | 14E |
| N10/1 | Front SAM control unit with fuse and relay module | 6E |
| N15/5 | Electronic selector lever module control unit | 22K |
| N3/10 | ME-SFI [ME] control unit | 18J |
| N3/9 | CDI control unit | 18F |
| N30/4 | Electronic Stability program control unit | 9J |
| N49 | Steering angle sensor | 3K |
| N80 | Steering column module control unit | 6J |
| S16/2 | Backup lamp switch | 3F |
| S4 | Combination switch | 3L |
| U24 | Valid for manual transmission | 1E |
| U74 | Valid for diesel engines | 16F |
| U75 | Valid for gasoline engines | 16J |
