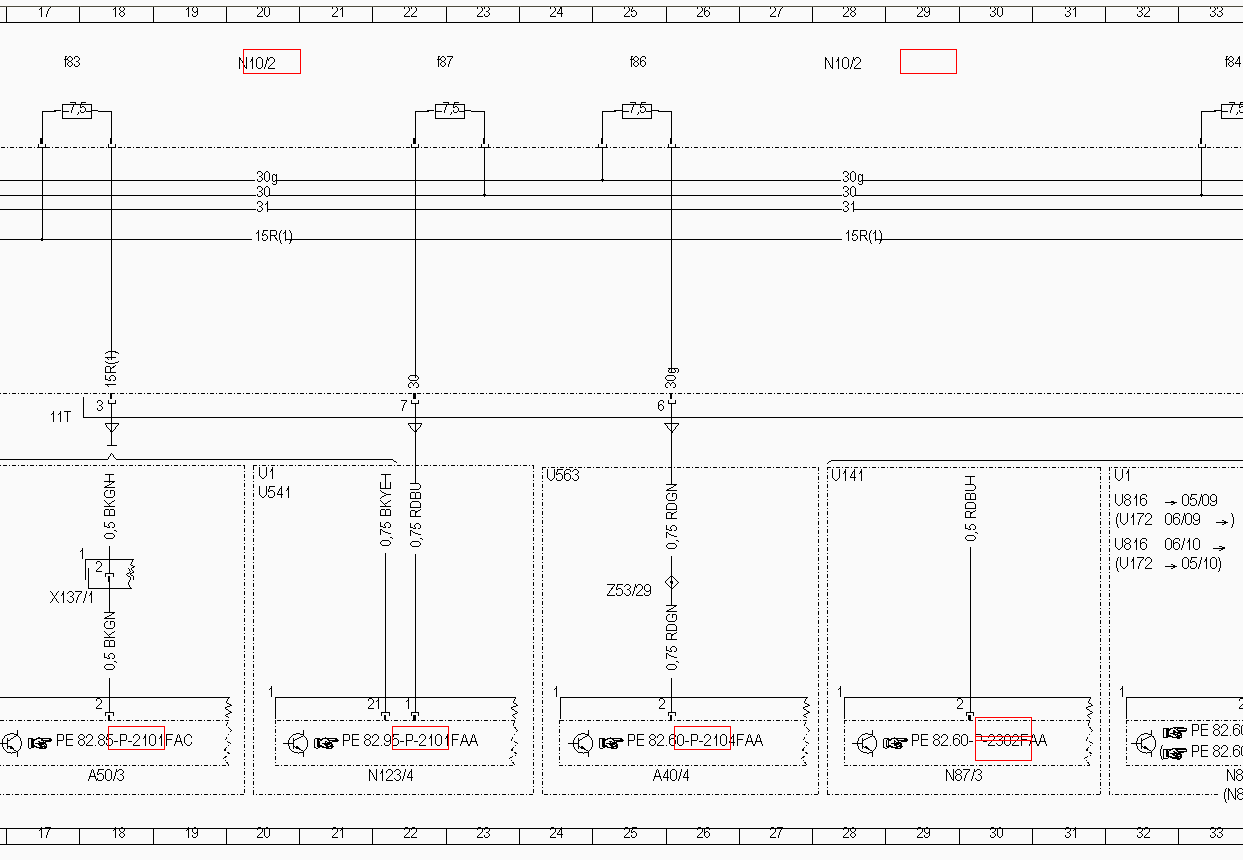

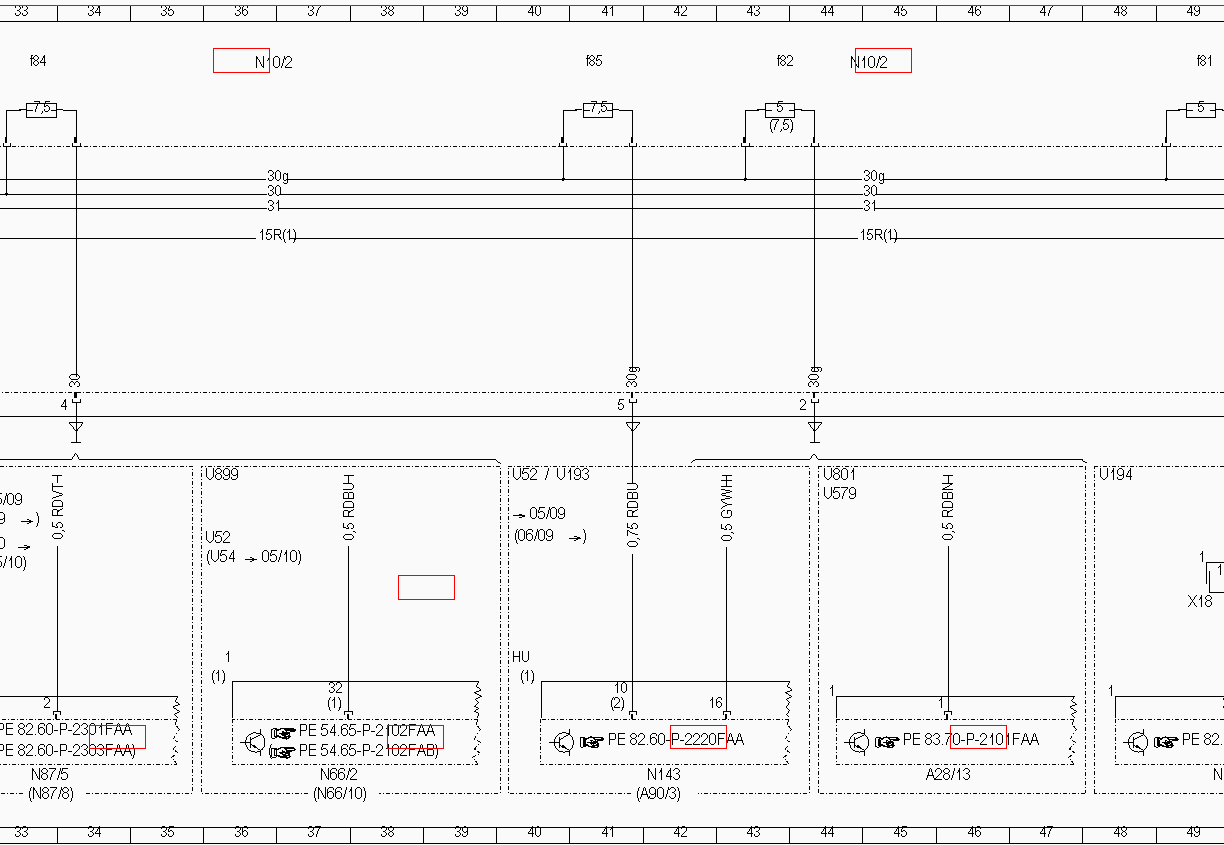

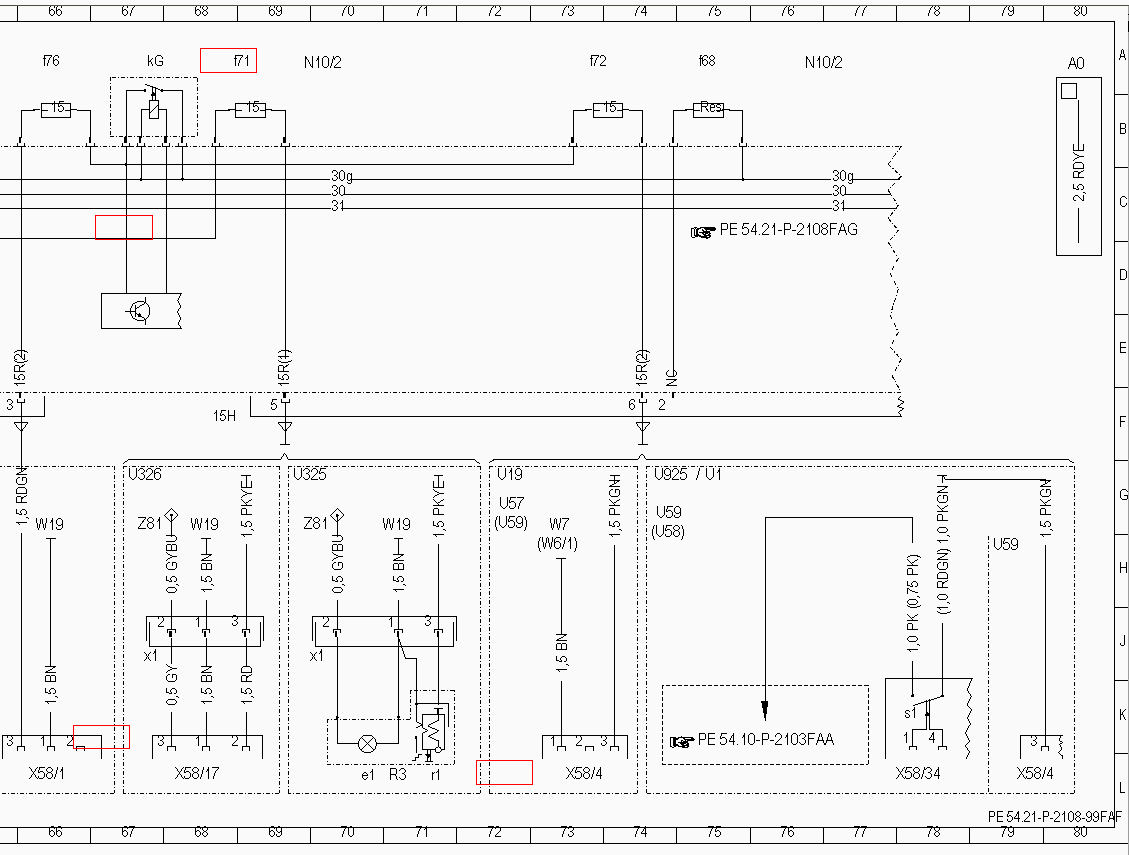

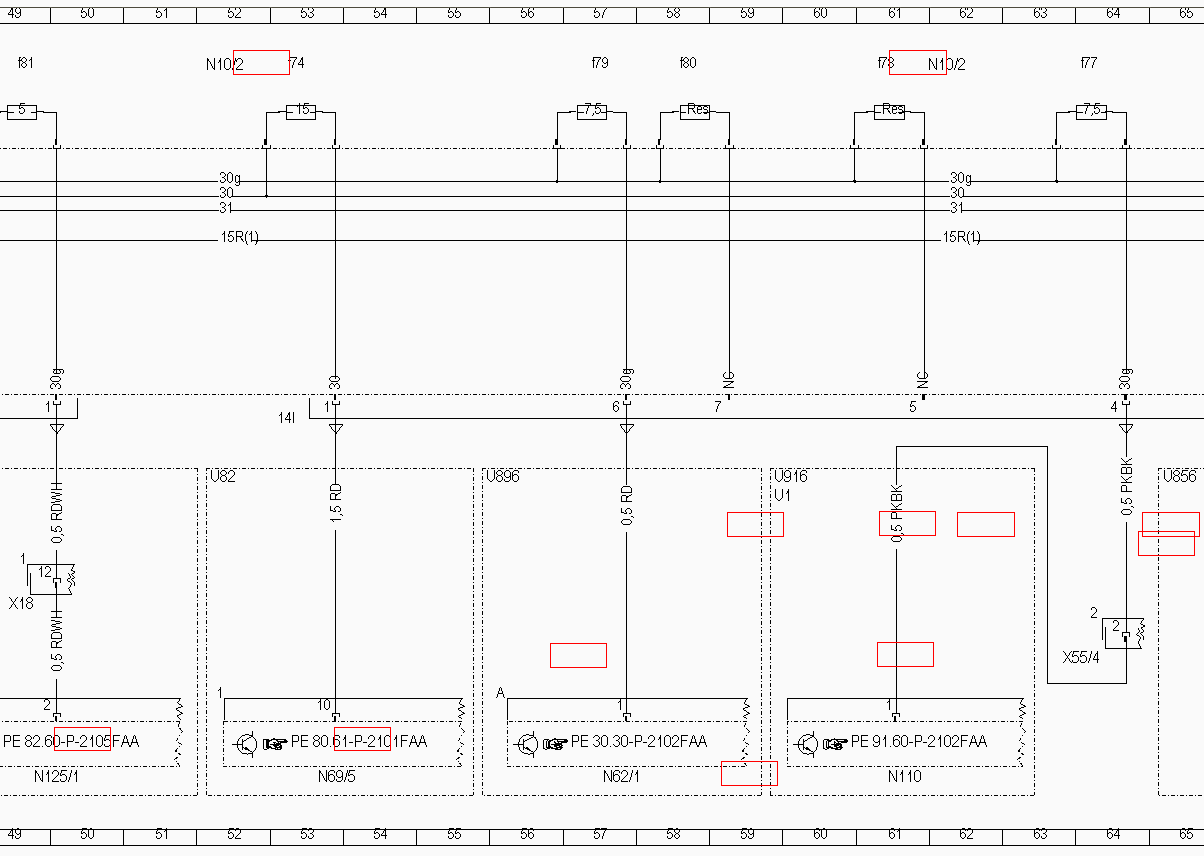

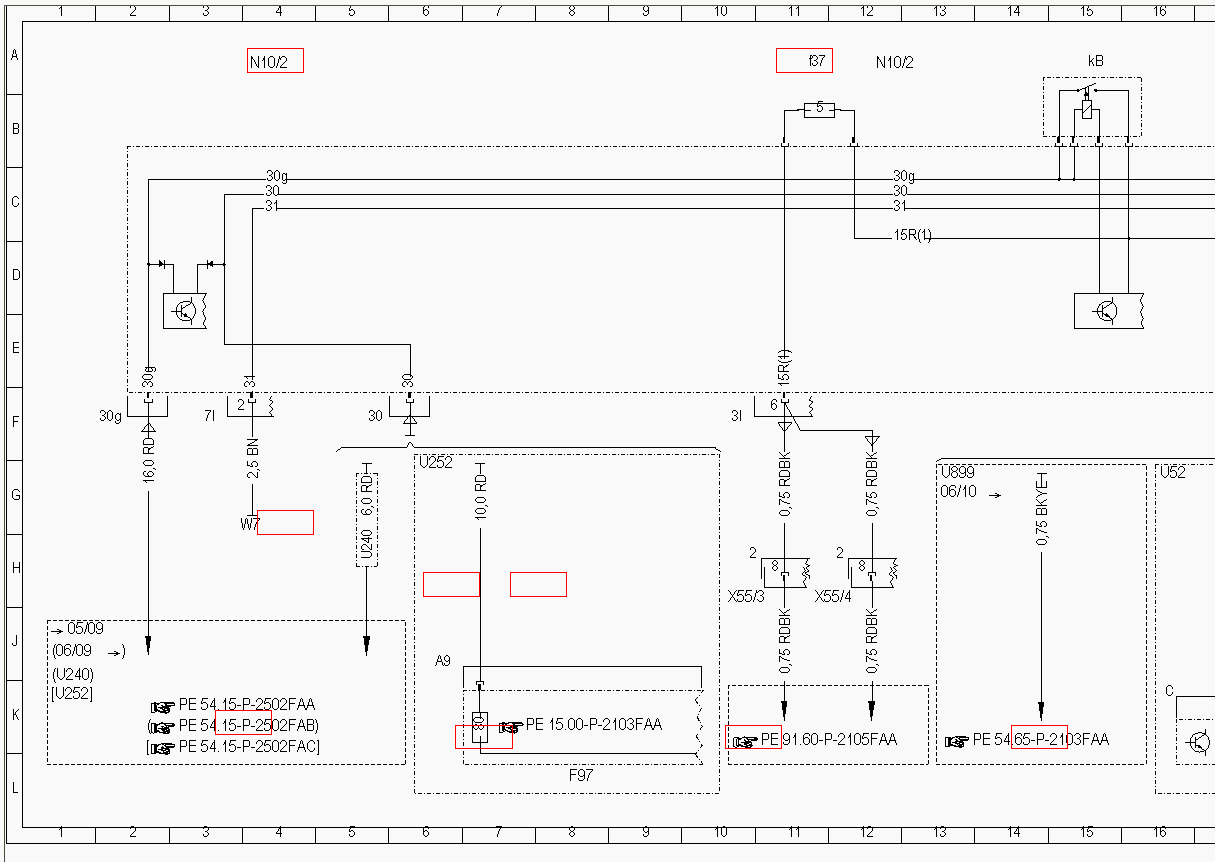

Wiring diagram for rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-99FAF
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3/9 Sheet 6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 64L |
| A50/3 | Electronic Toll Collection control unit | 11L |
| F32 | Front electrical prefuse box | 3L |
| F32f106 | Prefuse 106 | 1K |
| F32f90 | Prefuse 90 | 2K |
| N10/2 | Rear SAM control module with fuse and relay module | 4A |
| N10/2 | Rear SAM control module with fuse and relay module | 12A |
| N10/2 | Rear SAM control module with fuse and relay module | 20A |
| N10/2 | Rear SAM control module with fuse and relay module | 28A |
| N10/2 | Rear SAM control module with fuse and relay module | 36A |
| N10/2 | Rear SAM control module with fuse and relay module | 44A |
| N10/2 | Rear SAM control module with fuse and relay module | 53A |
| N10/2 | Rear SAM control module with fuse and relay module | 59A |
| N10/2f37 | Fuse 37 | 7A |
| N10/2f68 | Fuse 68 | 58A |
| N10/2f71 | Fuse 71 | 54A |
| N10/2f72 | Fuse 72 | 56A |
| N10/2f74 | Fuse 74 | 37A |
| N10/2f75 | Fuse 75 | 39A |
| N10/2f76 | Fuse 76 | 50A |
| N10/2f77 | Fuse 77 | 48A |
| N10/2f78 | Fuse 78 | 47A |
| N10/2f79 | Fuse 79 | 41A |
| N10/2f80 | Fuse 80 | 45A |
| N10/2f81 | Fuse 81 | 34A |
| N10/2f82 | Fuse 82 | 35A |
| N10/2f83 | Fuse 83 | 14A |
| N10/2f84 | Fuse 84 | 21A |
| N10/2f85 | Fuse 85 | 29A |
| N10/2f86 | Fuse 86 | 25A |
| N10/2f87 | Fuse 87 | 15A |
| N10/2kB | Circuit 15R relay (1) | 8A |
| N10/2kG | Circuit 15R relay (2) | 52A |
| N110 | Weight Sensing System (WSS) control unit | 46L |
| N123/4 | Emergency call system control unit | 14L |
| N125/1 | Media interface control unit | 34L |
| N143 | TV tuner control unit | 30L |
| N62/1 | Radar sensors control unit | 42L |
| N66/2 | Reverse camera control module | 26L |
| N69/5 | KEYLESS GO control unit | 38L |
| N87/3 | Digital Audio Broadcasting control unit | 18L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 22L |
| R3 | Front cigarette lighter with ashtray illumination | 54L |
| R3e1 | Ashtray illumination | 54L |
| R3r1 | Cigarette lighter heating element | 55L |
| R3x1 | Front cigarette lighter with ashtray illumination electrical connector | 53J |
| U1 | Valid for USA | 13G |
| U1 | Valid for USA | 21G |
| U1 | Valid for USA | 44G |
| U141 | Valid for Digital Audio Broadcasting | 17G |
| U193 | Valid for TV and Video | 28H |
| U194 | Valid for AUX jack | 33G |
| U52 | Valid for Japan | 9G |
| U52 | Valid for Japan | 25G |
| U541 | Valid for TELEAID emergency call system | 13G |
| U57 | Valid for model 204.2 | 56G |
| U816 | Valid for satellite digital audio radio (SDAR) | 21G |
| U82 | Valid for KEYLESS GO | 36G |
| U856 | Valid for rear socket | 50G |
| U896 | Valid for City Assist System | 40G |
| U899 | Valid for backup camera | 25H |
| U916 | Valid for weight sensing system (WSS) | 44G |
| W19 | Right front seat crossmember ground point | 51H |
| W19 | Right front seat crossmember ground point | 54H |
| W7 | Right wheelhouse trunk ground point | 4H |
| W7 | Right wheelhouse trunk ground point | 56H |
| X137/1 | VICS and ETC power supply electrical connector | 10H |
| X18/67 | Media interface electrical connector | 34H |
| X55/3 | Driver seat contacting strip | 6H |
| X55/4 | Front passenger seat contacting strip | 7H |
| X55/4 | Front passenger seat contacting strip | 48J |
| X58/1 | Vehicle interior power outlet | 50L |
| X58/4 | Cargo area socket | 56L |
| Z81 | Circuit 58d connector sleeve | 53H |
