Wiring diagram, special vehicle multifunction control unit (SVMCU [MSS]) - PE54.21-P-2105-99FAA

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2 with CODE 965 (Electrical preinstallation, rental vehicles) Control unit N26/9

Code: Designation: Position:
A0 Explanation of color codes 56 L
A49/5x1 Radio data transmission keyboard electrical connector 1 42 L
A49/5x2 Antenna electrical connector, trunk 39 L
A49/5x3 Radio data transmission keyboard electrical connector 2 45 L
A49x1 Antenna electrical connector, glove compartment 35 L
A49x2 Two-way radio electrical connector 31 L
A50x1 Taximeter electrical connector 12 L
A50x1 Taximeter electrical connector 47 L
CAN B Interior CAN 19 K
F33 Rear prefuse box 3 L
F33f112 Prefuse 112 1 K
F33f115 Prefuse 115 5 K
H6 Taxi two-way radio speaker 37 L
N26/9 Special-purpose vehicle multifunction control unit 4 A
N26/9 Special-purpose vehicle multifunction control unit 11 A
N26/9 Special-purpose vehicle multifunction control unit 20 A
N26/9 Special-purpose vehicle multifunction control unit 28 A
N26/9 Special-purpose vehicle multifunction control unit 36 A
N26/9 Special-purpose vehicle multifunction control unit 44 A
N26/9 Special-purpose vehicle multifunction control unit 51 A
N30/4 Electronic Stability Program control unit 15 L
S62/5 Taxi emergency alarm system "Delete" button 24 L
S62/6 Taxi emergency alarm system "Trigger" button 27 L
U12 Valid for left-hand steering 36 F
U121 Valid for taxi emergency alarm system 21 D
U13 Valid for right-hand steering 36 F
U671 Valid for taximeter preinstallation 10 D
U671 Valid for taximeter preinstallation 47 H
U683 Valid for preinstallation for two-way radio system in glove compartment 29 F
U763 Valid for preinstallation for two-way radio system in trunk 38 F
U765 Valid for taxi peripheral device preinstallation 49 F
U766 Valid for international roof sign preinstallation 6 F
U767 Valid for antenna preinstallation 34 G
U767 Valid for antenna preinstallation 38 G
U768 Valid for roof sign preinstallation 8 F
W7/1 Right taillamp trunk ground point 3 E
W7/1 Right taillamp trunk ground point 13 H
W7/1 Right taillamp trunk ground point 23 G
W7/1 Right taillamp trunk ground point 27 E
W7/1 Right taillamp trunk ground point 31 H
W7/1 Right taillamp trunk ground point 43 H
W7/1 Right taillamp trunk ground point 52 H
X1/44 Taxi peripheral device electrical connector 50 L
X1/45 Two-way radio speaker electrical connector 32 H
X1/45 Two-way radio speaker electrical connector 40 H
X30/33 Right vehicle floor interior CAN voltage distributor electrical connector 19 L
X35/1 Left front door electrical connector 36 H
X35/2 Right front door electrical connector 36 H
X40 Roof sign lamp electrical connector 8 L
X40/2 International roof sign electrical connector 7 L
X42/8 Taxi emergency alarm system "Trigger" button electrical connector 26 H
Z11 Connector sleeve 3 in wiring harness 8 E
Z12 Connector sleeve 4 in wiring harness 9 E
Z17 Connector sleeve 9 30 E
Z18 Connector sleeve 10 31 E
Z4/3 Circuit 30 connector sleeve 10 H
Z7 Circuit 30 connector sleeve 1 E
Z7/69 Two-way radio circuit 30 connector sleeve 29 E
Z87/20 Taxi emergency alarm system button connector sleeve 22 L
Z87/20 Taxi emergency alarm system button connector sleeve 25 L
Z87/20 Taxi emergency alarm system button connector sleeve 26 L

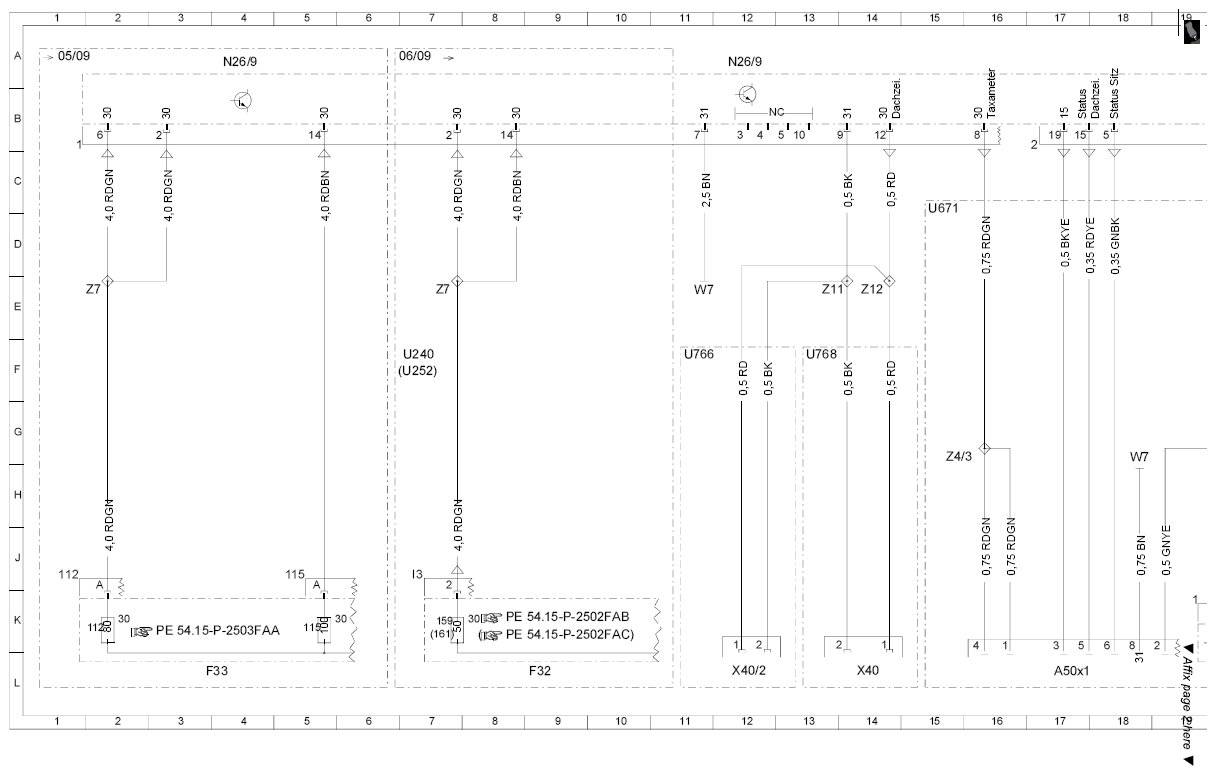

Fig 1: Special Vehicle Multifunction Control Unit (SVMCU [MSS]) - Wiring Diagram (1 Of 4)
G07531497Courtesy of MERCEDES-BENZ USA

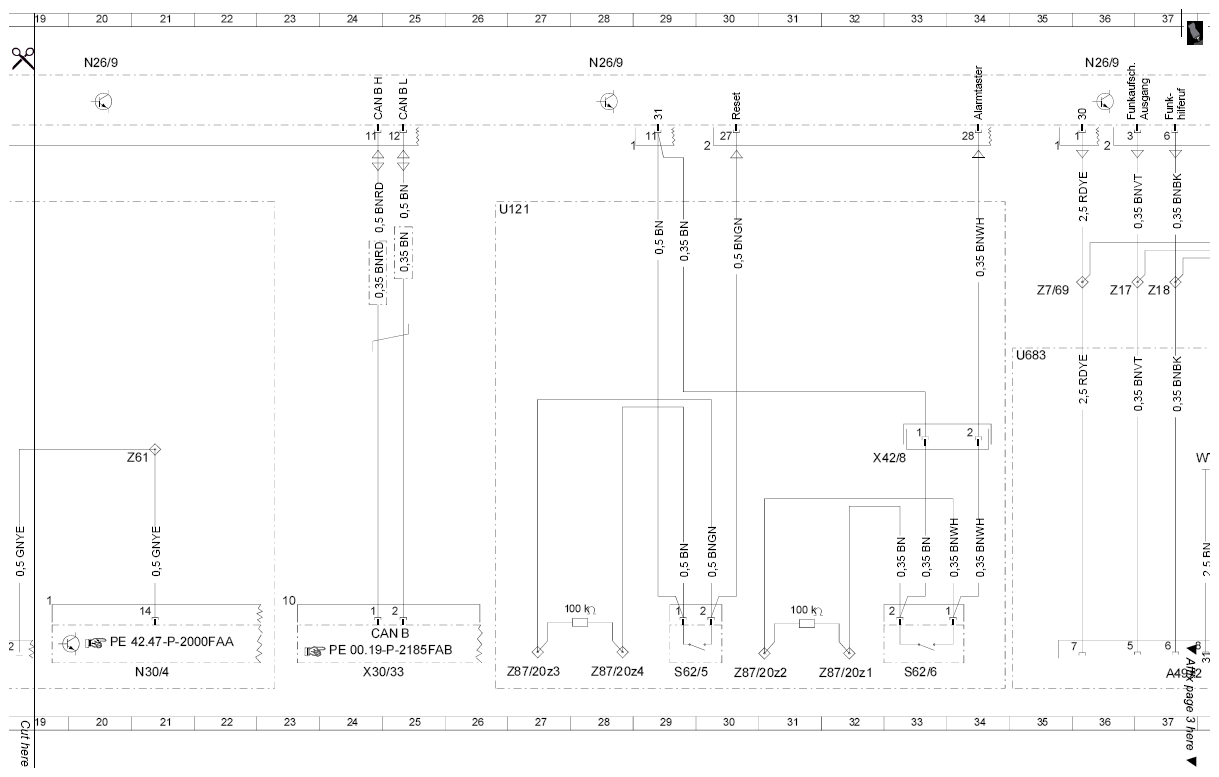

Fig 2: Special Vehicle Multifunction Control Unit (SVMCU [MSS]) - Wiring Diagram (2 Of 4)
G07531498Courtesy of MERCEDES-BENZ USA

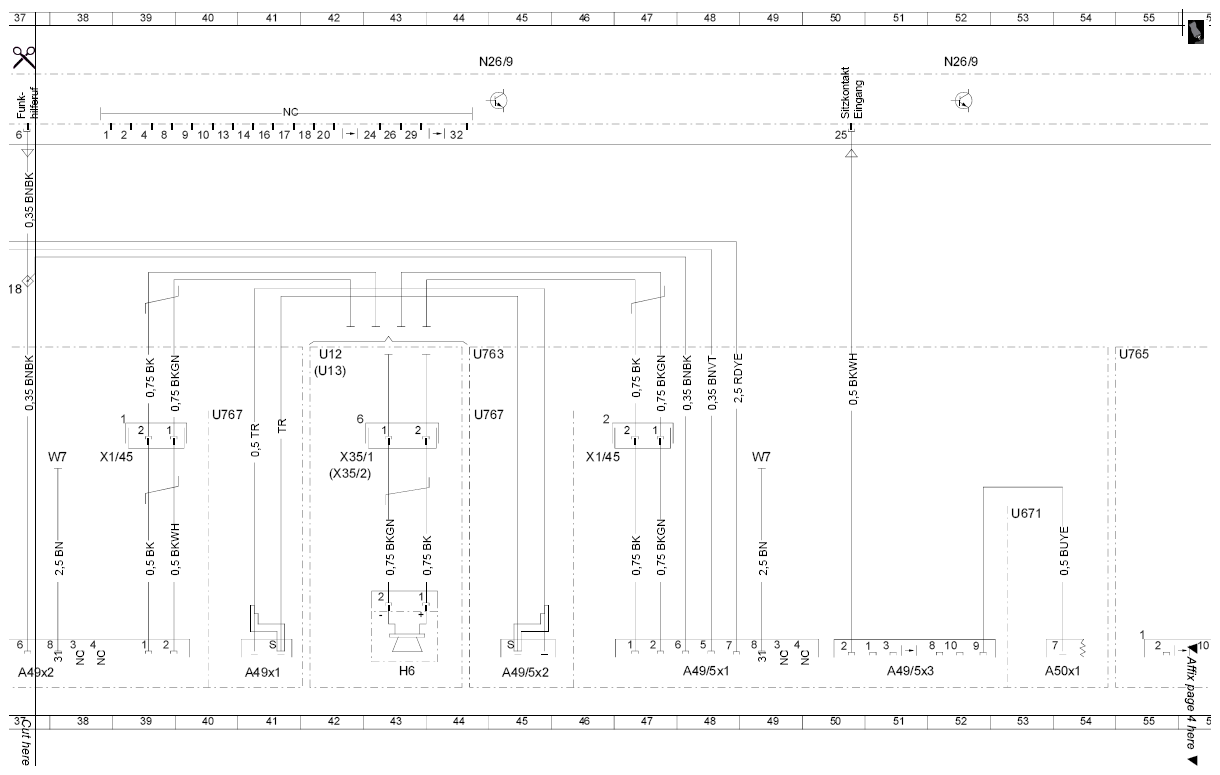

Fig 3: Special Vehicle Multifunction Control Unit (SVMCU [MSS]) - Wiring Diagram (3 Of 4)
G07531499Courtesy of MERCEDES-BENZ USA

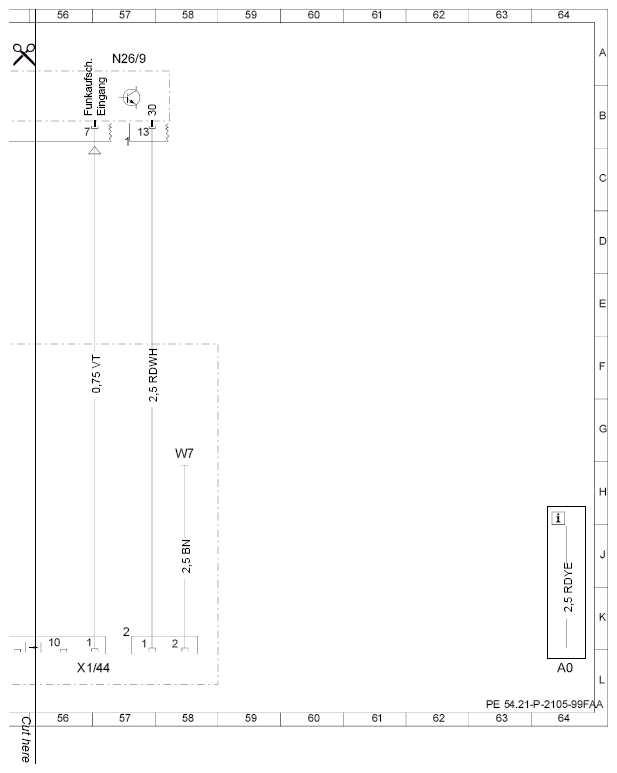

Fig 4: Special Vehicle Multifunction Control Unit (SVMCU [MSS]) - Wiring Diagram (4 Of 4)
G07531500Courtesy of MERCEDES-BENZ USA
