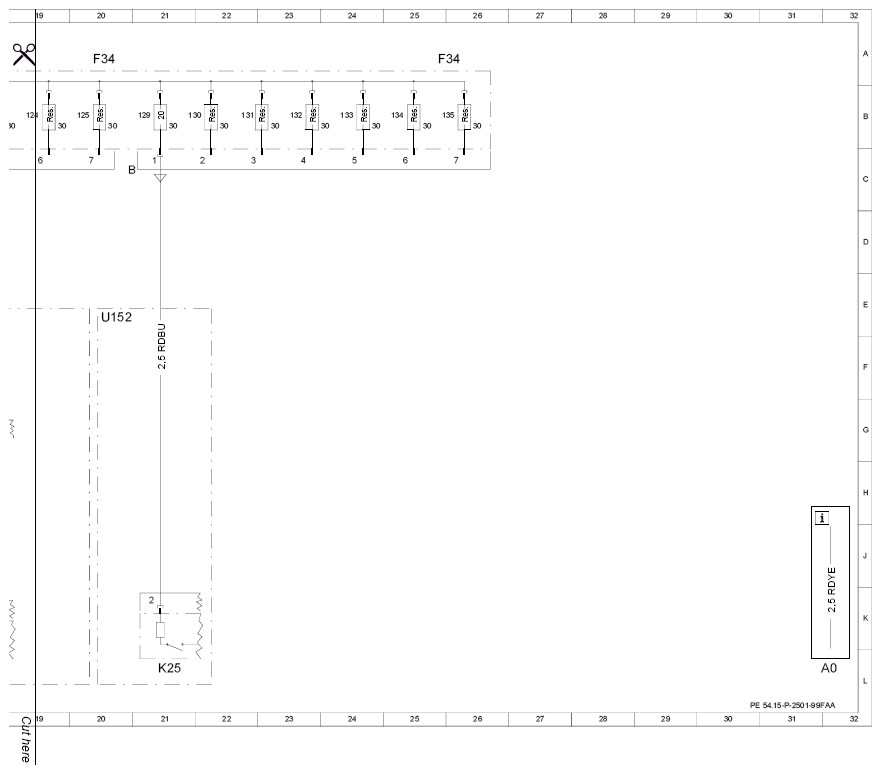

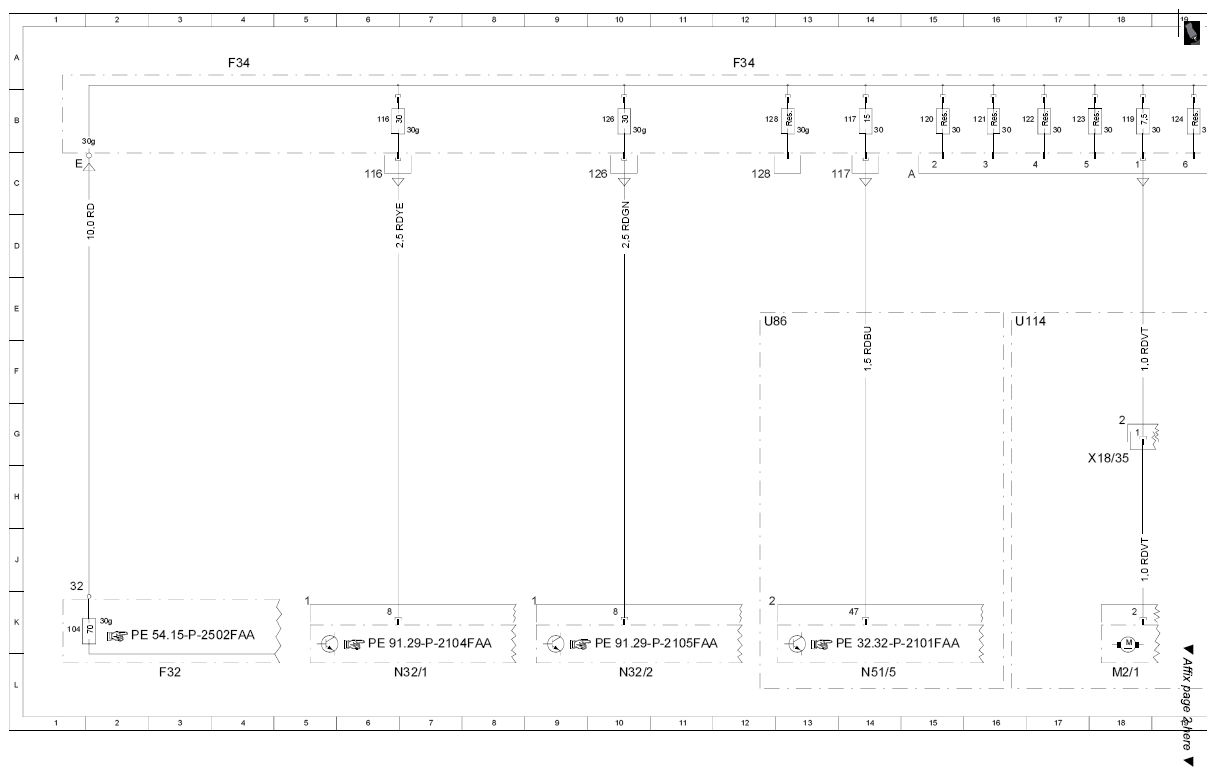

Wiring diagram of interior fuse box (F34) - PE54.15-P-2501-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 31 L |
| F32 | Front electrical prefuse box | 3 L |
| F32f104 | Prefuse 104 | 1 K |
| F34 | Interior fuse box | 4 A |
| F34 | Interior fuse box | 12 A |
| F34 | Interior fuse box | 20 A |
| F34 | Interior fuse box | 28 A |
| F34f116 | Fuse 116 | 6 B |
| F34f117 | Fuse 117 | 10 B |
| F34f119 | Fuse 119 | 18 B |
| F34f120 | Fuse 120 | 19 B |
| F34f121 | Fuse 121 | 20 B |
| F34f122 | Fuse 122 | 21 B |
| F34f123 | Fuse 123 | 22 B |
| F34f124 | Fuse 124 | 22 B |
| F34f125 | Fuse 125 | 23 B |
| F34f126 | Fuse 126 | 14 B |
| F34f129 | Fuse 129 | 24 B |
| F34f130 | Fuse 130 | 25 B |
| F34f131 | Fuse 131 | 26 B |
| F34f132 | Fuse 132 | 27 B |
| F34f133 | Fuse 133 | 27 B |
| F34f134 | Fuse 134 | 28 B |
| F34f135 | Fuse 135 | 29 B |
| M2/1 | Rear blower motor | 18 L |
| N32/1 | Driver seat control unit | 6 L |
| N32/2 | Front passenger seat control unit | 14 L |
| N51/5 | Adaptive damping system control unit | 10 L |
| U114 | Valid for 3-zone THERMOTRONIC | 16 E |
| U12 | Valid for left-hand steering | 16 H |
| U13 | Valid for right-hand steering | 16 J |
| U86 | Valid for adaptive damping system and ESP | 9 E |
| W15/5 | Left front footwell ground point | 17 L |
| W15/7 | Right front footwell ground point | 17 L |
| X18/35 | Instrument panel and vehicle floor electrical connector | 17 H |
