Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99FAE

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/3/9 Sheet 5

Code: Designation: Position:
A0 Explanation of color codes 72 L
A2 Radio 24 L
A2/56 Radio with auto pilot system 24 L
A40/3 COMAND control unit 28 L
A40/8 Audio/COMAND display 6 L
A40/9 Audio/COMAND control panel 33 L
A89 DISTRONIC electric controller unit 37 L
M33 AIR pump 15 L
N10/1 Front SAM control module with fuse and relay module 3 A
N10/1 Front SAM control module with fuse and relay module 12 A
N10/1 Front SAM control module with fuse and relay module 20 A
N10/1 Front SAM control module with fuse and relay module 28 A
N10/1 Front SAM control module with fuse and relay module 36 A
N10/1 Front SAM control module with fuse and relay module 44 A
N10/1 Front SAM control module with fuse and relay module 52 A
N10/1 Front SAM control module with fuse and relay module 60 A
N10/1 Front SAM control module with fuse and relay module 67 A
N10/1f11 Fuse 11 4 A
N10/1f13 Fuse 13 2 A
N10/1f16 Fuse 16 31 A
N10/1f23 Fuse 23 57 A
N10/1f24 Fuse 24 10 A
N10/1f32 Fuse 32 16 A
N10/1f35 Fuse 35 41 A
N10/1f36 Fuse 36 5 A
N10/1kP Secondary air injection relay 15 A
N10/2 Rear SAM control module with fuse and relay module 45 L
N10/2 Rear SAM control module with fuse and relay module 57 L
N118 Fuel pump control module 41 L
N3/10 ME-SFI [ME] control module 17 L
N3/10 ME-SFI [ME] control module 49 L
N3/9 CDI control module 10 L
N3/9 CDI control module 53 L
N3/9 CDI control module 61 L
N3/9 CDI control module 65 L
N80 Steering column module control unit 2 L
U504 Valid for DISTRONIC 35 G
U54 Valid for all except Japan 27 H
U631 Valid for COMAND 7 H
U739 Valid for gasoline engine 271 47 G
U739 Valid for gasoline engine 271 67 G
U74 Valid for diesel vehicles 12 G
U74 Valid for diesel vehicles 43 G
U74 Valid for diesel vehicles 55 G
U740 Valid for diesel engine 646 8 G
U740 Valid for diesel engine 646 51 G
U740 Valid for diesel engine 646 63 G
U740 Valid for diesel engine 646 69 G
U75 Valid for gasoline engines 39 G
U801 Valid for mobile phone preinstallation with universal interface 20 G
U819 Valid for gasoline engine 272 13 G
U819 Valid for gasoline engine 272 47 G
U819 Valid for gasoline engine 272 67 G
U865 Valid for Audio 20 radio 5 H
U865 Valid for Audio 20 radio 22 H
U866 Valid for Audio 50 5 H
U866 Valid for Audio 50 22 H
U880 Valid for diesel engine 642 51 G
U880 Valid for diesel engine 642 59 G
U880 Valid for diesel engine 642 69 G
W11w2 Right cylinder bank ground point (engine) 15 H
W15/5 Left front footwell ground point 20 H
X11/4 Diagnostic connector 31 L
X26 Interior and engine wiring harness electrical connector 12 H
X26 Interior and engine wiring harness electrical connector 13 H
X26 Interior and engine wiring harness electrical connector 67 H
X26 Interior and engine wiring harness electrical connector 69 H
X26/2 Engine wiring harness electrical connector 14 H
X39/37 Mobile phone electrical connector 20 L
Z7/35 Circuit 87 M1e connector sleeve 13 L
Z7/35 Circuit 87 M1e connector sleeve 61 H
Z7/35 Circuit 87 M1e connector sleeve 68 L
Z7/38 Circuit 87 M1i connector sleeve 67 L
Z7/5 Circuit 87 connector sleeve 12 L
Z7/5 Circuit 87 connector sleeve 69 L
Z80 Cross section reduction connector sleeve 57 H

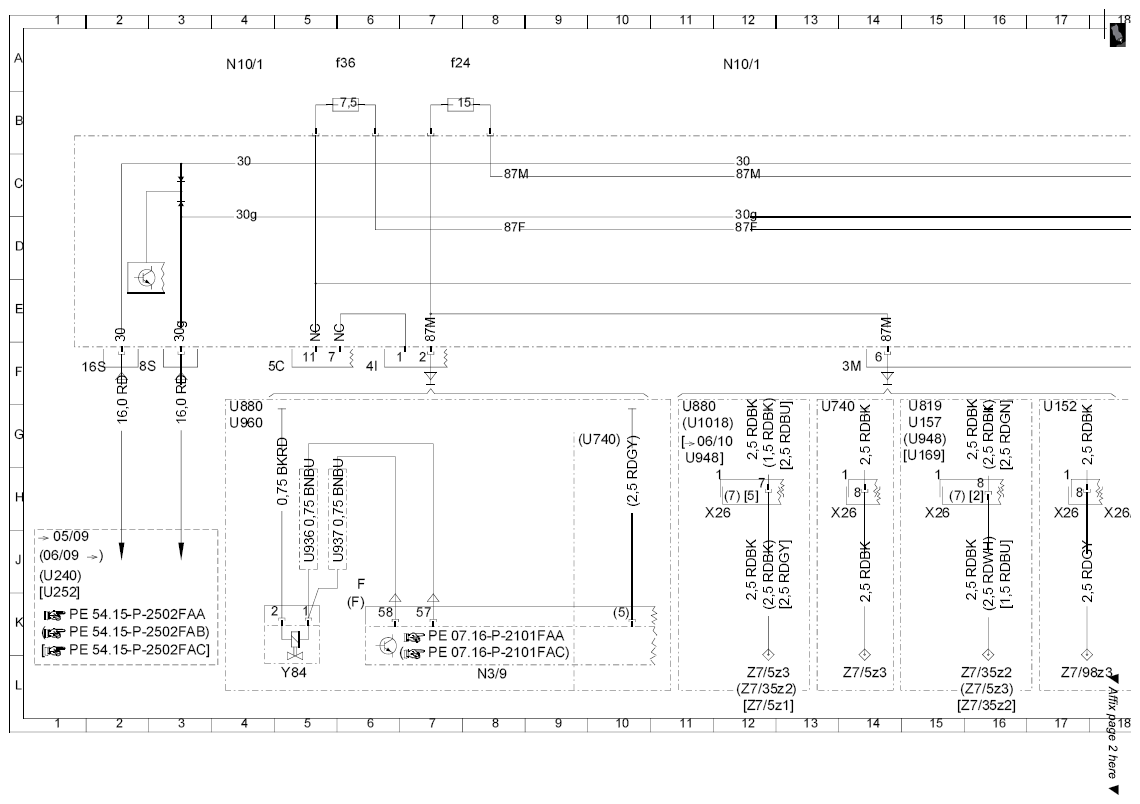

Fig 1: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (1 Of 5)
G07531555Courtesy of MERCEDES-BENZ USA

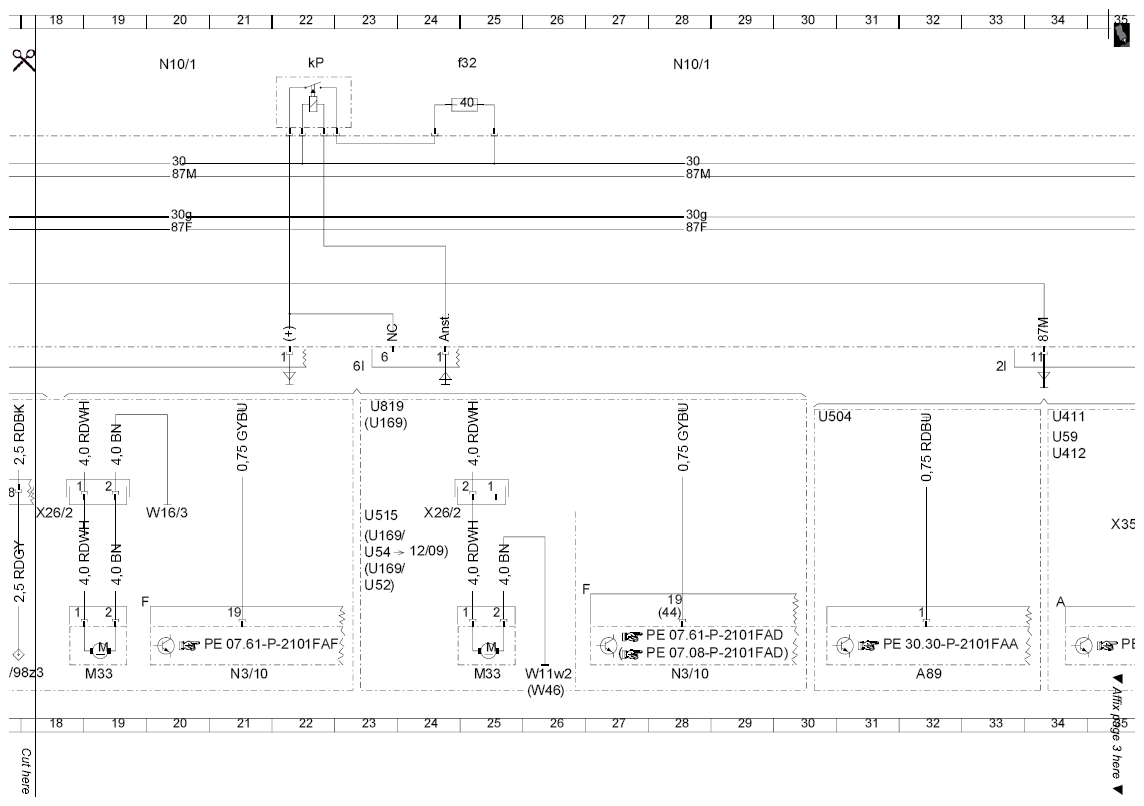

Fig 2: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (2 Of 5)
G07531556Courtesy of MERCEDES-BENZ USA

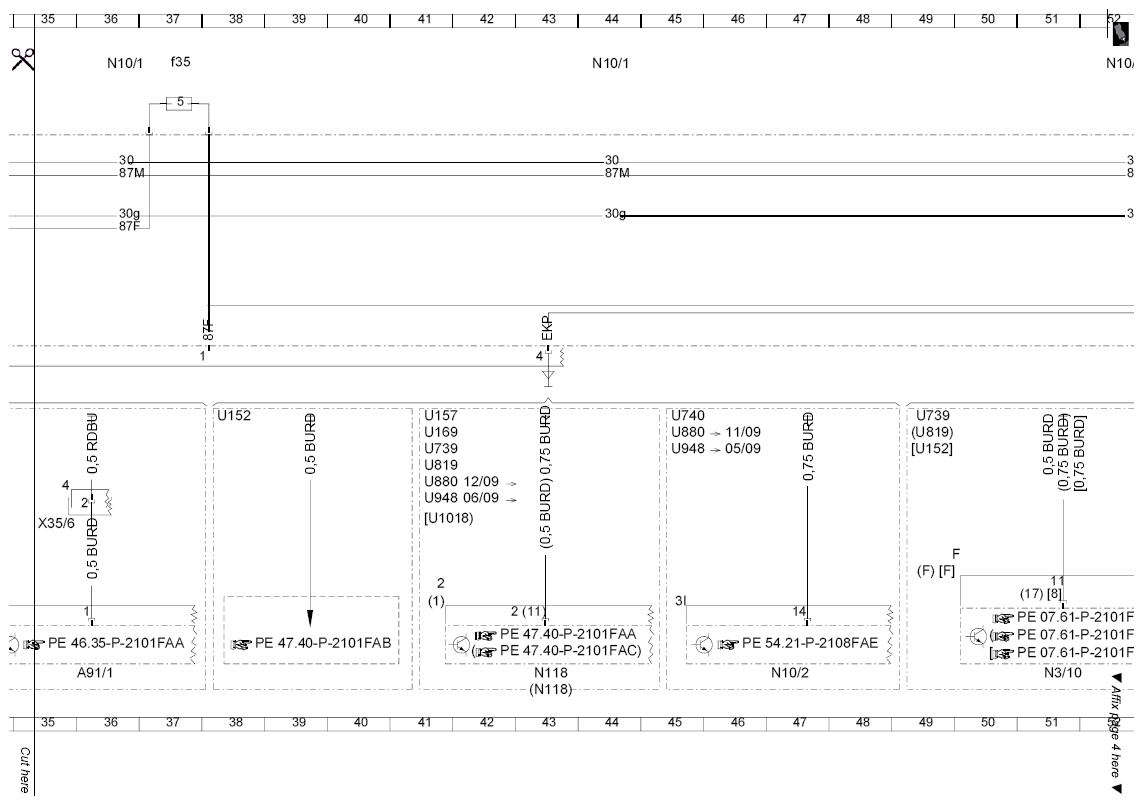

Fig 3: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (3 Of 5)
G07531557Courtesy of MERCEDES-BENZ USA

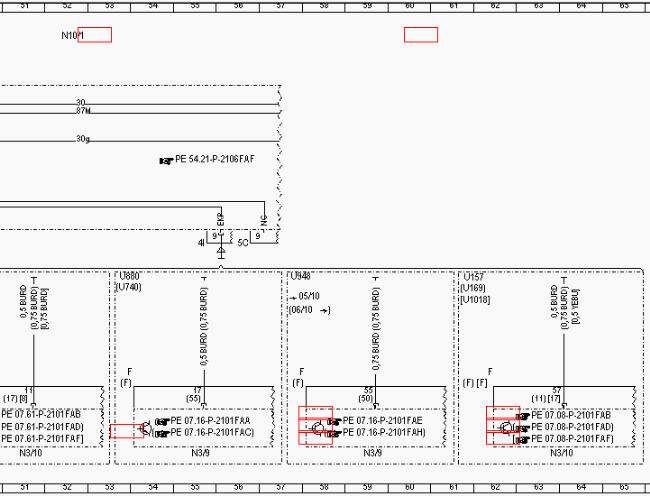

Fig 4: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (4 Of 5)
G00532204Courtesy of MERCEDES-BENZ USA
Fig 5: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (5 Of 5)
G00532205Courtesy of MERCEDES-BENZ USA
