Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99FAC
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

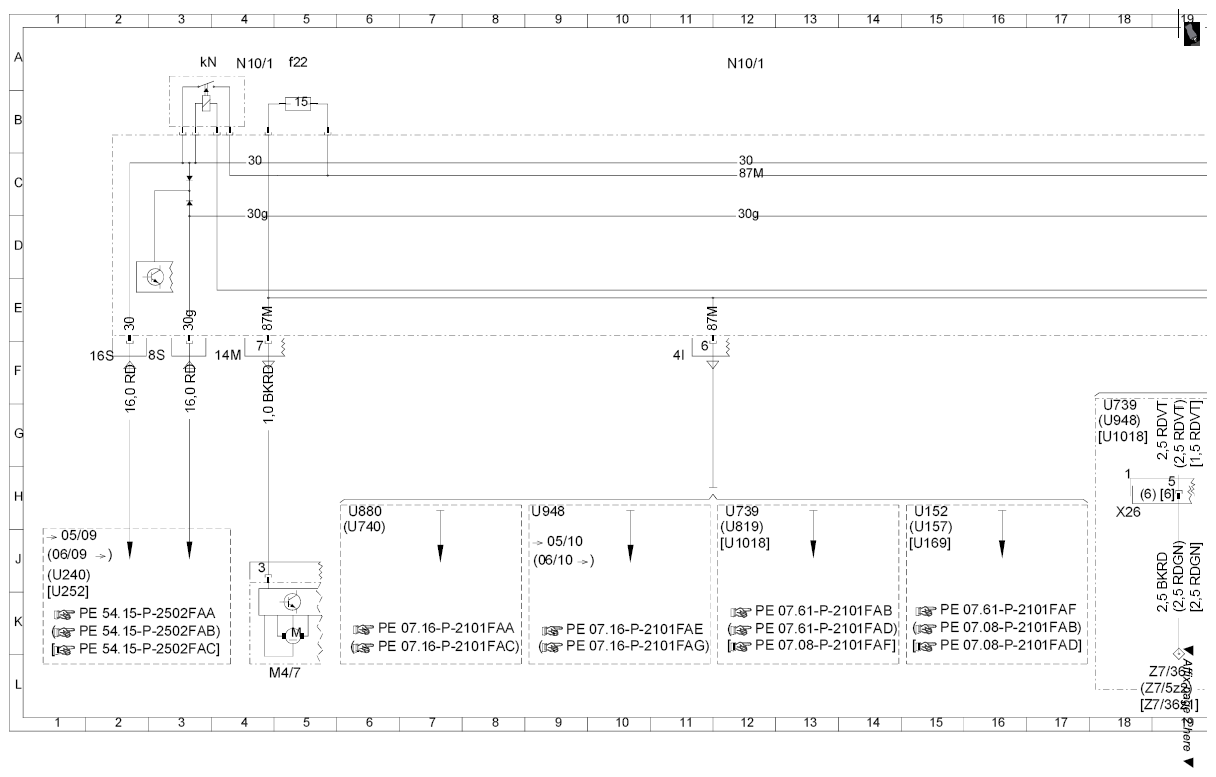

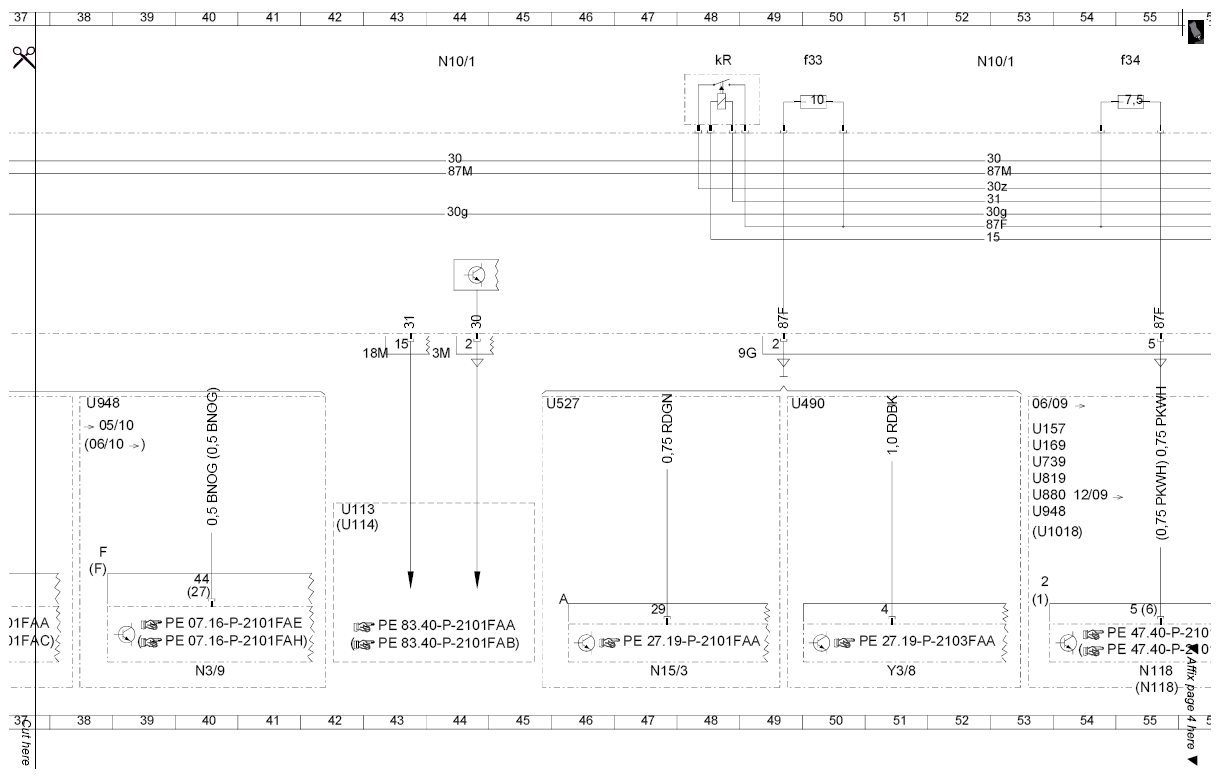

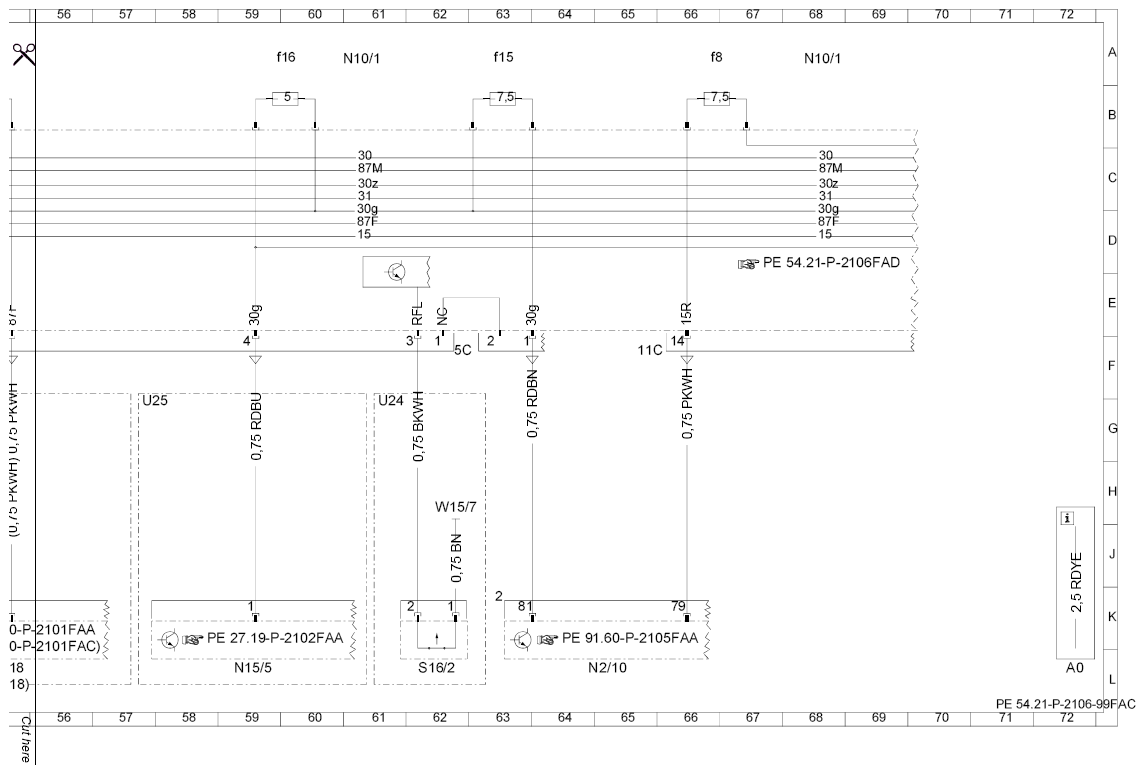

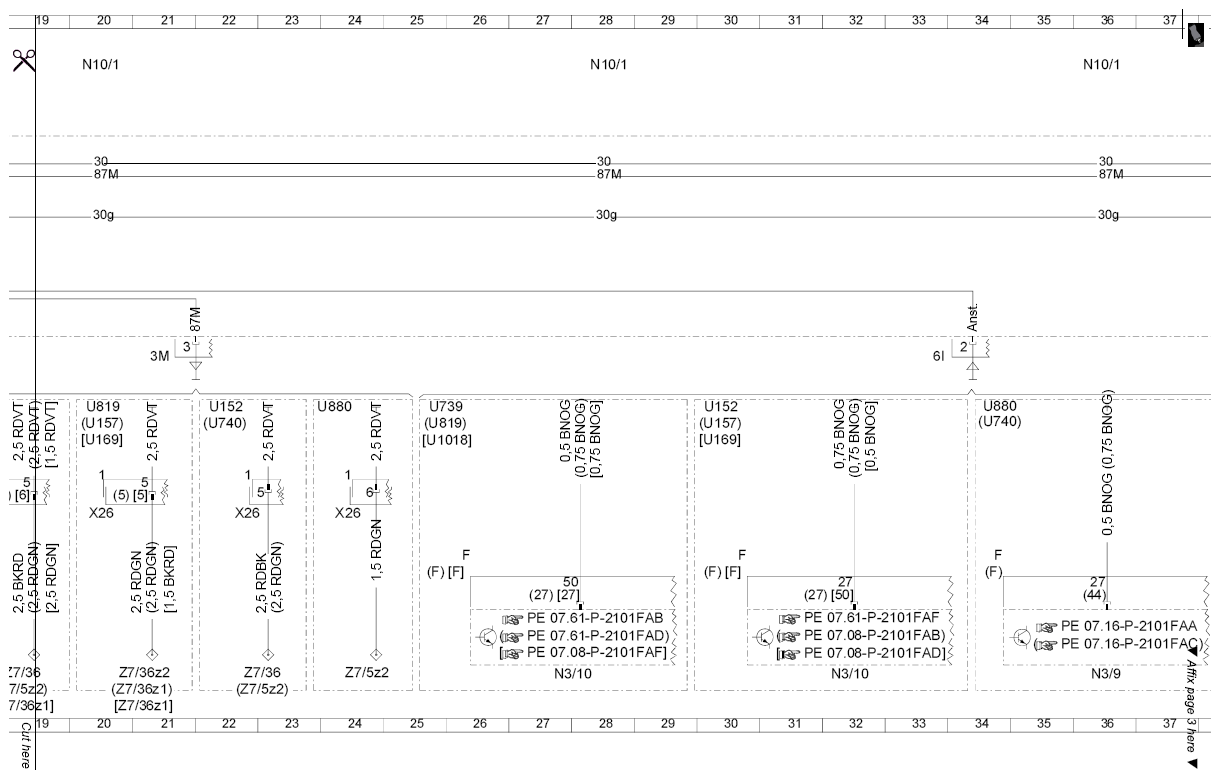

MODEL 204.0/2/3/9 Sheet 3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 48 L |
| A9 | Refrigerant compressor | 24 L |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 2 L |
| N10/1 | Front SAM control module with fuse and relay module | 4 A |
| N10/1 | Front SAM control module with fuse and relay module | 12 A |
| N10/1 | Front SAM control module with fuse and relay module | 20 A |
| N10/1 | Front SAM control module with fuse and relay module | 28 A |
| N10/1 | Front SAM control module with fuse and relay module | 36 A |
| N10/1 | Front SAM control module with fuse and relay module | 44 A |
| N10/1f15 | Fuse 15 | 43 A |
| N10/1f16 | Fuse 16 | 37 A |
| N10/1f22 | Fuse 22 | 2 A |
| N10/1f33 | Fuse 33 | 32 A |
| N10/1f34 | Fuse 34 | 40 A |
| N10/1f8 | Fuse 8 | 45 A |
| N10/1kN | Engine circuit 87 relay | 1 A |
| N10/1kR | Chassis circuit 87 relay | 29 A |
| N15/3 | Electronic transmission control control unit | 30 L |
| N15/5 | Electronic selector lever module control module | 38 L |
| N2/10 | Supplemental restraint system control unit | 44 L |
| N3/10 | ME-SFI [ME] control module | 17 L |
| N3/9 | CDI control module | 21 L |
| R39/1 | Vent line heater element | 14 L |
| S16/2 | Backup lamp switch | 41 L |
| U24 | Valid for manual transmission | 40 G |
| U25 | Valid for automatic transmission | 36 G |
| U490 | Valid for 7-speed automatic transmission | 32 G |
| U527 | Valid for electronic transmission control | 29 G |
| U739 | Valid for gasoline engine 271 | 7 J |
| U739 | Valid for gasoline engine 271 | 10 G |
| U739 | Valid for gasoline engine 271 | 15 G |
| U74 | Valid for diesel vehicles | 25 G |
| U740 | Valid for diesel engine 646 | 4 K |
| U740 | Valid for diesel engine 646 | 12 G |
| U740 | Valid for diesel engine 646 | 19 G |
| U75 | Valid for gasoline engines | 27 G |
| U819 | Valid for gasoline engine 272 | 7 K |
| U819 | Valid for gasoline engine 272 | 11 G |
| U819 | Valid for gasoline engine 272 | 15 G |
| U880 | Valid for diesel engine 642 | 4 J |
| U880 | Valid for diesel engine 642 | 14 G |
| U880 | Valid for diesel engine 642 | 19 G |
| W15/7 | Right front footwell ground point | 41 H |
| X26 | Interior and engine wiring harness electrical connector | 10 H |
| X26 | Interior and engine wiring harness electrical connector | 11 H |
| X26 | Interior and engine wiring harness electrical connector | 12 H |
| X26 | Interior and engine wiring harness electrical connector | 14 H |
| X26 | Interior and engine wiring harness electrical connector | 25 J |
| X26 | Interior and engine wiring harness electrical connector | 27 J |
| Y3/8 | Fully integrated transmission control control unit | 34 L |
| Z7/36 | Circuit 87M2e connector sleeve | 10 L |
| Z7/36 | Circuit 87M2e connector sleeve | 11 L |
| Z7/5 | Circuit 87 connector sleeve | 13 L |
