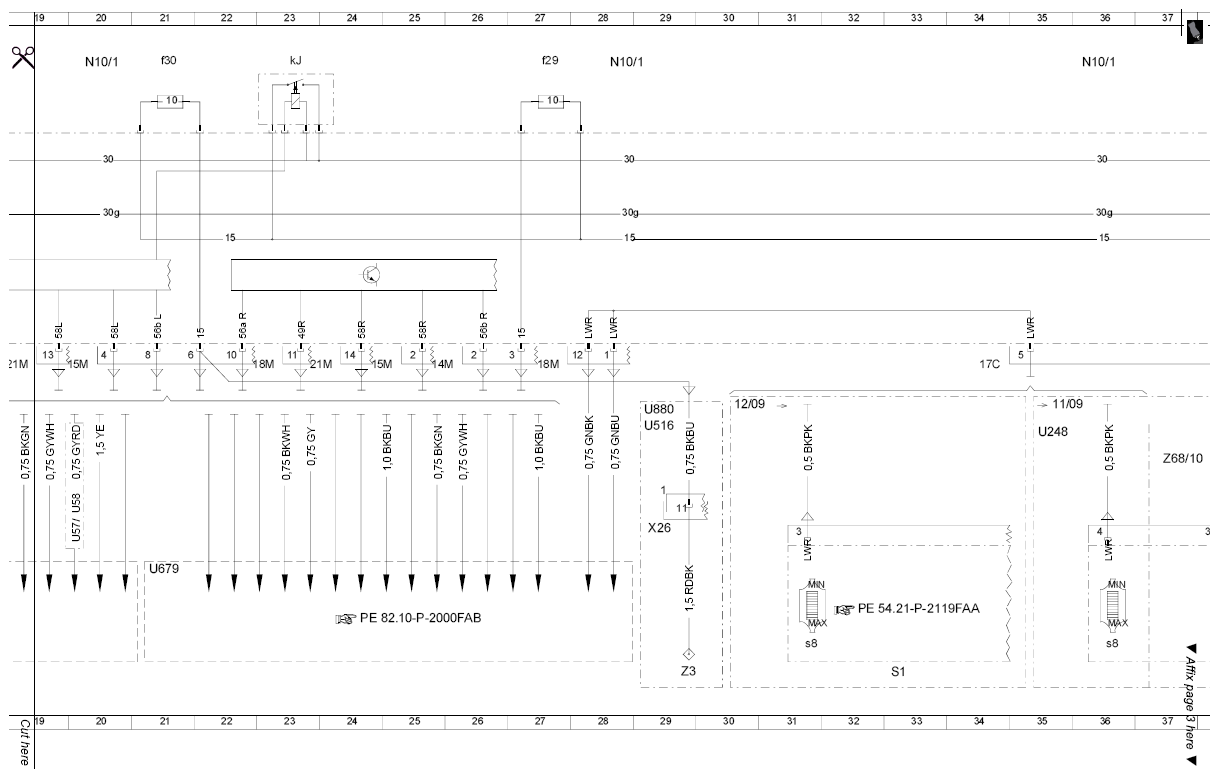

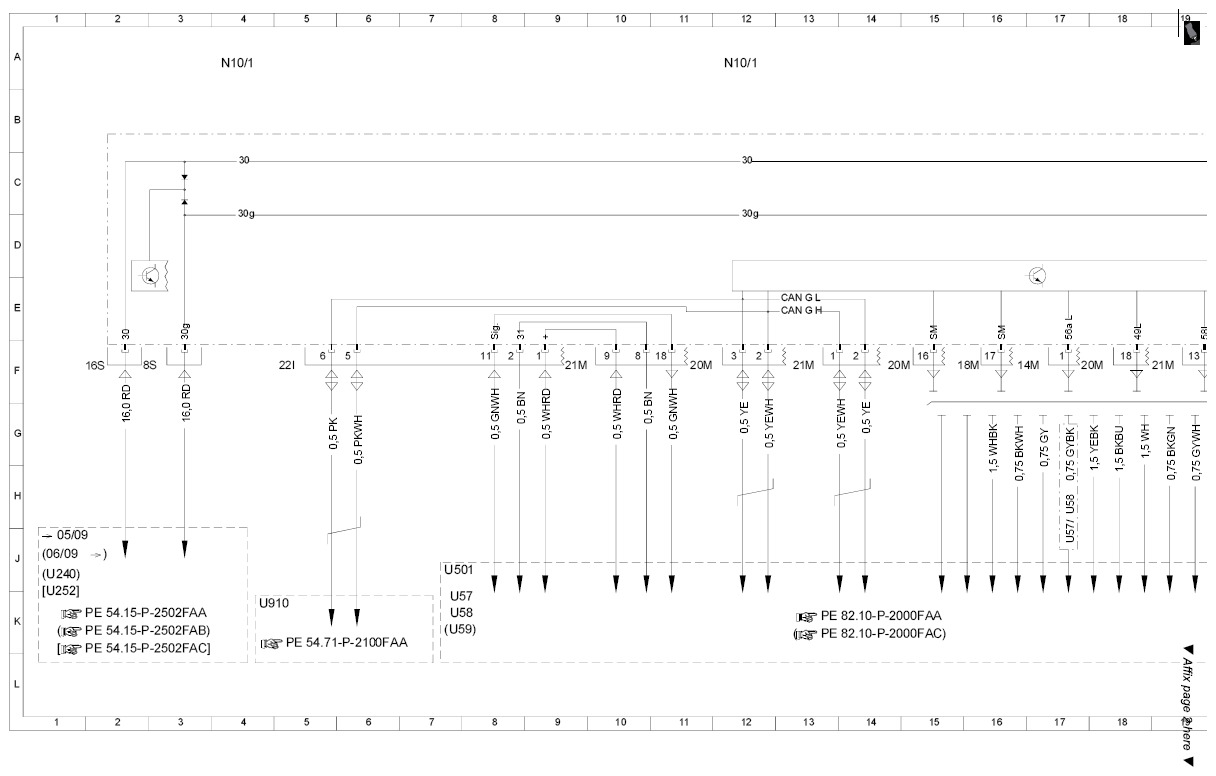

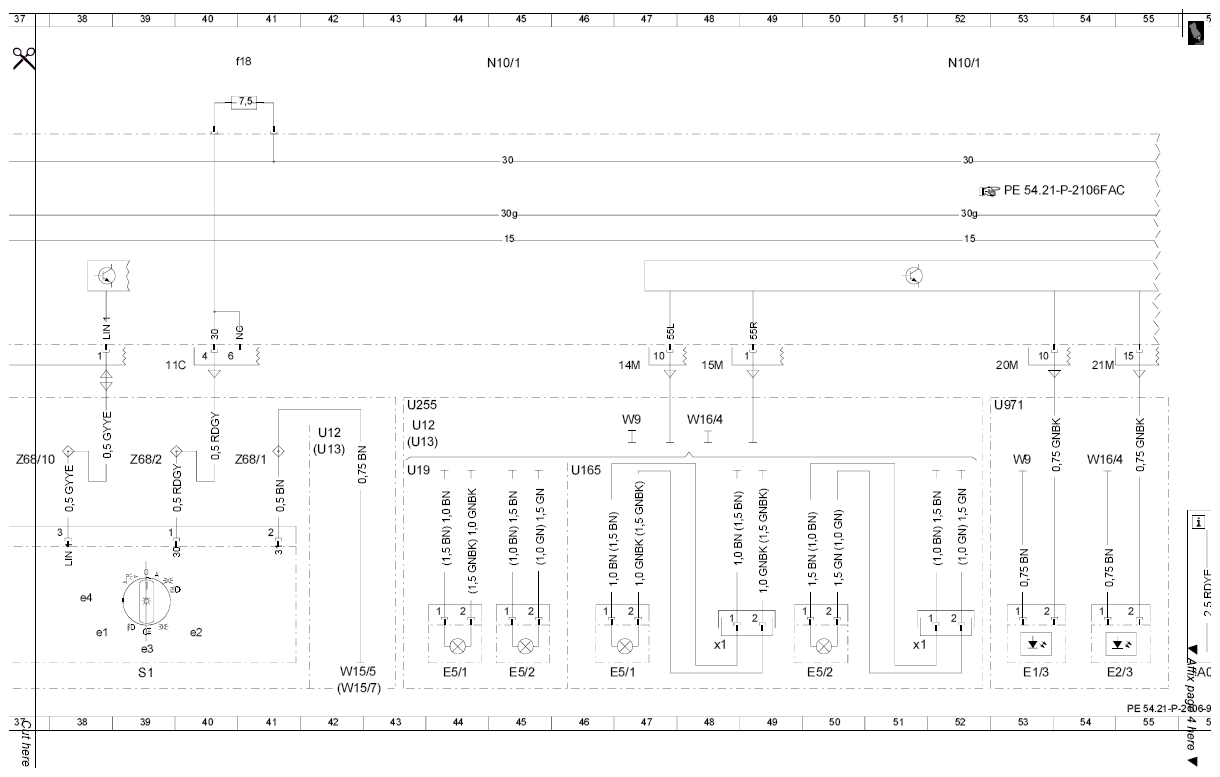

Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3/9 Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 56 L |
| B22/7 | Left rear level sensor | 2 L |
| B22/8 | Left front level sensor | 5 L |
| CAN G | Front end CAN | 9 K |
| CAN G | Front end CAN | 15 K |
| E1 | Left front headlamp unit | 10 L |
| E1 | Left front headlamp unit | 22 L |
| E1e1 | Left high beam | 22 L |
| E1e10 | Left xenon bulb with integrated ignition module | 13 L |
| E1e12 | Left front standing light 2 | 23 L |
| E1e2 | Left low beam | 24 L |
| E1e3 | Left front standing and parking lamp | 24 L |
| E1e5 | Left front turn signal lamp | 23 L |
| E1l1 | Left high beam solenoid | 13 L |
| E1m1 | Left headlamp range adjustment actuator motor | 12 L |
| E1n1 | Left xenon lamp control unit | 11 L |
| E2 | Right front headlamp unit | 18 L |
| E2 | Right front headlamp unit | 26 L |
| E2e1 | Right high beam | 27 L |
| E2e10 | Right xenon bulb with integrated ignition module | 19 L |
| E2e12 | Right front standing light 2 | 28 L |
| E2e2 | Right low beam | 29 L |
| E2e3 | Right front standing and parking lamp | 28 L |
| E2e5 | Right front turn signal lamp | 27 L |
| E2l1 | Right high beam solenoid | 19 L |
| E2m1 | Right headlamp range adjustment actuator motor | 18 L |
| E2n1 | Right xenon light control unit | 17 L |
| E5/1 | Left fog light | 43 L |
| E5/1 | Left fog light | 45 L |
| E5/1x1 | Left front fog lamp electrical connector | 47 L |
| E5/2 | Right fog light | 44 L |
| E5/2 | Right fog light | 48 L |
| E5/2x1 | Right front fog lamp electrical connector | 50 L |
| E6/1 | Left front side-marker lamp | 40 L |
| E6/2 | Right front side-marker lamp | 41 L |
| LIN 1 | Instrument panel LIN | 35 J |
| LIN 1 | Instrument panel LIN | 35 F |
| N10/1 | Front SAM control module with fuse and relay module | 4 A |
| N10/1 | Front SAM control module with fuse and relay module | 12 A |
| N10/1 | Front SAM control module with fuse and relay module | 20 A |
| N10/1 | Front SAM control module with fuse and relay module | 28 A |
| N10/1 | Front SAM control module with fuse and relay module | 37 A |
| N10/1 | Front SAM control module with fuse and relay module | 44 A |
| N10/1f18 | Fuse 18 | 36 A |
| N10/1f29 | Fuse 29 | 25 A |
| N10/1f30 | Fuse 30 | 19 A |
| N10/1kJ | Circuit 15 relay | 22 A |
| S1 | Exterior lights switch | 35 L |
| S1e1 | Fog lamp indicator lamp | 35 K |
| S1e2 | Rear fog lamp indicator lamp | 36 K |
| S1e3 | Standing lamps indicator lamp | 35 L |
| S1e4 | Switch illumination | 34 K |
| U1 | Valid for USA | 39 G |
| U12 | Valid for left-hand steering | 21 G |
| U12 | Valid for left-hand steering | 38 G |
| U12 | Valid for left-hand steering | 42 G |
| U13 | Valid for right-hand steering | 21 G |
| U13 | Valid for right-hand steering | 38 G |
| U13 | Valid for right-hand steering | 42 G |
| U165 | Valid for AMG | 45 H |
| U19 | Valid for standard equipment | 42 H |
| U501 | Valid for xenon headlamps | 1 G |
| U679 | Valid for version without xenon headlamps | 20 G |
| U679 | Valid for version without xenon headlamps | 32 G |
| U880 | Valid for diesel engine 642 | 31 G |
| W15/5 | Left front footwell ground point | 38 L |
| W15/7 | Right front footwell ground point | 38 L |
| W16/3 | Left major assembly compartment ground point | 39 G |
| W16/4 | Right wheelhouse ground point | 17 G |
| W16/4 | Right wheelhouse ground point | 26 G |
| W16/4 | Right wheelhouse ground point | 40 G |
| W16/4 | Right wheelhouse ground point | 46 G |
| W9 | Left front ground point (at lamp unit) | 10 G |
| W9 | Left front ground point (at lamp unit) | 21 G |
| W9 | Left front ground point (at lamp unit) | 45 G |
| X26 | Interior and engine wiring harness electrical connector | 31 J |
| X62/32 | Rear axle electrical connector, left distributor | 1 H |
| Z3 | Circuit 15 connector sleeve | 31 L |
| Z36/5 | Headlamp range adjustment sensor ground connector sleeve | 6 H |
| Z36/6 | Sensor voltage supply connector sleeve | 8 H |
| Z68/1 | Instrument panel circuit 31 climate control LIN connector sleeve | 36 H |
| Z68/10 | Instrument panel LIN connector sleeve | 34 H |
| Z68/2 | Instrument panel climate control LIN positive line connector sleeve | 35 H |
