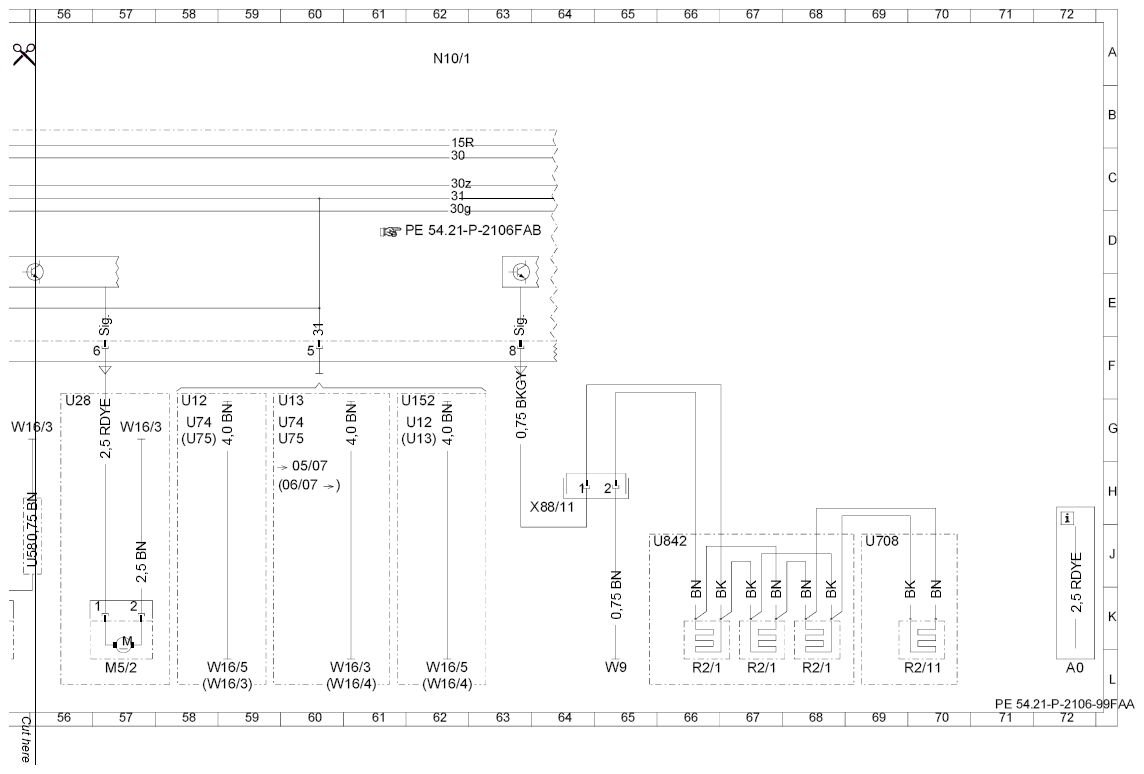

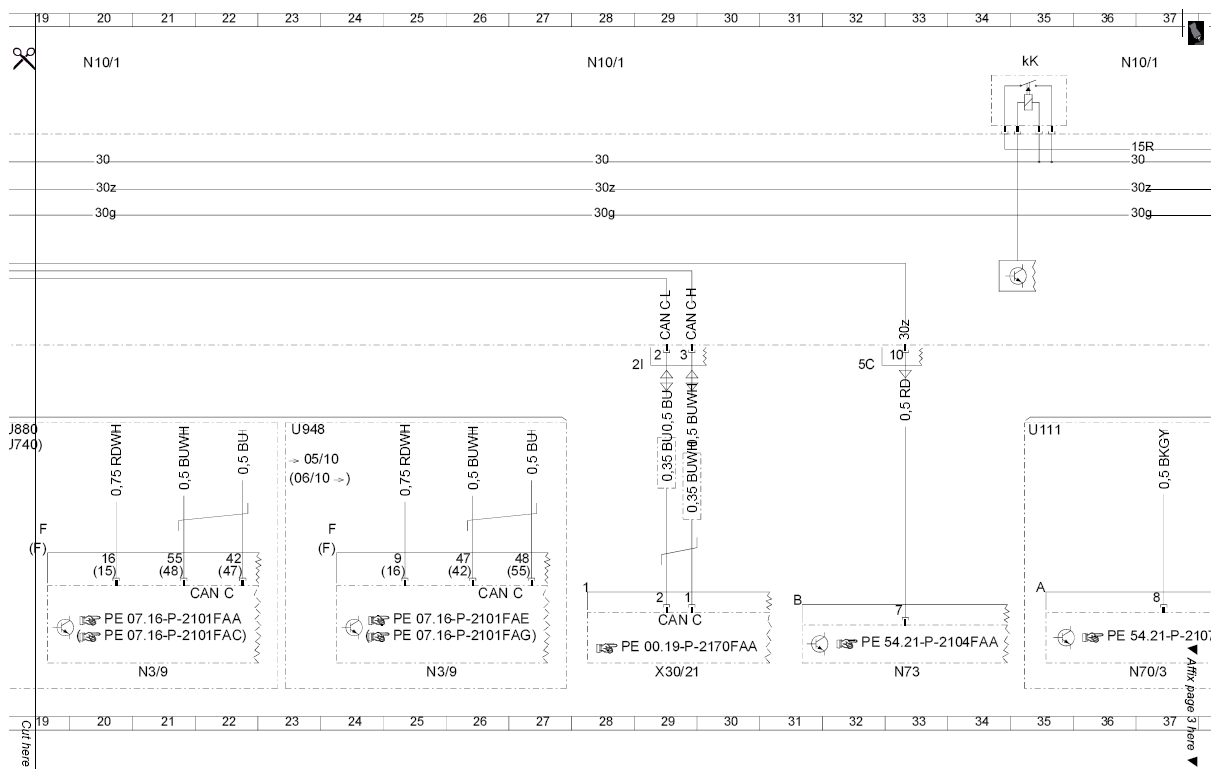

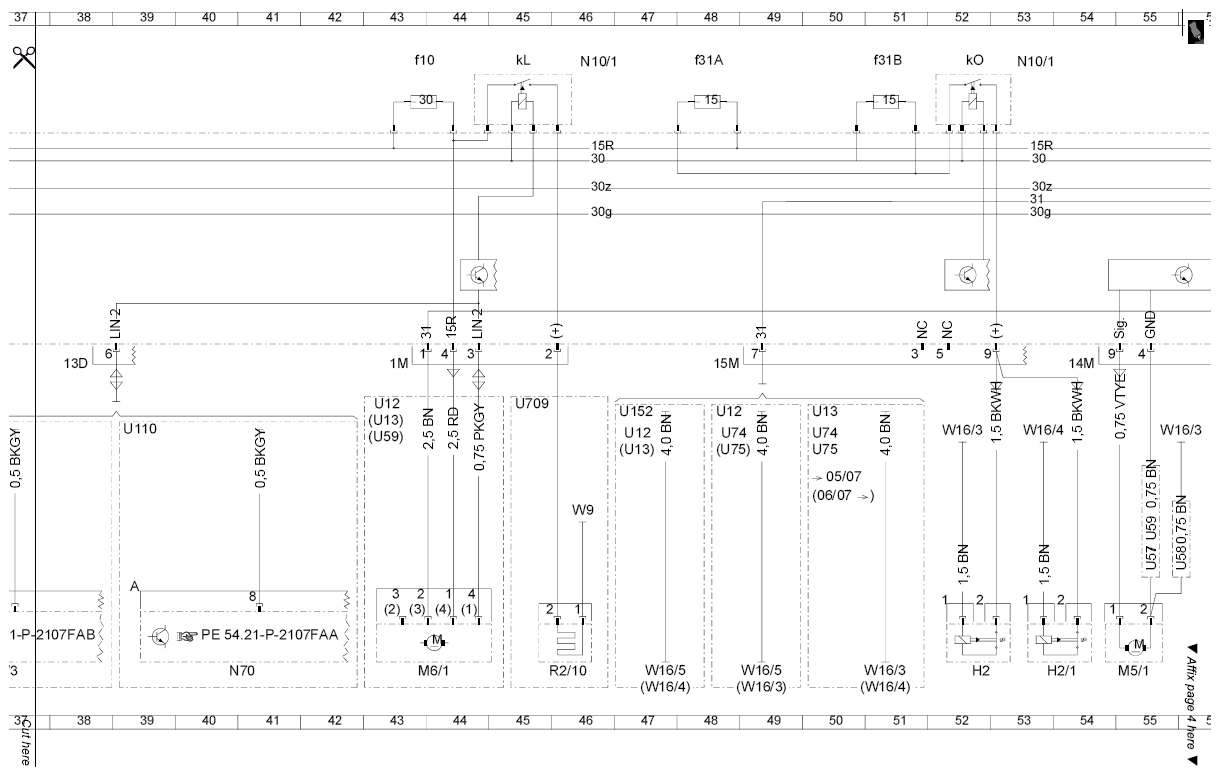

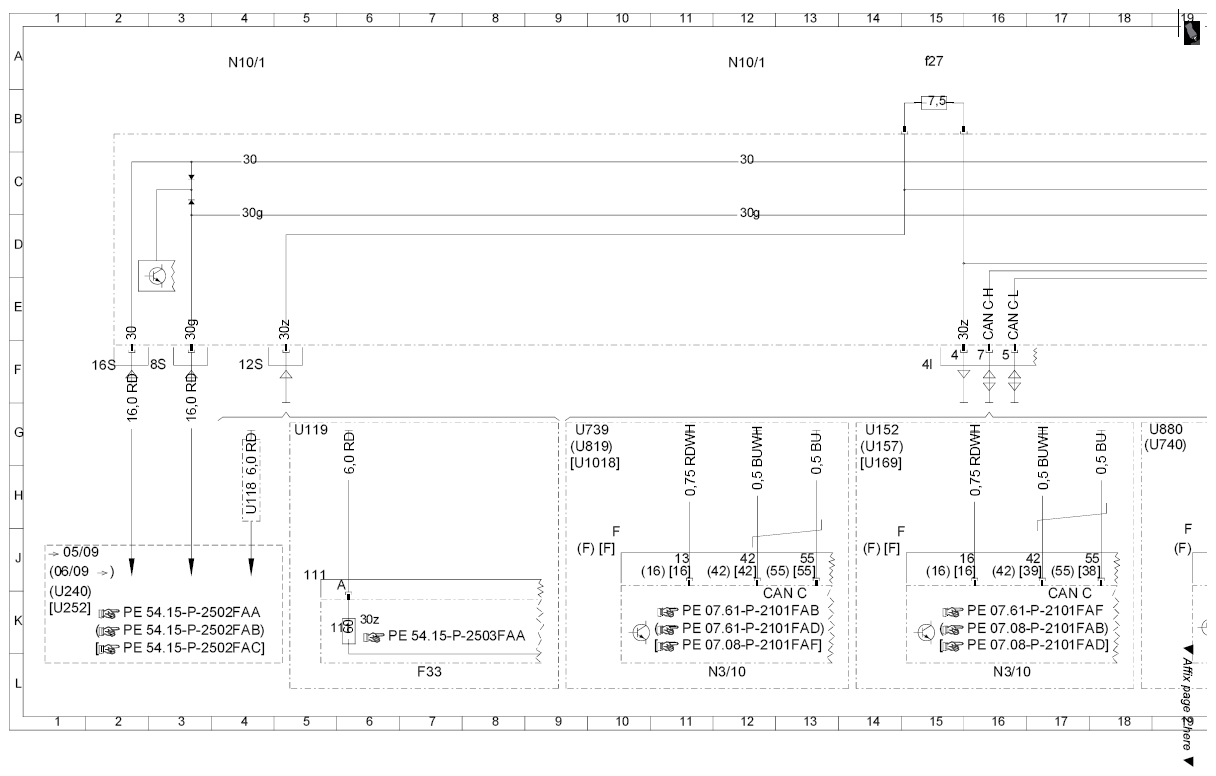

Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3/9 Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 56 L |
| CAN C | Drive train CAN | 14 K |
| CAN C | Drive train CAN | 18 K |
| CAN C | Drive train CAN | 21 K |
| F32 | Front electrical prefuse box | 3 L |
| F32f101 | Prefuse 101 | 6 K |
| F32f105 | Prefuse 105 | 2 K |
| F32f89 | Prefuse 89 | 1 K |
| F33 | Rear prefuse box | 9 L |
| F33f111 | Prefuse 111 | 7 K |
| LIN 2 | Wiper/inside rearview mirror LIN | 34 F |
| LIN 2 | Wiper/inside rearview mirror LIN | 39 F |
| M6/1 | Wiper motor | 39 L |
| N10/1 | Front SAM control module with fuse and relay module | 4 A |
| N10/1 | Front SAM control module with fuse and relay module | 12 A |
| N10/1 | Front SAM control module with fuse and relay module | 20 A |
| N10/1 | Front SAM control module with fuse and relay module | 28 A |
| N10/1 | Front SAM control module with fuse and relay module | 36 A |
| N10/1 | Front SAM control module with fuse and relay module | 44 A |
| N10/1f10 | Fuse 10 | 38 A |
| N10/1f27 | Fuse 27 | 14 A |
| N10/1kK | Circuit 15R relay | 26 A |
| N10/1kL | Reserve relay | 40 A |
| N26/5 | Electric steering lock control unit | 24 L |
| N3/10 | ME-SFI [ME] control module | 13 L |
| N3/9 | CDI control module | 17 L |
| N70 | Overhead control panel control module | 36 L |
| N70/3 | Overhead control panel electronics | 32 L |
| N73 | Electronic ignition switch control unit | 28 L |
| R2/1 | Spray nozzle heater | 48 L |
| R2/1 | Spray nozzle heater | 49 L |
| R2/10 | Wiper park heater | 41 L |
| R2/11 | Spray nozzle hose heater | 51 L |
| U110 | Valid for overhead control panel with CAN | 34 G |
| U111 | Valid for overhead control panel without CAN | 30 G |
| U118 | Valid for front battery | 5 G |
| U119 | Valid for rear battery | 7 G |
| U12 | Valid for left-hand steering | 38 G |
| U12 | Valid for left-hand steering | 42 G |
| U13 | Valid for right-hand steering | 38 G |
| U13 | Valid for right-hand steering | 43 G |
| U708 | Valid for spray nozzle hose heater | 50 J |
| U709 | Valid for wiper park position heater | 40 G |
| U739 | Valid for gasoline engine 271 | 11 G |
| U74 | Valid for diesel vehicles | 42 G |
| U74 | Valid for diesel vehicles | 43 G |
| U740 | Valid for diesel engine 646 | 15 G |
| U75 | Valid for gasoline engines | 42 G |
| U75 | Valid for gasoline engines | 43 G |
| U819 | Valid for gasoline engine 272 | 11 G |
| U842 | Valid for spray nozzle heater | 47 J |
| U880 | Valid for diesel engine 642 | 15 G |
| W16/3 | Left major assembly compartment ground point | 42 L |
| W16/3 | Left major assembly compartment ground point | 44 L |
| W16/4 | Right wheelhouse ground point | 44 L |
| W16/5 | Left major assembly compartment electronics ground point | 42 L |
| W9 | Left front ground point (at lamp unit) | 41 H |
| W9 | Left front ground point (at lamp unit) | 47 L |
| X190 | Instrument panel and electric steering lock electrical connector | 24 H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 21 L |
| X88/11 | Spray nozzle heater electrical connector | 45 H |
| Z108 | Spray nozzle heater connector sleeve | 47 H |
| Z113 | Spray nozzle and spray nozzle hose heater connector sleeve | 49 H |
