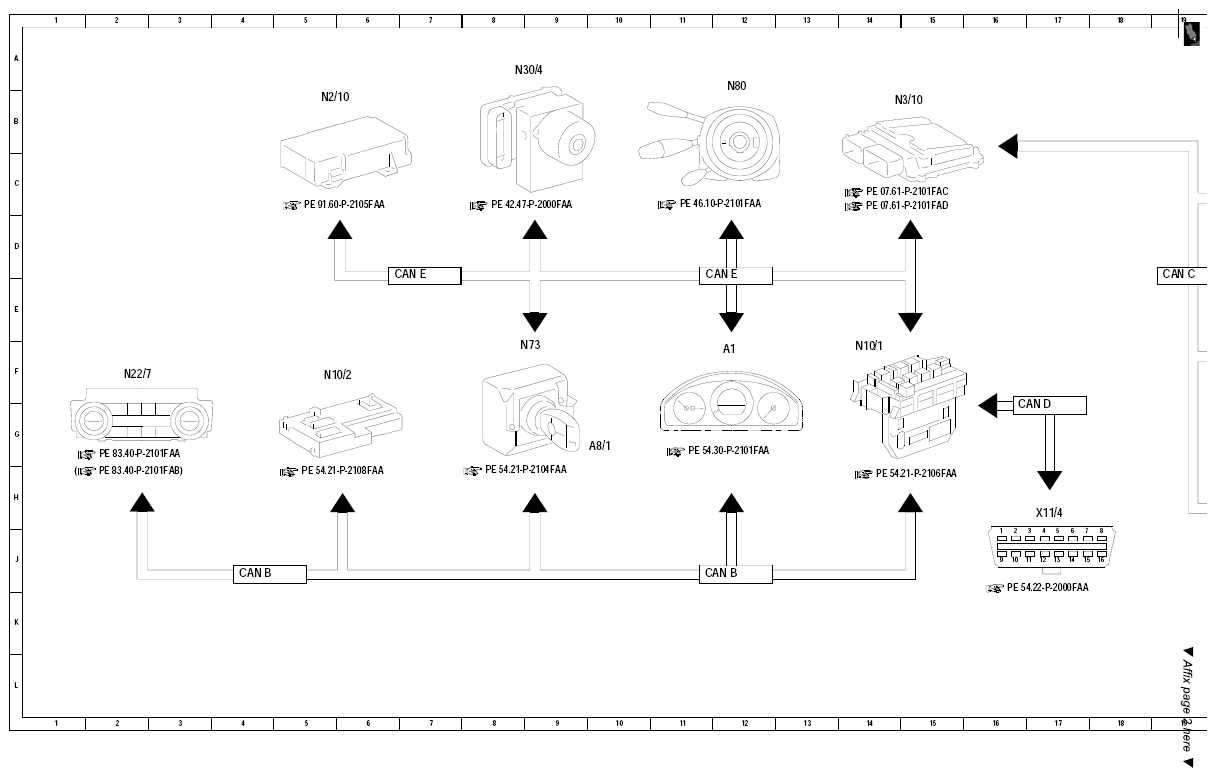

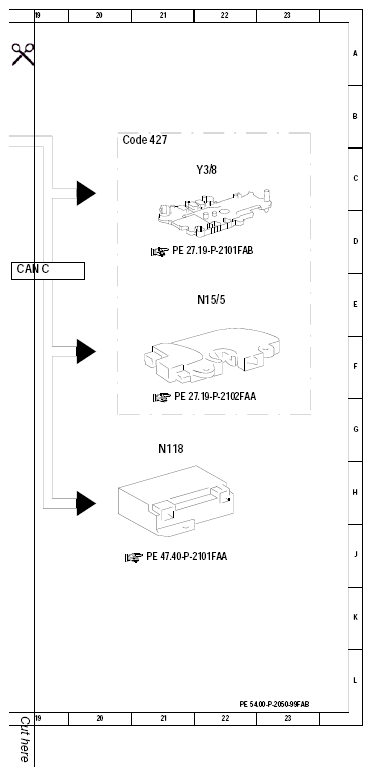

Electrical function schematic of overall network of engine control - PE54.00-P-2050-99FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with ENGINE 272 up to Model Year 08 /modification year 07
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 12 F |
| A8/1 | Transmitter key | 10 G |
| CAN B | Interior CAN | 4 J |
| CAN B | Interior CAN | 11 J |
| CAN C | Drive train CAN | 19 E |
| CAN D | Diagnostic CAN | 16 G |
| CAN E | Chassis CAN | 6 E |
| CAN E | Chassis CAN | 11 E |
| Code 427 | 7-speed automatic transmission | 20 C |
| N10/1 | Front SAM control unit with fuse and relay module | 14 F |
| N10/2 | Rear SAM control unit with fuse and relay module | 5 F |
| N118 | Fuel pump control unit | 21 G |
| N15/5 | Electronic selector lever module control unit | 22 E |
| N2/10 | Supplemental restraint system control unit | 5 B |
| N22/7 | Automatic air conditioning control and operating unit | 2 F |
| N3/10 | ME-SFI [ME] control unit | 14 B |
| N30/4 | Electronic Stability Program control unit | 8 A |
| N73 | Electronic ignition switch control unit | 8 F |
| N80 | Steering column module control unit | 12 B |
| X11/4 | Diagnostic connector | 17 H |
| Y3/8 | Fully integrated transmission control control unit | 22 C |
