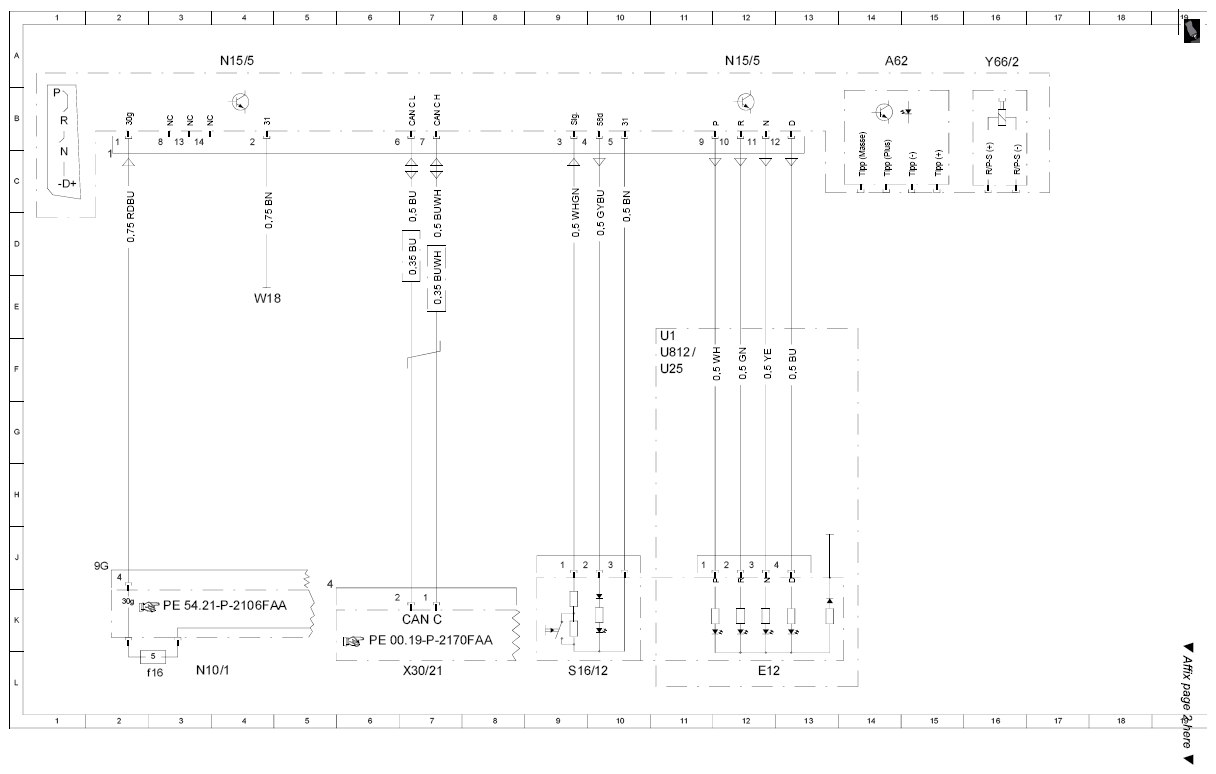

Wiring diagram for electronic selector lever module control unit - PE27.19-P-2102-99FAA
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
| A0 | Explanation of color codes | 23L |
| A62 | Gear display sensor | 14A |
| CAN C | Drive train CAN | 7K |
| E12 | Shift gate symbol illumination | 12L |
| N10/1 | Front SAM control module with fuse and relay module | 3L |
| N10/1f16 | Fuse 16 | 2L |
| N15/5 | Electronic selector lever module control module | 4A |
| N15/5 | Electronic selector lever module control module | 12A |
| S16/12 | Automatic transmission mode button | 9L |
| U1 | Valid for USA | 11F |
| W18 | Left front seat crossmember ground point | 4E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 7L |
| Y66/2 | Selector lever positions R and P locking solenoid | 16A |
