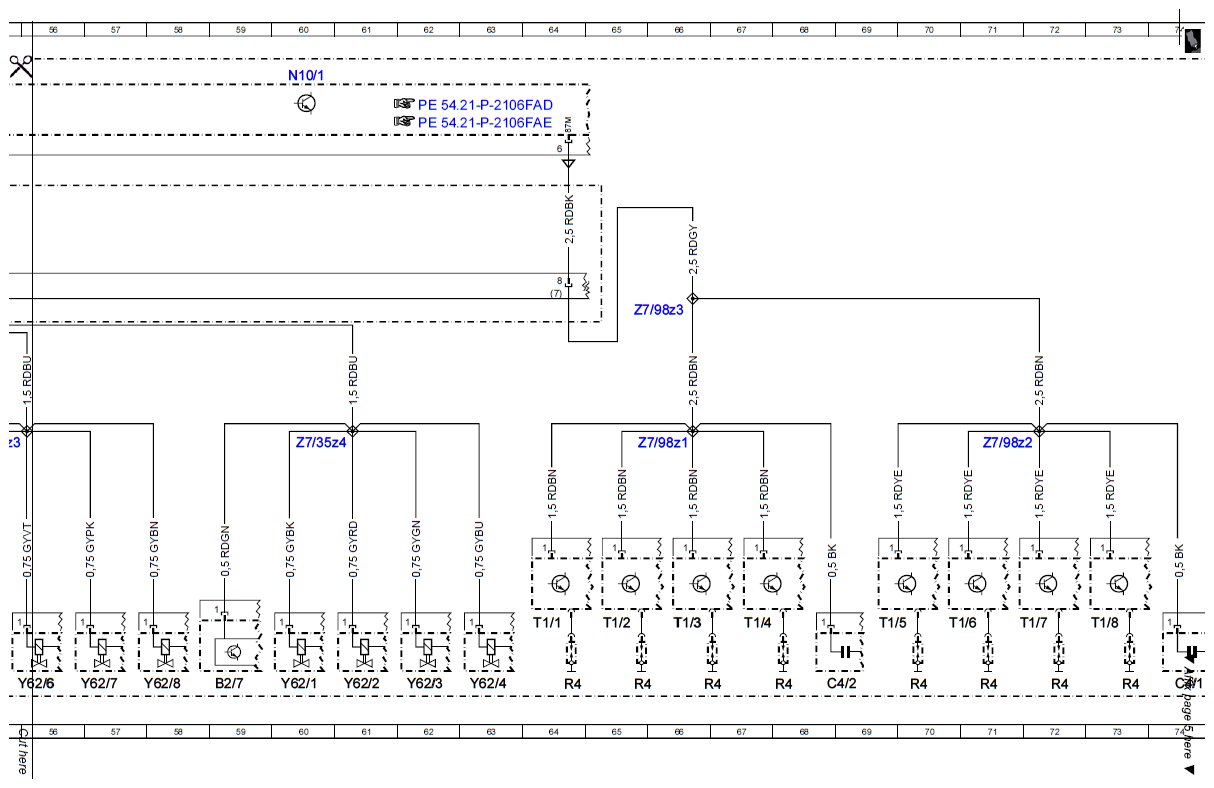

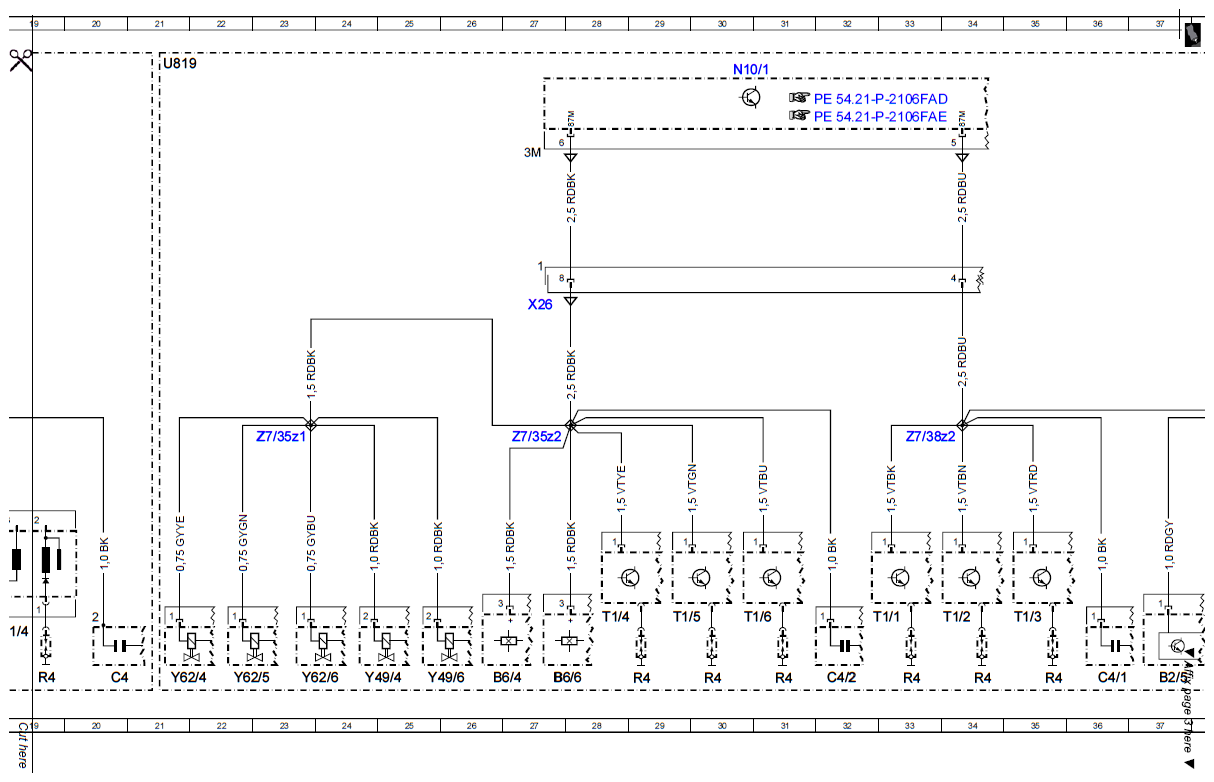

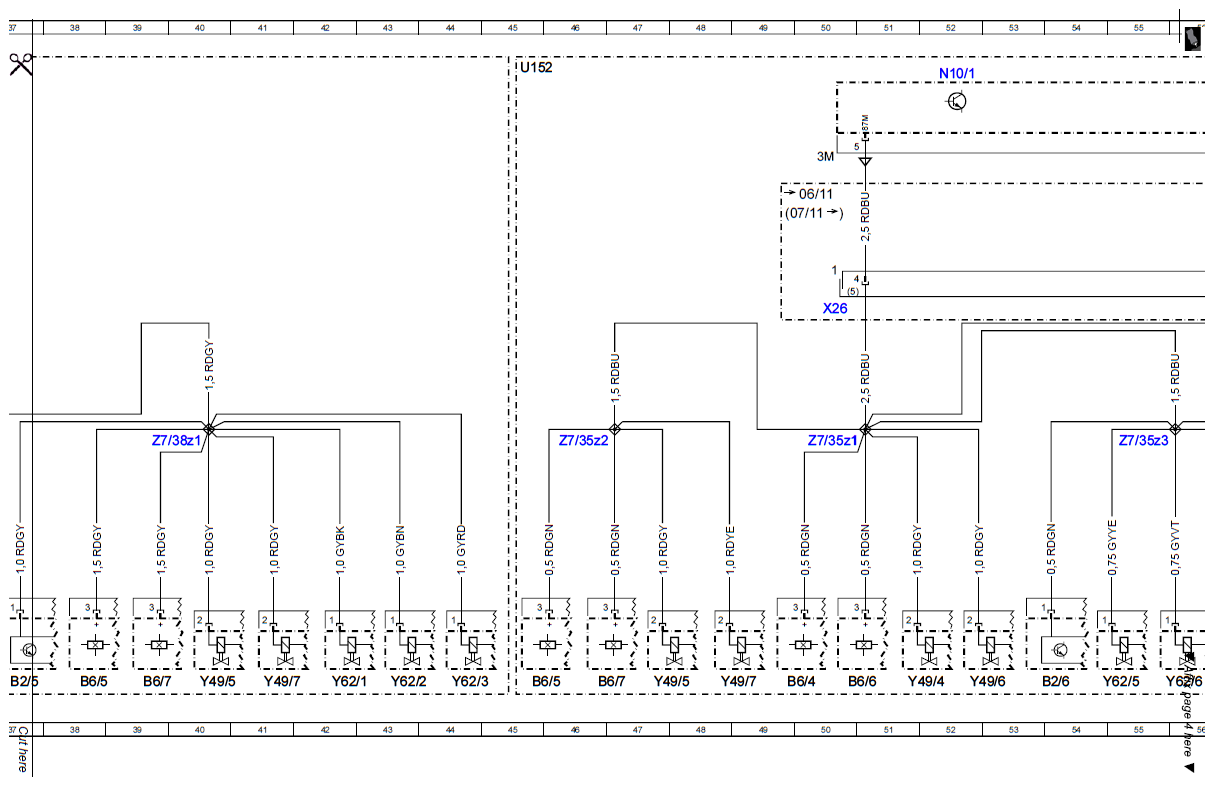

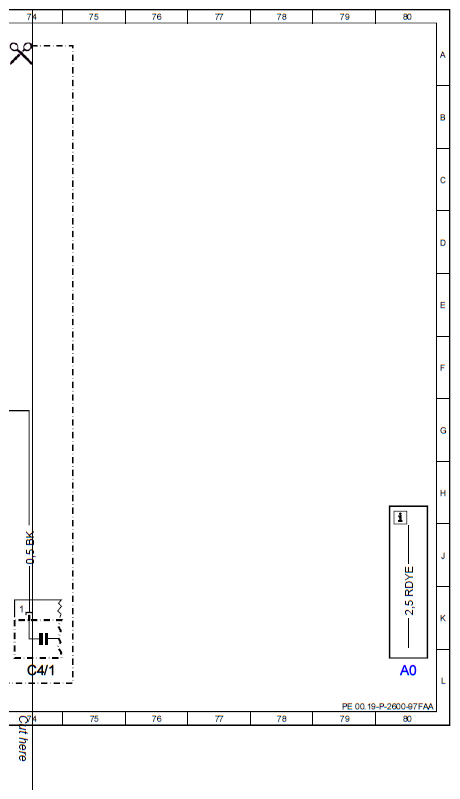

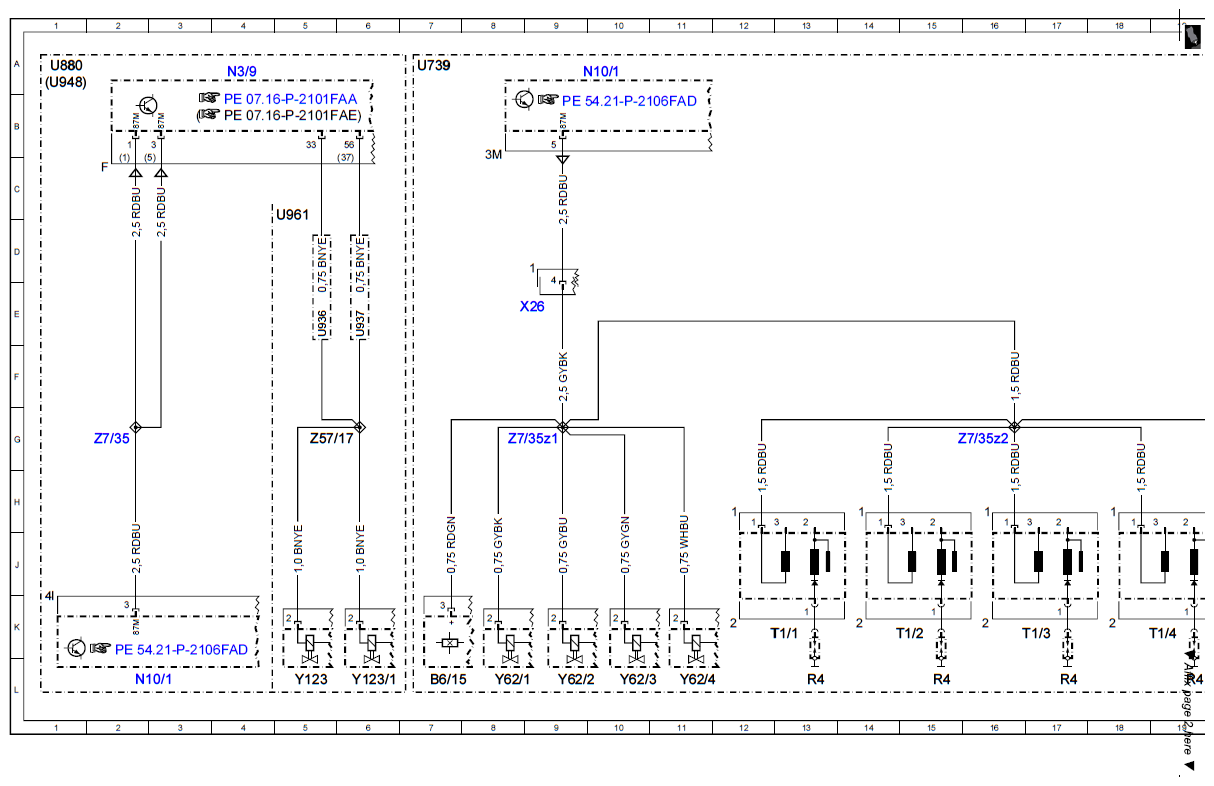

Wiring diagram solder points/Z-connector sleeves - PE00.19-P-2600-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| B2/5 | Hot film mass air flow sensor | 37L |
| B2/6 | Left hot film MAF sensor | 54L |
| B2/7 | Right hot film MAF sensor | 59L |
| B6/15 | Intake camshaft Hall sensor | 7L |
| B6/4 | Left intake camshaft Hall sensor | 26L |
| B6/4 | Left intake camshaft Hall sensor | 50L |
| B6/5 | Right intake camshaft Hall sensor | 38L |
| B6/5 | Right intake camshaft Hall sensor | 45L |
| B6/6 | Left exhaust camshaft Hall sensor | 27L |
| B6/6 | Left exhaust camshaft Hall sensor | 50L |
| B6/7 | Right exhaust camshaft Hall sensor | 39L |
| B6/7 | Right exhaust camshaft Hall sensor | 46L |
| C4 | Interference suppression capacitor | 20L |
| C4/1 | Radio interference suppression capacitor 1 | 36L |
| C4/1 | Radio interference suppression capacitor 1 | 74L |
| C4/2 | Radio interference suppression capacitor 2 | 32L |
| C4/2 | Radio interference suppression capacitor 2 | 68L |
| N10/1 | Front SAM control unit with fuse and relay module | 2L |
| N10/1 | Front SAM control unit with fuse and relay module | 10A |
| N10/1 | Front SAM control unit with fuse and relay module | 30A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N10/1 | Front SAM control unit with fuse and relay module | 60A |
| N3/9 | CDI control unit | 4A |
| R4 | Spark plugs | 15L |
| R4 | Spark plugs | 13L |
| R4 | Spark plugs | 19L |
| R4 | Spark plugs | 17L |
| R4 | Spark plugs | 31L |
| R4 | Spark plugs | 34L |
| R4 | Spark plugs | 33L |
| R4 | Spark plugs | 29L |
| R4 | Spark plugs | 30L |
| R4 | Spark plugs | 35L |
| R4 | Spark plugs | 64L |
| R4 | Spark plugs | 65L |
| R4 | Spark plugs | 72L |
| R4 | Spark plugs | 71L |
| R4 | Spark plugs | 70L |
| R4 | Spark plugs | 66L |
| R4 | Spark plugs | 68L |
| R4 | Spark plugs | 73L |
| T1/1 | Cylinder 1 ignition coil | 13K |
| T1/1 | Cylinder 1 ignition coil | 33K |
| T1/1 | Cylinder 1 ignition coil | 64K |
| T1/2 | Cylinder 2 ignition coil | 15K |
| T1/2 | Cylinder 2 ignition coil | 34K |
| T1/2 | Cylinder 2 ignition coil | 65K |
| T1/3 | Cylinder 3 ignition coil | 35K |
| T1/3 | Cylinder 3 ignition coil | 17K |
| T1/3 | Cylinder 3 ignition coil | 66K |
| T1/4 | Cylinder 4 ignition coil | 28K |
| T1/4 | Cylinder 4 ignition coil | 19K |
| T1/4 | Cylinder 4 ignition coil | 67K |
| T1/5 | Cylinder 5 ignition coil | 29K |
| T1/5 | Cylinder 5 ignition coil | 69K |
| T1/6 | Cylinder 6 ignition coil | 30K |
| T1/6 | Cylinder 6 ignition coil | 70K |
| T1/7 | Cylinder 7 ignition coil | 72K |
| T1/8 | Cylinder 8 ignition coil | 73K |
| U152 | Valid for gasoline engine 156 | 45A |
| U739 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 7A |
| U819 | Valid for gasoline engine 272 | 21A |
| U880 | Valid for diesel engine 642 | 1A |
| U936 | Valid for increased engine power | 5E |
| U937 | Valid for all except increased engine power | 6E |
| U948 | Valid for diesel engine 651 | 1A |
| U961 | Valid for engine mount | 5C |
| X26 | Interior and engine wiring harness electrical connector | 9E |
| X26 | Interior and engine wiring harness electrical connector | 27E |
| X26 | Interior and engine wiring harness electrical connector | 50E |
| Y123 | Left switchable engine mount | 5L |
| Y123/1 | Right switchable engine mount | 6L |
| Y49/4 | Left intake camshaft solenoid | 24L |
| Y49/4 | Left intake camshaft solenoid | 51L |
| Y49/5 | Right intake camshaft solenoid | 40L |
| Y49/5 | Right intake camshaft solenoid | 47L |
| Y49/6 | Left exhaust camshaft solenoid | 25L |
| Y49/6 | Left exhaust camshaft solenoid | 52L |
| Y49/7 | Right exhaust camshaft solenoid | 41L |
| Y49/7 | Right exhaust camshaft solenoid | 48L |
| Y62/1 | Cylinder 1 injection valve | 8L |
| Y62/1 | Cylinder 1 injection valve | 42L |
| Y62/1 | Cylinder 1 injection valve | 60L |
| Y62/2 | Cylinder 2 injection valve | 9L |
| Y62/2 | Cylinder 2 injection valve | 43L |
| Y62/2 | Cylinder 2 injection valve | 61L |
| Y62/3 | Cylinder 3 injection valve | 10L |
| Y62/3 | Cylinder 3 injection valve | 44L |
| Y62/3 | Cylinder 3 injection valve | 62L |
| Y62/4 | Cylinder 4 injection valve | 11L |
| Y62/4 | Cylinder 4 injection valve | 21L |
| Y62/4 | Cylinder 4 injection valve | 63L |
| Y62/5 | Cylinder 5 injection valve | 22L |
| Y62/5 | Cylinder 5 injection valve | 55L |
| Y62/6 | Cylinder 6 injection valve | 23L |
| Y62/6 | Cylinder 6 injection valve | 56L |
| Y62/7 | Cylinder 7 injection valve | 57L |
| Y62/8 | Cylinder 8 injection valve | 58L |
| Z57/17 | Engine compartment engine mount solder point | 5G |
| Z7/35 | Circuit 87 M1e connector sleeve | 2G |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 9G |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 23G |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 50G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 16G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 27G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 46G |
| Z7/35z3 | Circuit 87 M1e connector sleeve | 55G |
| Z7/35z4 | Circuit 87 M1e connector sleeve | 60G |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 40G |
| Z7/38z2 | Circuit 87 M1i connector sleeve | 33G |
| Z7/98z1 | Circuit 87 M3e connector sleeve | 66G |
| Z7/98z2 | Circuit 87 M3e connector sleeve | 71G |
| Z7/98z3 | Circuit 87 M3e connector sleeve | 66E |
