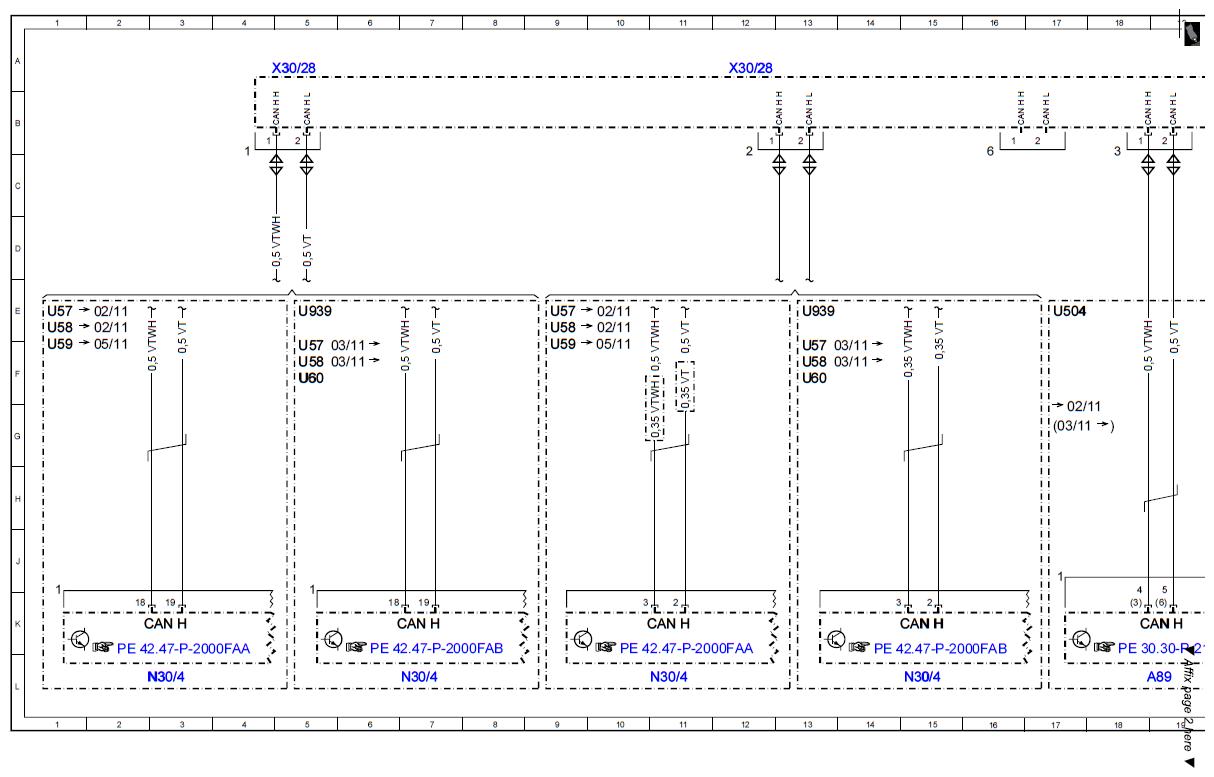

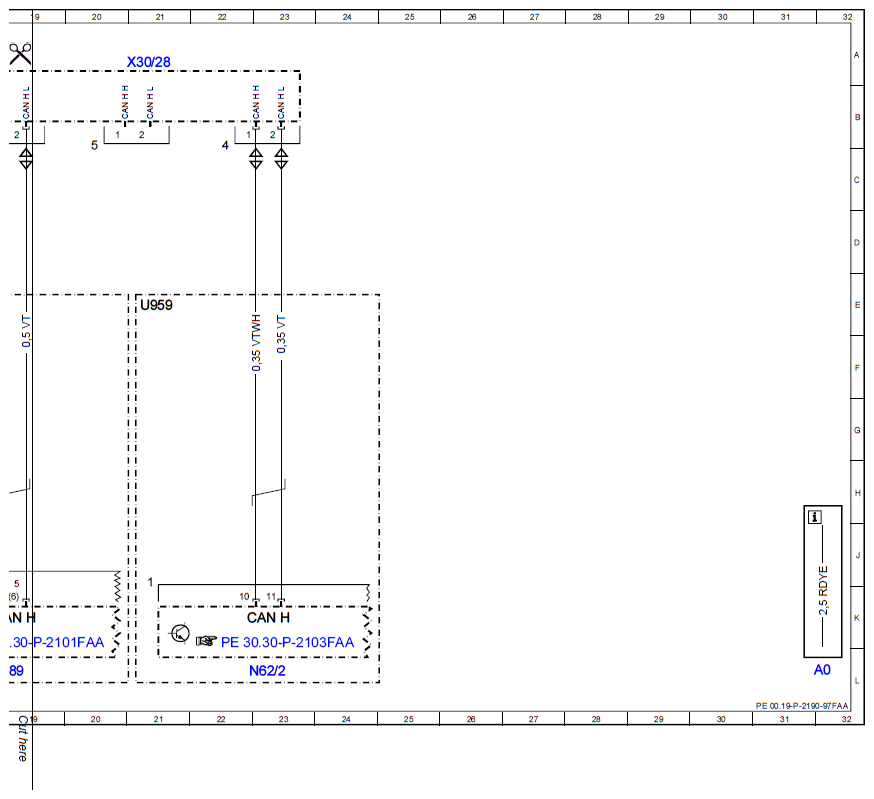

Wiring diagram of vehicle dynamics CAN - PE00.19-P-2190-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A89 | DISTRONIC electric controller unit | 19L |
| CAN H | Vehicle dynamics CAN | 15K |
| CAN H | Vehicle dynamics CAN | 3K |
| CAN H | Vehicle dynamics CAN | 7K |
| CAN H | Vehicle dynamics CAN | 11K |
| CAN H | Vehicle dynamics CAN | 19K |
| CAN H | Vehicle dynamics CAN | 23K |
| N30/4 | Electronic Stability Program control unit | 15L |
| N30/4 | Electronic Stability Program control unit | 3L |
| N30/4 | Electronic Stability Program control unit | 7L |
| N30/4 | Electronic Stability Program control unit | 11L |
| N62/2 | Video and radar sensor system control unit | 23L |
| U504 | Valid for DISTRONIC | 17E |
| U57 | Valid for model 204.2 | 1E |
| U57 | Valid for model 204.2 | 5F |
| U57 | Valid for model 204.2 | 13F |
| U57 | Valid for model 204.2 | 9E |
| U58 | Valid for model 204.0 | 1E |
| U58 | Valid for model 204.0 | 5F |
| U58 | Valid for model 204.0 | 13F |
| U58 | Valid for model 204.0 | 9E |
| U59 | Valid for model 204.9 | 1F |
| U59 | Valid for model 204.9 | 9F |
| U60 | Valid for model 204.3 | 13F |
| U60 | Valid for model 204.3 | 5F |
| U939 | Valid for ESP® Premium | 5E |
| U939 | Valid for ESP® Premium | 13E |
| U959 | Valid for video and radar sensor system control unit | 21E |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 5A |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 12A |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 21A |
