Wiring diagram of drive train CAN - PE00.19-P-2170-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| CAN C | Drive train CAN | 2K |
| CAN C | Drive train CAN | 10K |
| CAN C | Drive train CAN | 14K |
| CAN C | Drive train CAN | 18K |
| CAN C | Drive train CAN | 22K |
| CAN C | Drive train CAN | 26K |
| CAN C | Drive train CAN | 30K |
| CAN C | Drive train CAN | 34K |
| CAN C | Drive train CAN | 38K |
| Code B03 | ECO start/stop function | 28F |

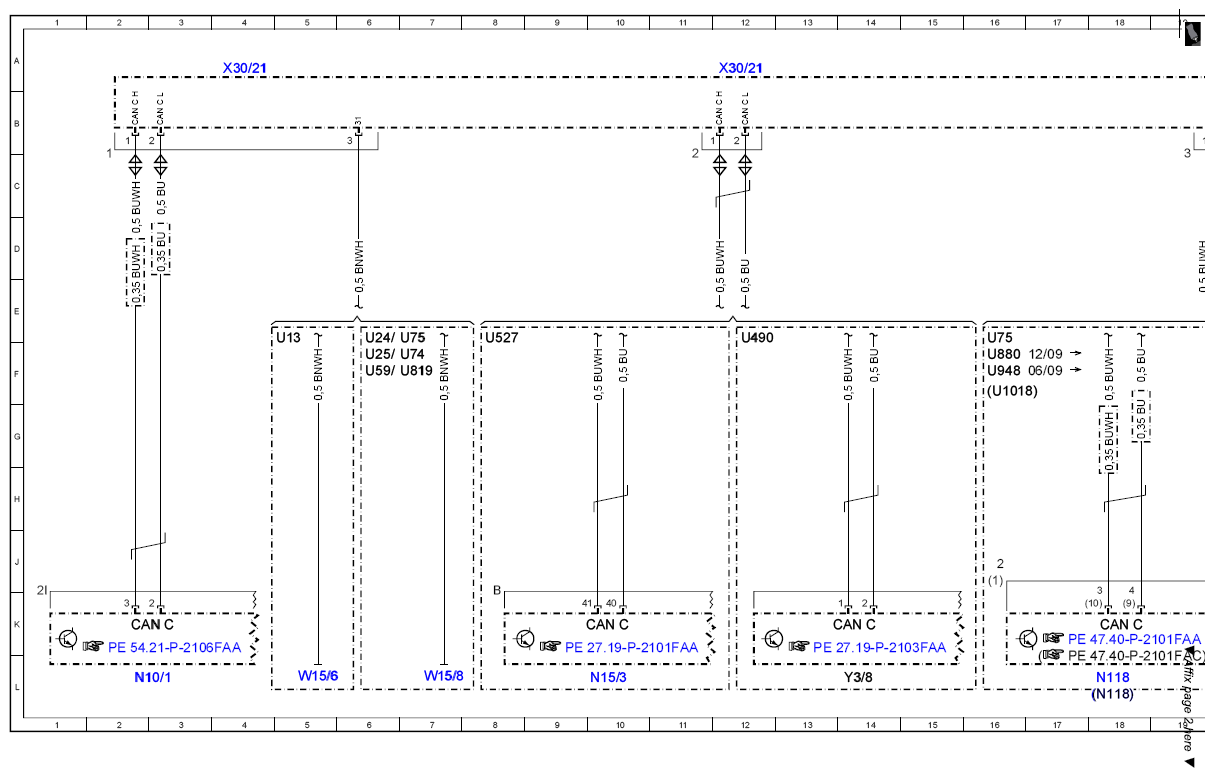

| N10/1 | Front SAM control unit with fuse and relay module | 2L |
| N118 | Fuel pump control unit | 18L |
| N118 | Fuel pump control unit | 18L |
| N118 | Fuel pump control unit | 22L |

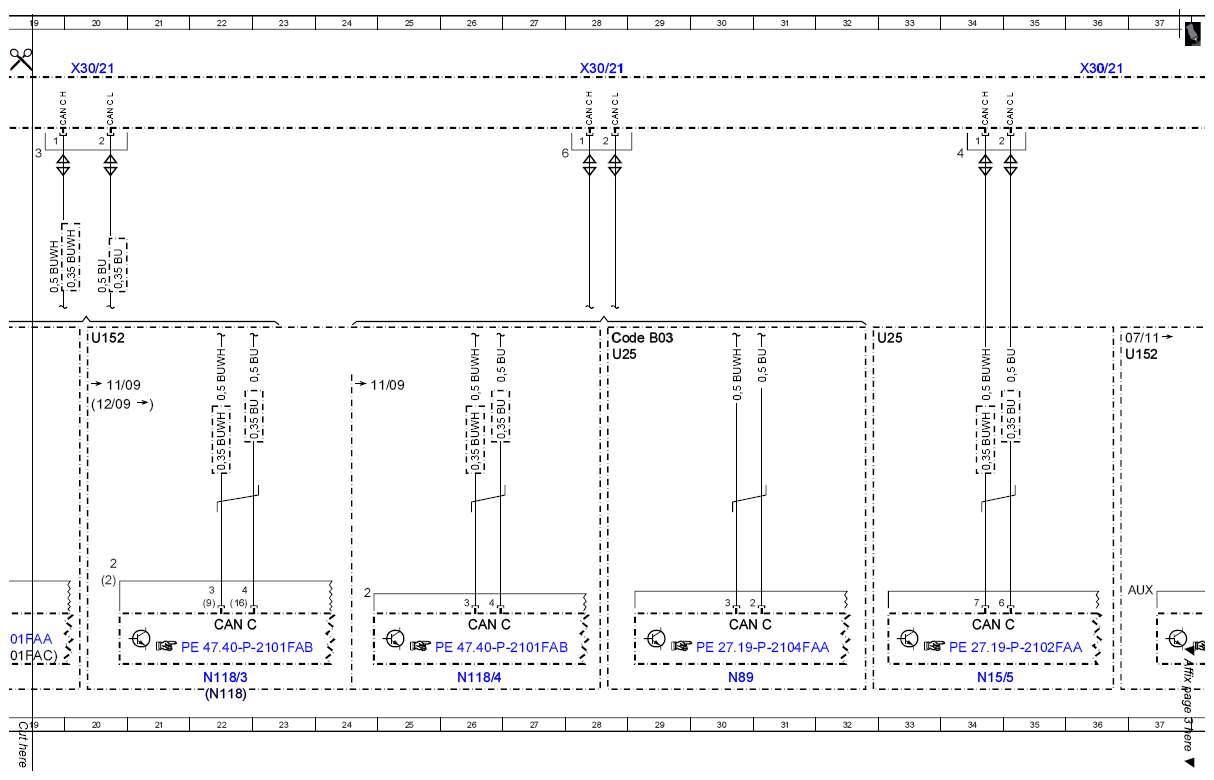

| N118/3 | Left fuel pump control unit | 22L |
| N118/4 | Right fuel pump control unit | 26L |

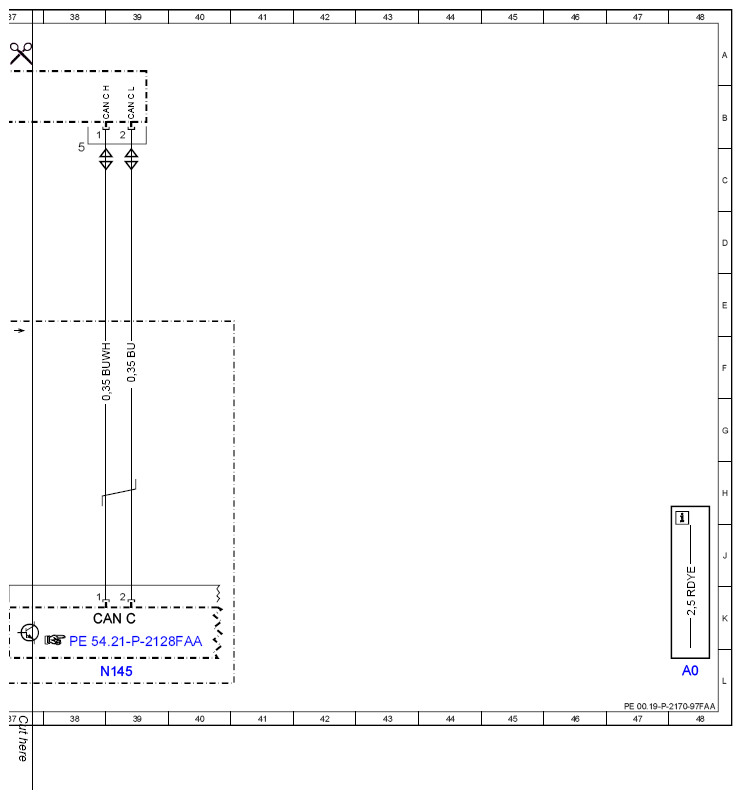

| N145 | Transmission mode control unit | 39L |
| N15/3 | Electronic transmission control unit | 10L |
| N15/5 | Electronic selector lever module control unit | 34L |
| N89 | Transmission oil auxiliary pump control unit | 30L |
| U1018 | Valid for gasoline engine 276 | 16F |
| U13 | Valid for right-hand drive vehicles | 5F |
| U152 | Valid for gasoline engine 156 | 20F |
| U152 | Valid for gasoline engine 156 | 36F |
| U24 | Valid for manual transmission | 6F |
| U25 | Valid for automatic transmission | 6F |
| U25 | Valid for automatic transmission | 28F |
| U25 | Valid for automatic transmission | 32F |
| U490 | Valid for 7-speed automatic transmission | 12F |
| U527 | Valid for electronic transmission control | 8F |
| U59 | Valid for model 204.9 | 6F |
| U74 | Valid for diesel engines | 7F |
| U75 | Valid for gasoline engines | 7F |
| U75 | Valid for gasoline engines | 16F |
| U819 | Valid for gasoline engine 272 | 7F |
| U880 | Valid for diesel engine 642 | 16F |
| U948 | Valid for diesel engine 651 | 16F |
| W15/6 | Ground point (left front footwell CAN) | 5L |
| W15/8 | Ground point (right front footwell CAN) | 7L |
| X30/21 | Drive train CAN voltage distributor electrical connector | 4A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 12A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 20A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 28A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 36A |
| Y3/8 | Fully integrated transmission control unit | 14L |
