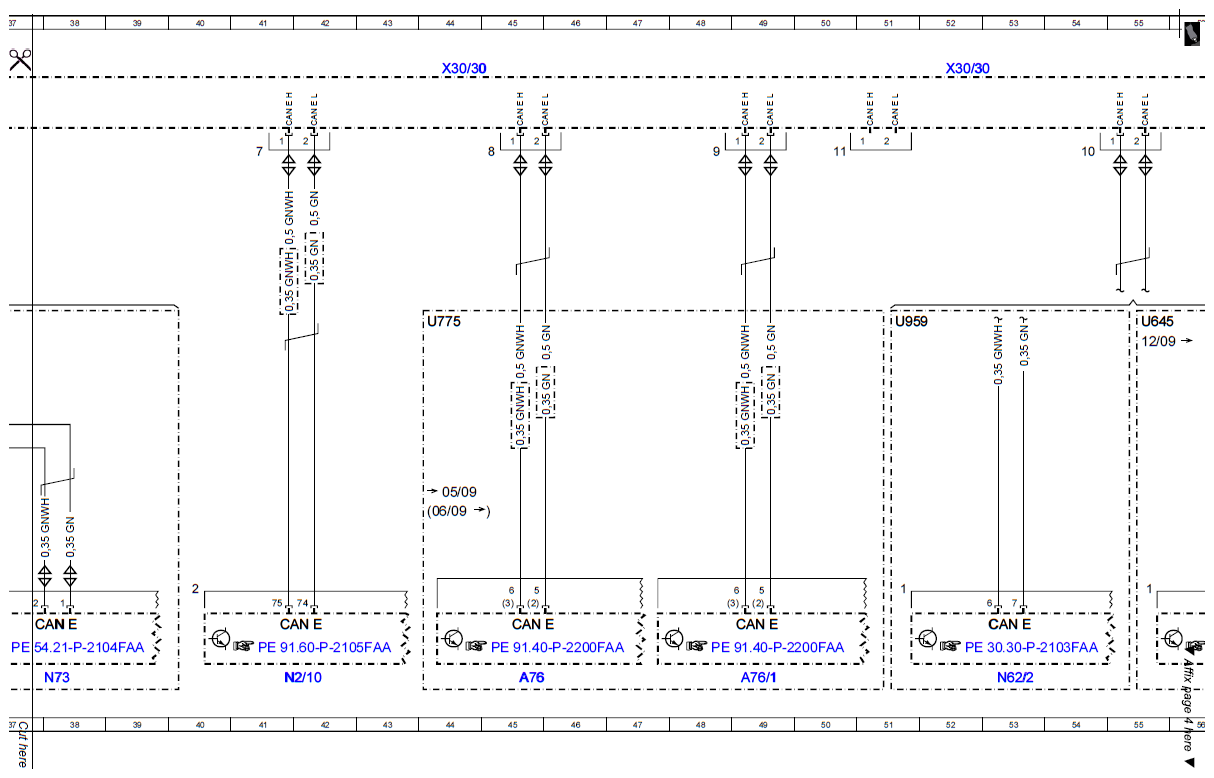

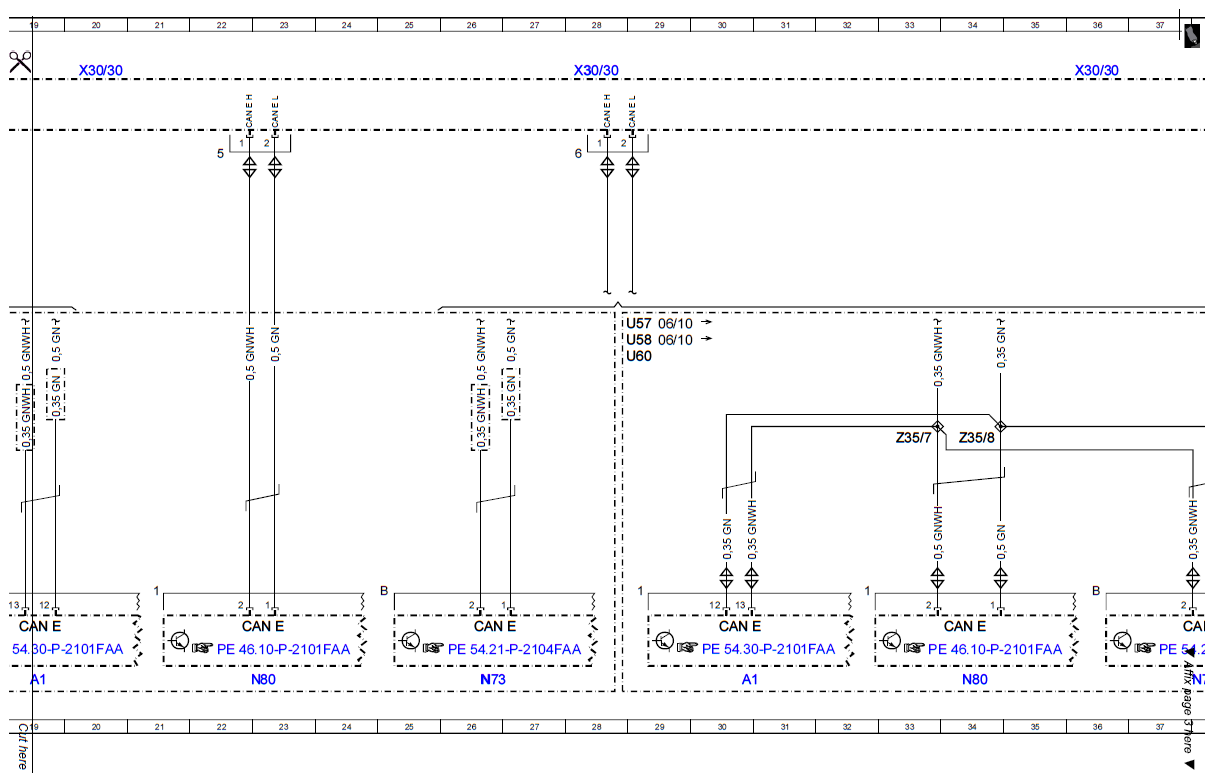

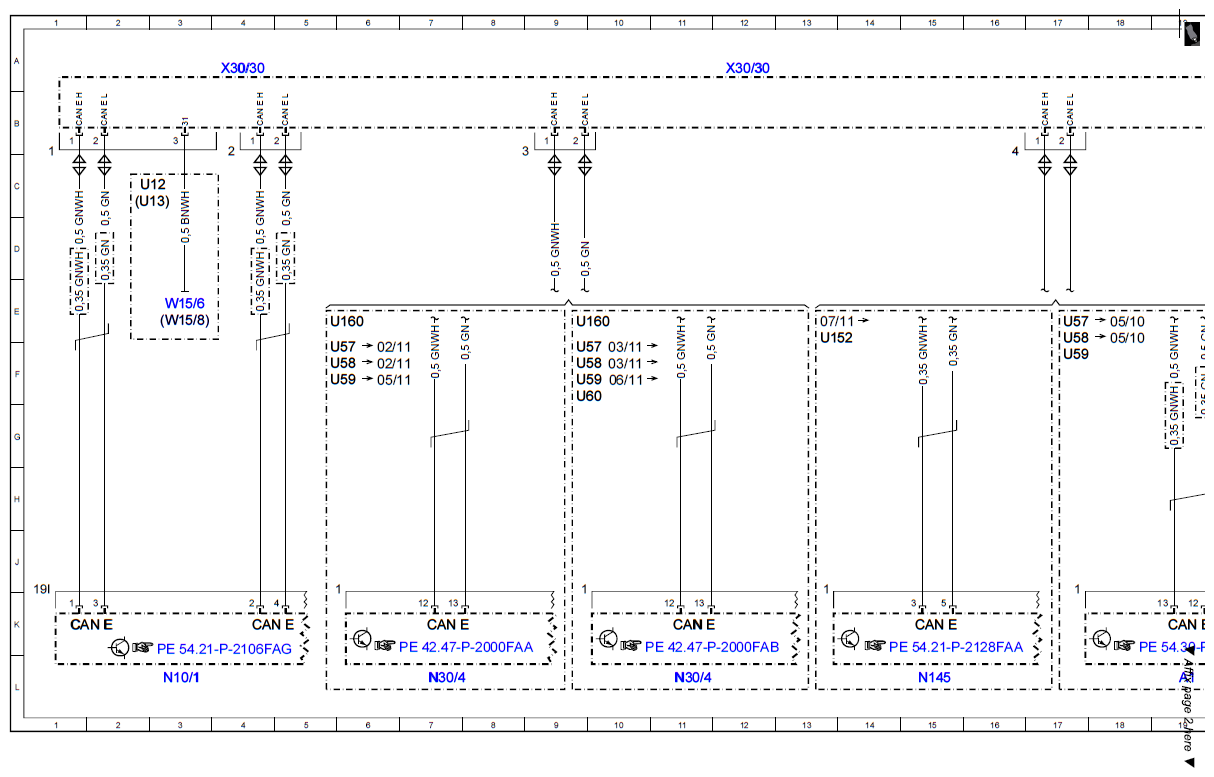

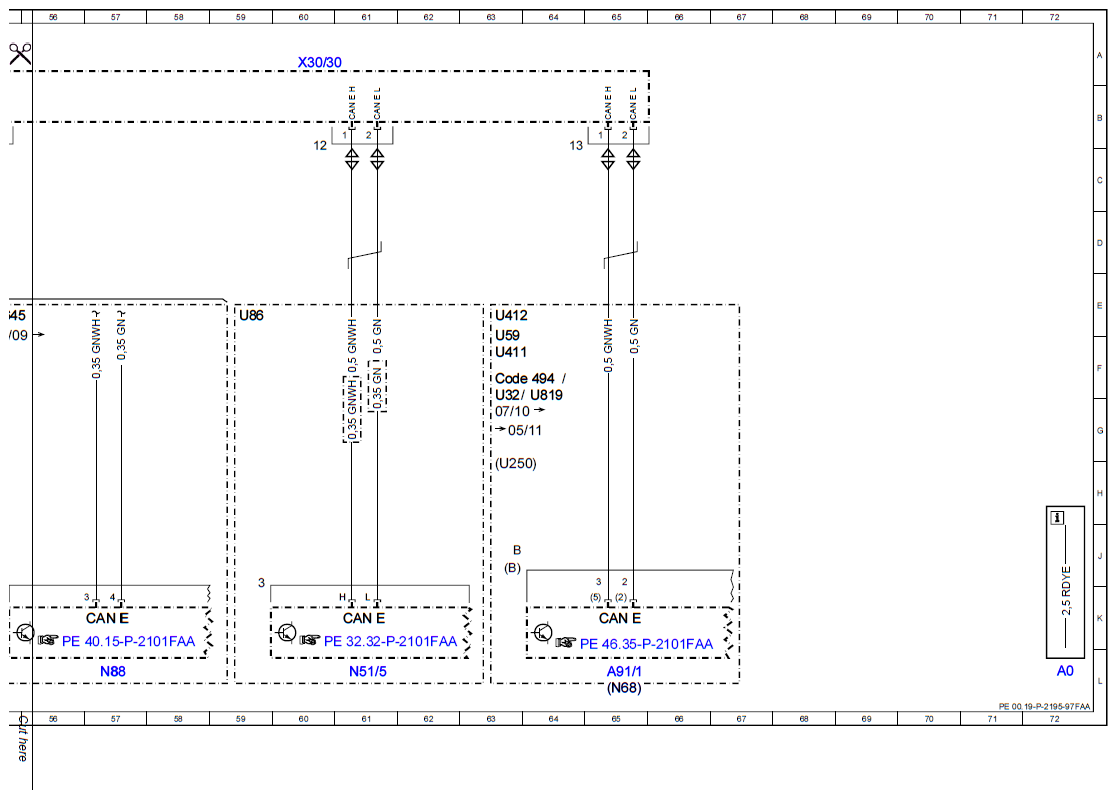

Wiring diagram of chassis CAN - PE00.19-P-2195-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A1 | Instrument cluster | 19L |
| A1 | Instrument cluster | 30L |
| A76 | Left front reversible emergency tensioning retractor | 45L |
| A76/1 | Right front reversible emergency tensioning retractor | 49L |
| A91/1 | Electrohydraulic power steering | 65L |
| CAN E | Chassis CAN | 1K |
| CAN E | Chassis CAN | 4K |
| CAN E | Chassis CAN | 7K |
| CAN E | Chassis CAN | 11K |
| CAN E | Chassis CAN | 15K |
| CAN E | Chassis CAN | 19K |
| CAN E | Chassis CAN | 23K |
| CAN E | Chassis CAN | 26K |
| CAN E | Chassis CAN | 30K |
| CAN E | Chassis CAN | 34K |
| CAN E | Chassis CAN | 38K |
| CAN E | Chassis CAN | 41K |
| CAN E | Chassis CAN | 45K |
| CAN E | Chassis CAN | 49K |
| CAN E | Chassis CAN | 53K |
| CAN E | Chassis CAN | 57K |
| CAN E | Chassis CAN | 65K |
| CAN E | Chassis CAN | 61K |
| Code | 494 USA version | 63F |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N145 | Transmission mode control unit | 15L |
| N2/10 | Supplemental restraint system control unit | 42L |
| N30/4 | Electronic Stability Program control unit | 7L |
| N30/4 | Electronic Stability Program control unit | 11L |
| N51/5 | Adaptive damping system control unit | 61L |
| N62/2 | Video and radar sensor system control unit | 53L |
| N68 | Electrical power steering control unit | 65L |
| N73 | Electronic ignition switch control unit | 26L |
| N73 | Electronic ignition switch control unit | 38L |
| N80 | Steering column module control unit | 23L |
| N80 | Steering column module control unit | 34L |
| N88 | Tire pressure monitor control unit | 57L |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 2C |
| U152 | Valid for gasoline engine 156 | 13F |
| U160 | Valid for ESP without adaptive damping system | 5E |
| U160 | Valid for ESP without adaptive damping system | 9E |
| U32 | Valid for Canada | 63G |
| U411 | Valid for diesel engine 651 with EHPS | 63F |
| U412 | Valid for electrohydraulic power steering | 63E |
| U57 | Valid for model 204.2 | 5F |
| U57 | Valid for model 204.2 | 9F |
| U57 | Valid for model 204.2 | 17E |
| U57 | Valid for model 204.2 | 28E |
| U58 | Valid for model 204.0 | 5F |
| U58 | Valid for model 204.0 | 9F |
| U58 | Valid for model 204.0 | 17F |
| U58 | Valid for model 204.0 | 28F |
| U59 | Valid for model 204.9 | 9F |
| U59 | Valid for model 204.9 | 5F |
| U59 | Valid for model 204.9 | 17F |
| U59 | Valid for model 204.9 | 63F |
| U60 | Valid for model 204.3 | 9F |
| U60 | Valid for model 204.3 | 28F |
| U645 | Valid for tire pressure monitor | 55E |
| U775 | Valid for emergency tensioning retractor | 44E |
| U819 | Valid for gasoline engine 272 | 64G |
| U86 | Valid for adaptive damping system and ESP | 59E |
| U959 | Valid for video and radar sensor system control unit | 51E |
| W15/6 | Ground point (left front footwell CAN) | 3E |
| W15/8 | Ground point (right front footwell CAN) | 3E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 4A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 12A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 20A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 28A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 36A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 44A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 52A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 60A |
| Z35/7 | CAN bus high cockpit bus node | 33G |
| Z35/8 | CAN bus low cockpit bus node | 34G |
