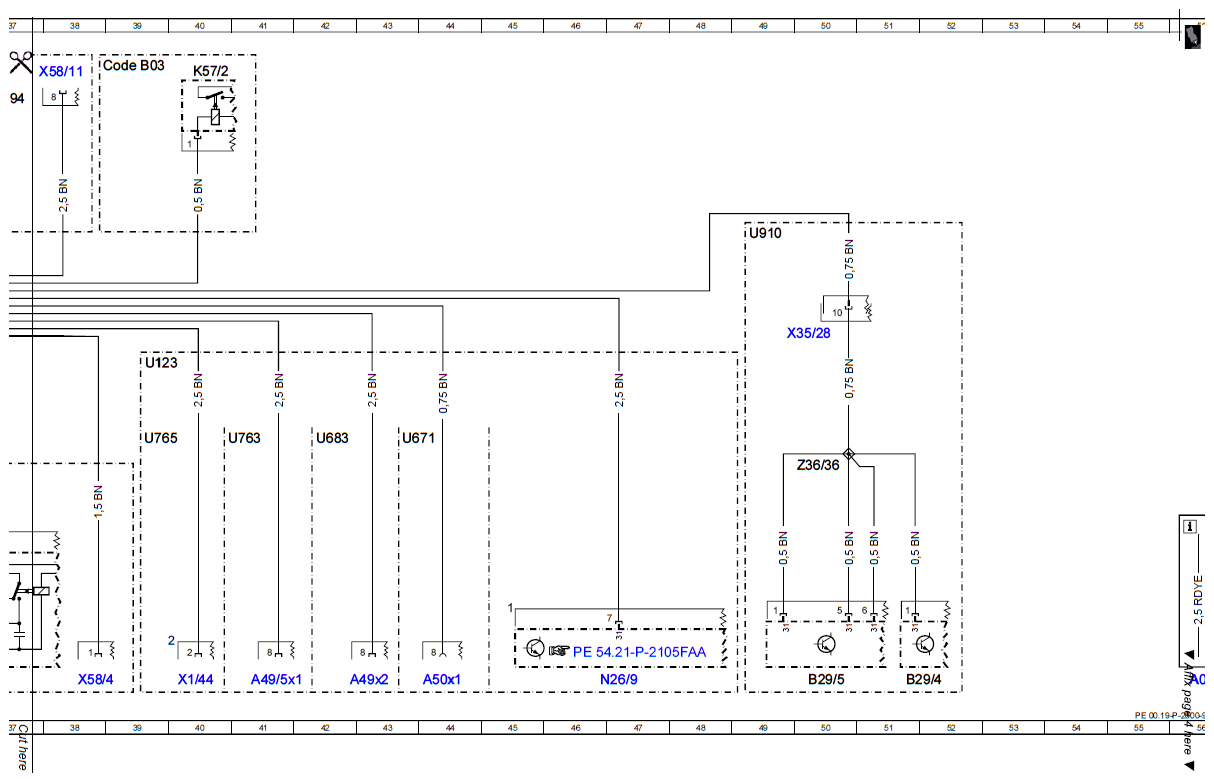

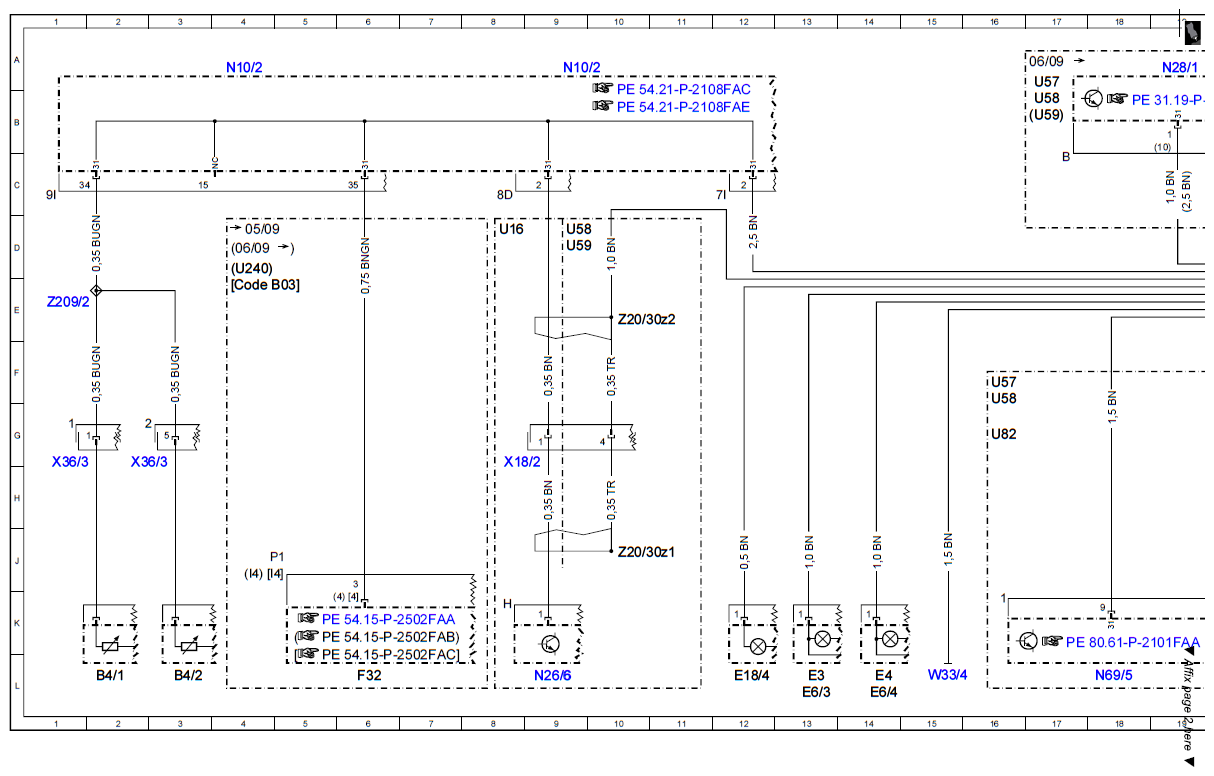

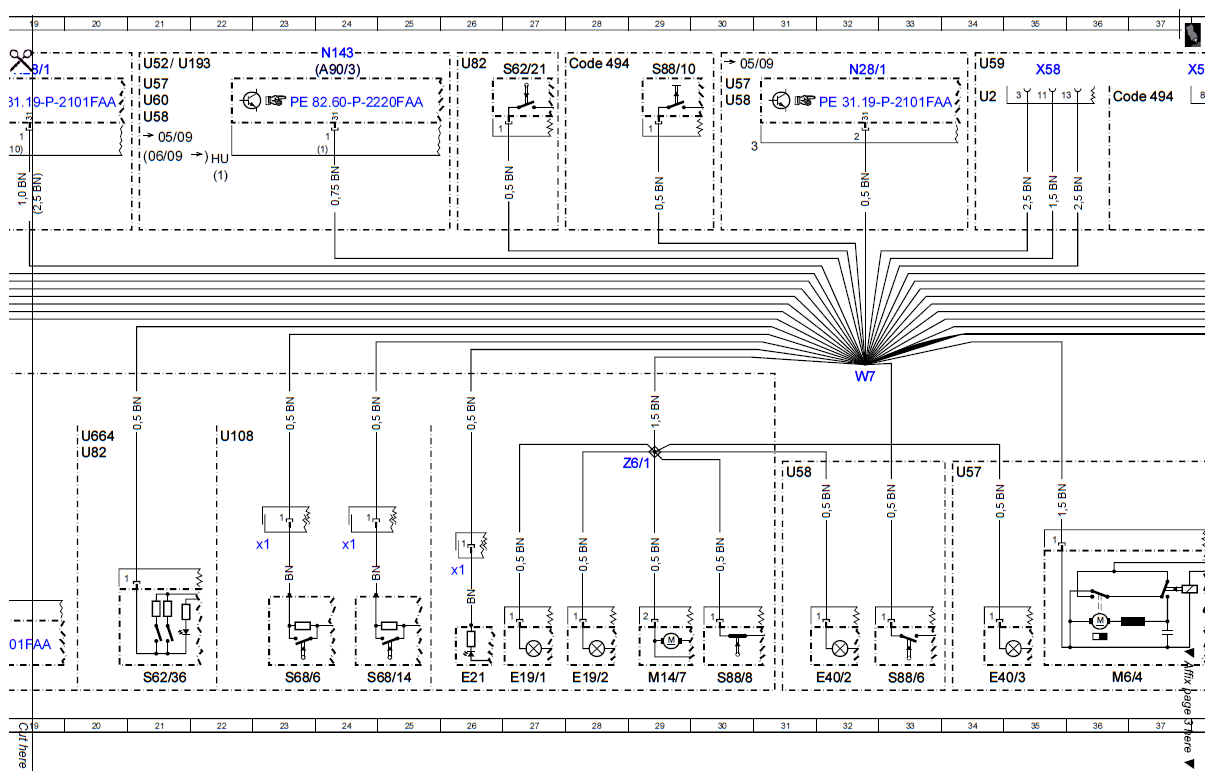

Wiring diagram for ground wiring - PE00.19-P-2800-97FAI
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

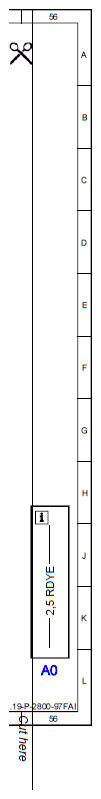

| A0 | Color code key | 56L |
| A49/5x1 | Radio data transmission keyboard electrical connector | 141L |
| A49x2 | Two-way radio electrical connector | 43L |
| A50x1 | Taximeter electrical connector | 44L |
| A90/3 | TV digital tuner | 24A |
| B29/4 | Left rear bumper intelligent radar sensor | 51L |
| B29/5 | Right rear bumper intelligent radar sensor | 50L |
| B4/1 | Left fuel level indicator sensor | 2L |
| B4/2 | Right fuel level indicator sensor | 3L |
| Code | 494 USA version | 28A |
| Code | 494 USA version | 36B |
| Code | B03 ECO start/stop function | 4E |
| Code | B03 ECO start/stop function | 38A |
| E18/4 | Right luggage compartment lamp | 12L |
| E19/1 | Left license plate lamp | 27L |
| E19/2 | Right license plate lamp | 28L |
| E21 | Center stop lamp | 26L |
| E21x1 | Center brake lamp electrical connector | 26J |
| E3 | Left rear lamp unit | 13L |
| E4 | Right rear lamp unit | 14L |
| E40/2 | Left tailgate ambient lamp and warning lamp | 32L |
| E40/3 | Right tailgate ambient lamp and warning lamp | 34L |
| E6/3 | Left rear side-marker lamp | 13L |
| E6/4 | Right rear side-marker lamp | 14L |
| F32 | Front electrical prefuse box | 6L |
| K57/2 | Additional battery relay | 40A |
| M14/7 | Tailgate central locking motor | 29L |
| M6/4 | Tailgate wiper motor | 36L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 9A |
| N143 | TV tuner control unit | 24A |
| N26/6 | Interior protection and tow-away protection control unit | 9L |
| N26/9 | Special-purpose vehicle multifunction control unit | 47L |
| N28/1 | Trailer recognition control unit | 19A |
| N28/1 | Trailer recognition control unit | 32A |
| N69/5 | KEYLESS-GO control unit | 18L |
| S62/21 | Tailgate KEYLESS GO button | 27A |
| S62/36 | Tailgate control button | 21L |
| S68/14 | Center rear seat belt buckle switch | 25L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 24J |
| S68/6 | Right rear seat belt buckle switch | 23L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 23J |
| S88/10 | Trunk lid emergency opening switch | 29A |
| S88/6 | Tailgate contact switch | 33L |
| S88/8 | Tailgate external operation switch | 30L |
| U108 | Valid for rear seat belt buckles | 22G |
| U123 | Valid for taxi electrical system | 39F |
| U16 | Valid for ATA [EDW] with tow-away protection and interior protection | 8D |
| U193 | Valid for TV and Video | 21A |
| U2 | Valid for all except USA | 34B |
| U240 | Valid for all except ECO start/stop function | 4D |
| U52 | Valid for Japan | 21A |
| U57 | Valid for model 204.2 | 16F |
| U57 | Valid for model 204.2 | 17A |
| U57 | Valid for model 204.2 | 21A |
| U57 | Valid for model 204.2 | 34H |
| U57 | Valid for model 204.2 | 30A |
| U58 | Valid for model 204.0 | 16F |
| U58 | Valid for model 204.0 | 9D |
| U58 | Valid for model 204.0 | 17B |
| U58 | Valid for model 204.0 | 21B |
| U58 | Valid for model 204.0 | 31H |
| U58 | Valid for model 204.0 | 30B |
| U59 | Valid for model 204.9 | 9D |
| U59 | Valid for model 204.9 | 17B |
| U59 | Valid for model 204.9 | 34A |
| U60 | Valid for model 204.3 | 21B |
| U664 | Valid for automatic tailgate | 20G |
| U671 | Valid for taximeter preinstallation | 43G |
| U683 | Valid for preinstallation for two-way radio system in glove compartment | 42G |
| U763 | Valid for preinstallation for two-way radio system in trunk | 40G |
| U765 | Valid for taxi peripheral device preinstallation | 39G |
| U82 | Valid for KEYLESS GO | 16G |
| U82 | Valid for KEYLESS GO | 20G |
| U82 | Valid for KEYLESS GO | 26A |
| U910 | Valid for Blind Spot Assist | 49D |
| W33/4 | Fuel tank filler neck ground point | 15L |
| W7 | Right wheelhouse trunk ground point | 32F |
| X1/44 | Taxi peripheral device electrical connector | 40L |
| X18/2 | Interior/roof electrical connector | 8H |
| X35/28 | Rear bumper PARKTRONIC electrical connector | 50E |
| X36/3 | Fuel pump harness electrical connector | 1H |
| X36/3 | Fuel pump harness electrical connector | 3H |
| X58 | Trailer socket | 35A |
| X58/11 | Trailer socket (7-pin) | 38A |
| X58/4 | Load compartment socket | 38L |
| Z20/30z1 | Tracer wire connector sleeve | 10J |
| Z20/30z2 | Tracer wire connector sleeve | 10E |
| Z209/2 | Fuel pump control unit connector sleeve | 1E |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 50G |
| Z6/1 | Circuit 31 connector sleeve | 29G |
