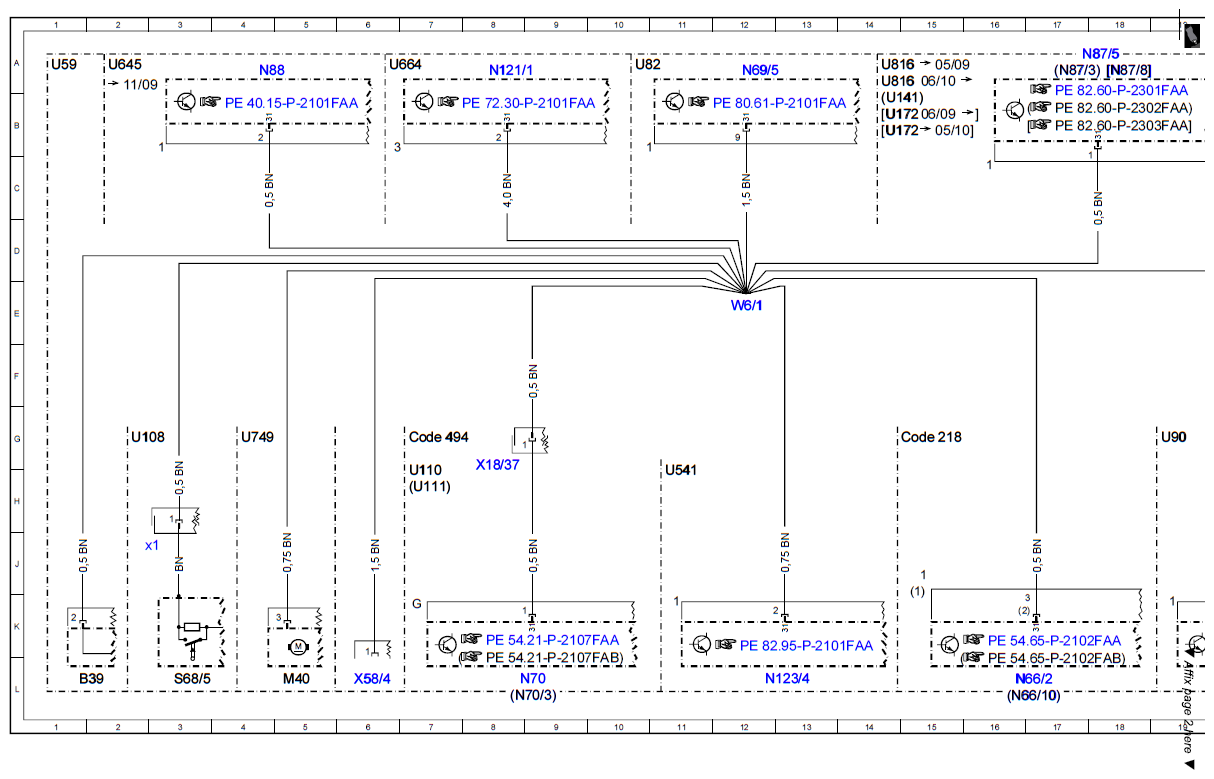

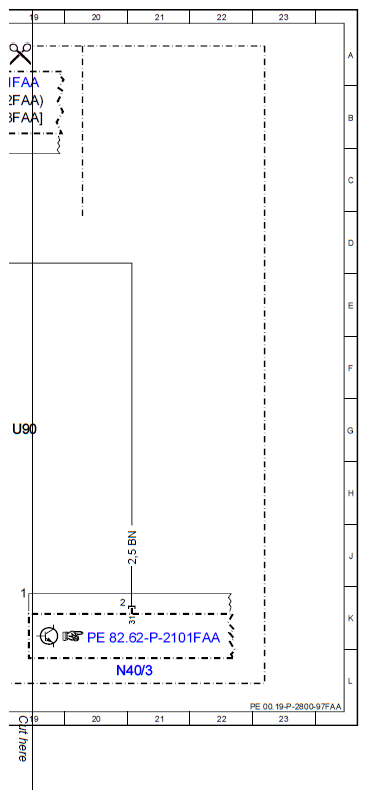

Wiring diagram for ground wiring - PE00.19-P-2800-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| B39 | Left rear window glass breakage sensor | 1L |
| Code | 218 Backup camera | 15G |
| Code | 494 USA version | 7G |
| M40 | Multicontour seat pneumatic pump | 5L |
| N121/1 | Tailgate control unit | 8A |
| N123/4 | Emergency call system control unit | 13L |
| N40/3 | Sound system amplifier control unit | 20L |
| N66/10 | Backup camera voltage supply module | 16L |
| N66/2 | Backup camera control unit | 16L |
| N69/5 | KEYLESS-GO control unit | 12A |
| N70 | Overhead control panel control unit | 9L |
| N70/3 | Overhead control panel electronics | 8L |
| N87/3 | Digital Audio Broadcasting control unit | 17A |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 18A |
| N87/8 | SDAR control unit / high definition tuner | 18A |
| N88 | Tire pressure monitor control unit | 4A |
| S68/5 | Left rear seat belt buckle switch | 3L |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 3J |
| U108 | Valid for rear seat belt buckles | 2G |
| U110 | Valid for overhead control panel with CAN | 7H |
| U111 | Valid for overhead control panel without CAN | 7H |
| U141 | Valid for Digital Audio Broadcasting | 14B |
| U172 | Valid for high-definition tuner control unit | 14B |
| U172 | Valid for high-definition tuner control unit | 14B |
| U541 | Valid for TELEAID emergency call system | 11H |
| U59 | Valid for model 204.9 | 1A |
| U645 | Valid for tire pressure monitor | 2A |
| U664 | Valid for automatic tailgate | 6A |
| U749 | Valid for multicontour seat | 4G |
| U816 | Valid for satellite digital audio radio (SDAR) | 14A |
| U816 | Valid for satellite digital audio radio (SDAR) | 14A |
| U82 | Valid for KEYLESS GO | 10A |
| U90 | Valid for sound system | 19G |
| W6/1 | Left taillamp trunk ground point | 12E |
| X18/37 | Emergency call system button electrical connector | 8H |
| X58/4 | Load compartment socket | 6L |
