Routing diagram of poly V-belt - AR13.22-P-3902-02VA

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

Shown on engine 272.963

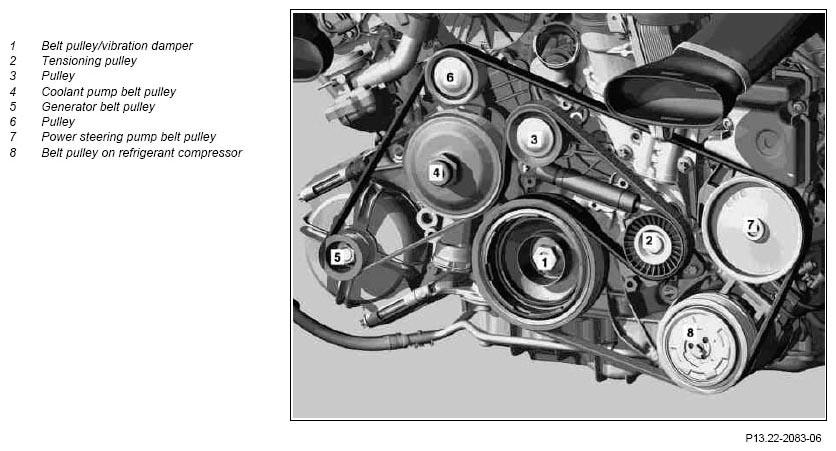

Fig 1: Routing Diagram Of Poly V-Belt

Courtesy of MERCEDES-BENZ USA
