Remove/install poly V-belt - AR13.22-P-1202QK

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 271.940 in MODEL 203.042/242/742, 209.342/442

ENGINE 271.941 in MODEL 211.042/242

ENGINE 271.946 in MODEL 203.046/246/746

ENGINE 271.948 in MODEL 203.040/240/740

ENGINE 271.942 in MODEL 203.043, 209.343, 203.243/743

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODEL 209.341/441

ENGINE 271.956 in MODEL 211.041/241

ENGINE 271.957 in MODEL 203.741

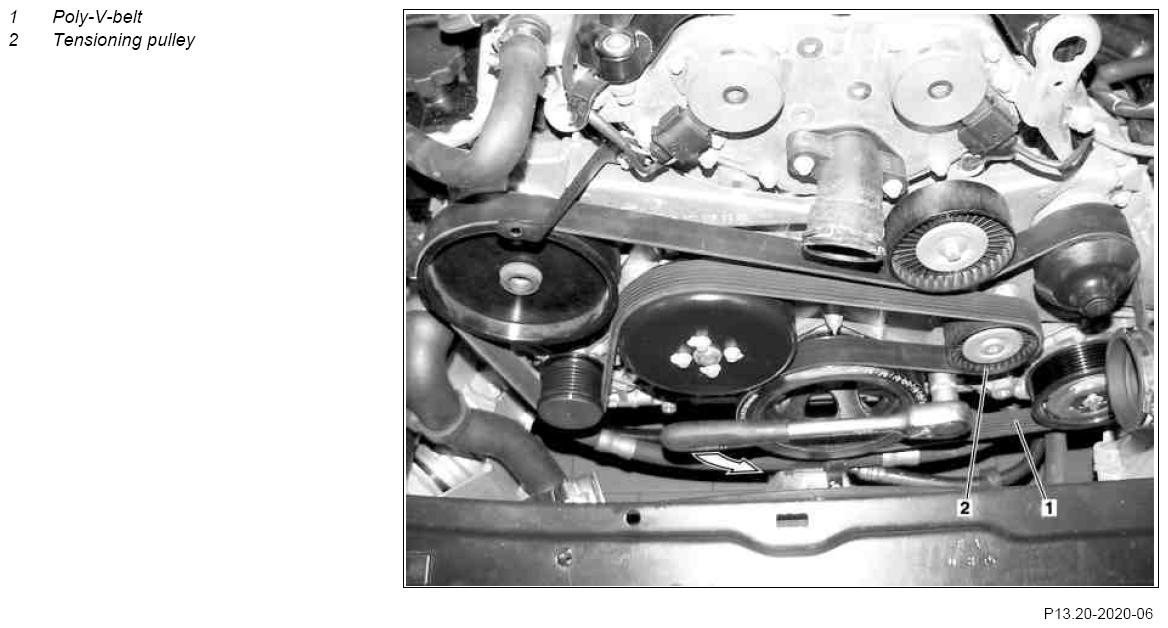

Fig 1: Identifying Poly V-Belt & Tensioning Pulley

Courtesy of MERCEDES-BENZ USA

	Removing
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209
		Model 211	AR88.40-P-1000T
2	Remove wideband silencer		AR09.41-P-6825T
3	Loosen poly-V-belt (1) and remove	Use the Torx recess below the tensioning pulley (2) for this purpose and swivel in anti-clockwise direction (arrow). Take off poly V-belt (1) and decelerate tensioning pulley (2).
	Checking
4	Inspect belt pulley sections and tensioning device	Installation: Check the belt pulley sections and the tensioning device for any damage and dirt and replace if necessary.
5	Check poly-V-belt (1)	Installation: Replace poly-V-belt (1) if necessary.
	Inspect poly V-belt for wear and damage		AP13.22-P-1352Z
	Install
6	Fit on poly V-belt (1), tension	Use the Torx recess below the tensioning pulley (2) for this purpose and swivel in anti-clockwise direction (arrow). Fit on poly-V-belt (1) and slacken the tensioning pulley (2). Do not use belt wax or any similar products. Attach poly-V-belt according to the running diagram: Routing diagram of poly V-belt	AR13.22-P-3902-02QP
7	Install wide band silencer		AR09.41-P-6825T
8	Close engine hood	Model 203	AR88.40-P-1000P
		Model 209
		Model 211	AR88.40-P-1000T
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
9	Carry out engine test run
