Remove/install belt drive components - AR13.20-P-0001SX

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 (except 272.974) in MODEL 221

ENGINES 273 in MODEL 216

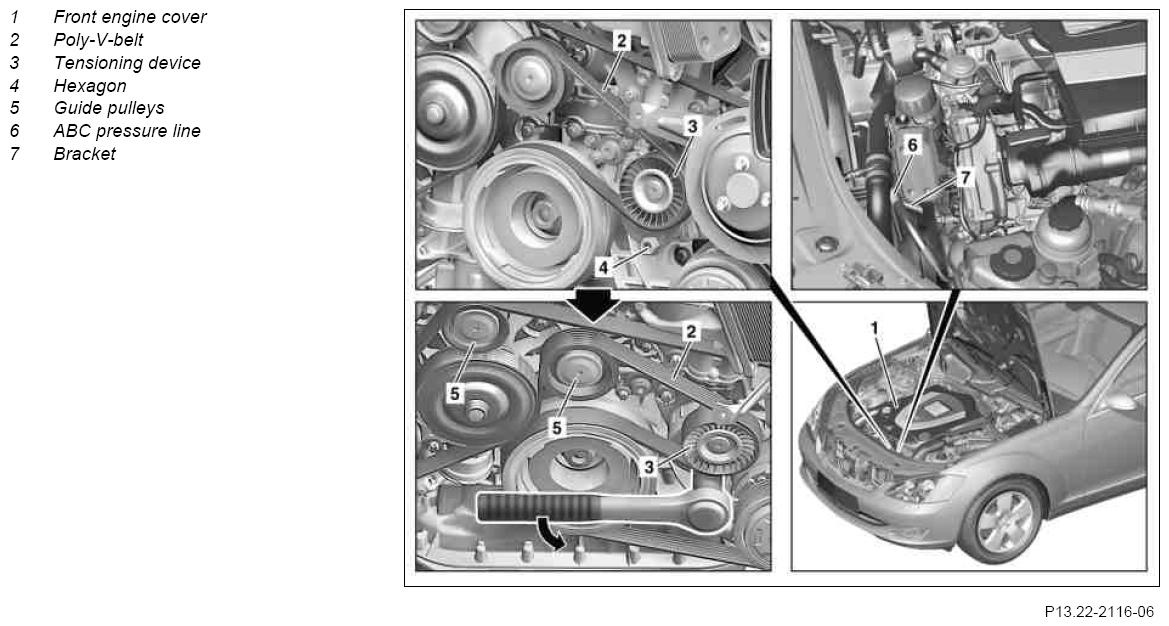

Fig 1: Identifying Belt Drive Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

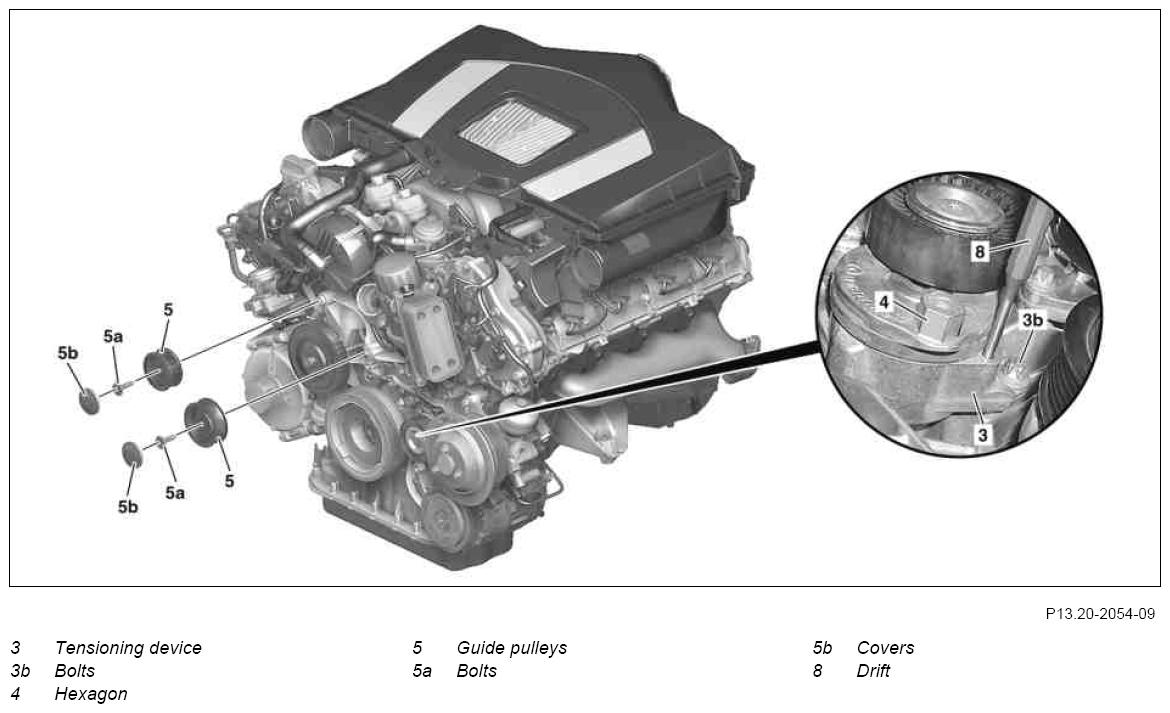

Fig 2: Identifying Belt Drive Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
1	Pull out front engine cover (1) from mounts
2	Detach pressure line (6) from bracket (7)	Vehicles with Active Body Control (Code 487) only.
3	Loosen poly-V belt (2) and remove	To do this swivel clamping device (3) on hexagon (4) counterclockwise (arrow), remove poly-V-belt (2) and slacken clamping device (3).
	Checking
4	Inspect belt pulley sections, tensioning device (3) and guide pulleys (5)	Check for damage, wear and dirt; replace if necessary.
5	Check poly-V belt (2) and replace if required
	Check visible area of poly-V belt for wear	AP13.22-P-1352SX
	Remove/install clamping device (3)	Only perform steps 6 through 9 for remove/install of clamping device (3).
6	Lock tensioning device (3)	Swivel clamping device (3) at hexagon (4) in an anti-clockwise direction and lock in place using drift (8).
7	Remove bolts (3b) and remove clamping device (3)		*BA13.25-P-1001-01P
8	Slacken tensioning device (3)	When replacing the clamping device (3) Clamp tensioning device (3) in a vise, swivel at hexagon (4) in an anti-clockwise direction, pull out drift (8) and slacken tensioning device (3). Installation: The tensioning device (3) can only be installed when locked.
9	Install in the reverse order
	Remove/install guide pulleys (5)	Only perform steps 10 through 12 for remove/install of guide pulleys (5).
10	Pry off covers (5b)
11	Remove bolts (5a) and remove guide pulleys (5)		*BA20.10-P-1004-01U
12	Install in the reverse order
	Install
13	Fit on and tension (2) as per routing diagram	To do this swivel clamping device (3) on hexagon (4) counterclockwise (arrow), fit on poly-V-belt (2) and slacken clamping device (3). Do not use wax or similar products, as this may cause poly-V belt (2) to slip.	AR13.22-P-3902-02SX
14	Install pressure line (6) to bracket (7)	Vehicles with Active Body Control (Code 487) only.
15	Install front engine cover (1)

BELT TENSIONING DEVICE

Number	Designation		Engine 272	Engine 273
BA13.25-P-1001-01P	Bolt from poly-V belt tensioning device to timing case cover	Nm	35	35

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation			Engine 272	Engine 273
BA20.10-P-1004-01U	Bolt, guide pulley between water pump and belt tensioner	Initial installation	Nm	35	35
	Bolt, guide pulley between water pump and belt tensioner	Follow-up operations	Nm	25	25
