Install upper front longitudinal member - AR62.20-P-1286-03P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

Install, adapt and fix in place upper front longitudinal member with vise grip pliers.
Mark separation point (area A).
Cut separation point with body saw (area A).
Remove section from upper front longitudinal member

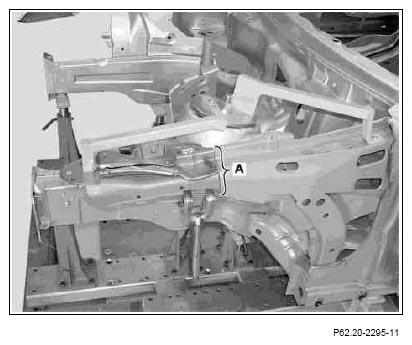

Fig 1: Identifying Upper Front Longitudinal Member Separation Point
Courtesy of MERCEDES-BENZ USA
Weld in top front longitudinal member with (area A).
Weld in top front longitudinal member with (areas B and C).
Remove check and welding device.
Grind down flat MIG weld

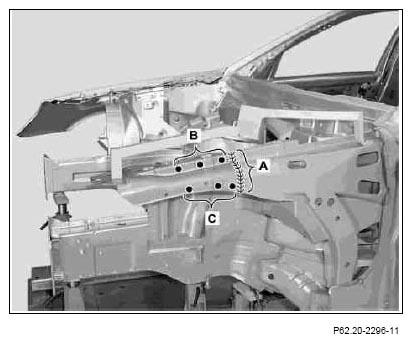

Fig 2: Identifying Top Front Longitudinal Member Welding Areas
Courtesy of MERCEDES-BENZ USA
