Gap dimensions at hoods, doors and covers - AR60.00-P-0700-01Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 209.3 | |||
|---|---|---|---|---|---|

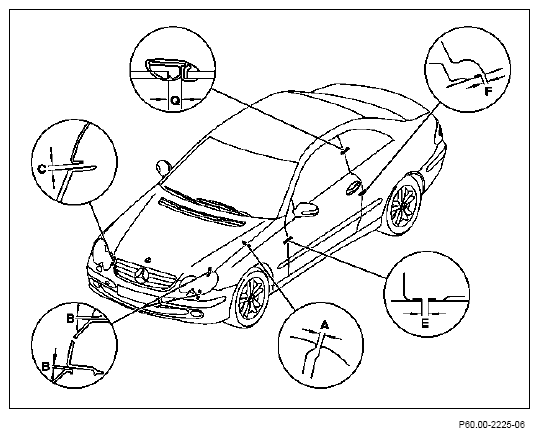

| BE60.00-P-1001-01G | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.5 (±0.5) |
| Engine hood to headlamp | Dimension "B" | mm | 3.5 (±0.5) | ||
| Engine hood to bumper | Dimension "C" | mm | 4 (±0.5) | ||
| Fig., see | AR60.00-P-0700-01Q | ||||
| BE60.00-P-1002-01G | Gap dimension | Front door to A-pillar | Dimension "D" | mm | - |
| Front door to fender | Dimension "E" | mm | 3.5 (-0.5/+1) | ||
| Front door to rear fender | Dimension "F" | mm | 3.5 (-0.5/+1) | ||
| Fig., see | AR60.00-P-0700-01Q | ||||

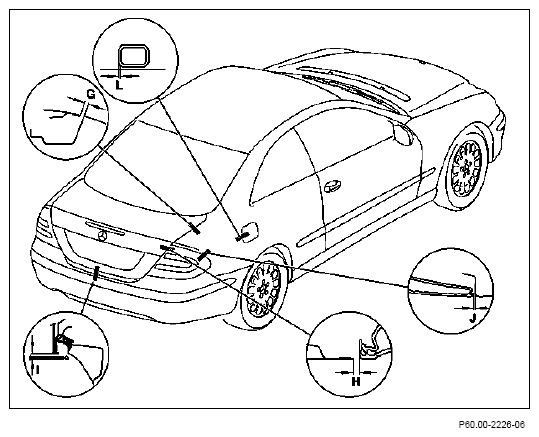

| BE60.00-P-1003-01G | Gap dimension | Trunk lid to top of rear fender | Dimension "G" | mm | 3.5 (±0.5) |
| Trunk lid to taillamp | Dimension "H" | mm | 3.5 (±0.5) | ||
| Trunk lid to bumper | Dimension "I" | mm | 5 (-1) | ||
| Rear fender to taillamp | Dimension "J" | mm | 2 (±0.5) | ||
| Trunk lid cover to taillamp | Dimension "K" | mm | - | ||
| Fig., see | AR60.00-P-0700-01Q | ||||
| BE60.00-P-1004-01G | Gap dimension | Fuel filler flap | Dimension "L" | mm | 3.5 (±0.5) |
| Fig., see | AR60.00-P-0700-01Q | ||||
| BE60.00-P-1005-01G | Gap dimension | Front door window to rear side window | Dimension "Q" | mm | 4.5 (±0.5) |
| Front door window to soft top | Dimension "R" | mm | - | ||
| Fig., see | AR60.00-P-0700-01Q | ||||
| BE60.00-P-1006-01G | Gap dimension | Soft top to windshield frame | Dimension "M" | mm | - |
| Soft top to soft top compartment cover | Dimension "N" | mm | - | ||
| Fig., see | - | ||||
| BE60.00-P-1007-01G | Gap dimension | Soft top compartment cover/rear fender | Dimension "O" | mm | - |
| Soft top compartment cover to trunk lid | Dimension "P" | mm | - | ||
| Fig., see | - | ||||
Adjust hoods, doors and lids as shown in drawing. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.
