617 589 00 40 00 Slip gauge holder - WS05.00-P-0124A

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 05/Set A

ENGINE 102.92/93/96/97/98/99, 110.92/98/99, 115.97, 116, 117, 615, 616, 617.91/93/95

Use/specification:

Slip gauge holder (colored red)

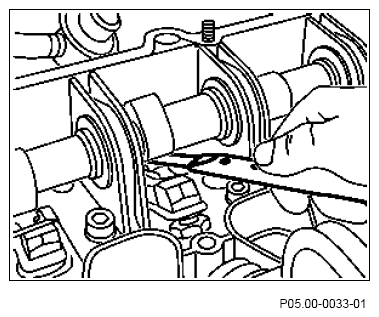

Fig 1: Measuring Camshaft

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Slip Gauge Holder (617 589 00 40 00)

Courtesy of MERCEDES-BENZ USA
