606 589 01 15 00 Drift punch - WS05.00-P-0157C

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 05/Set C

ENGINE 604, 605, 606 Intake/exhaust valves with 6 mm valve shaft diameter

Use:

6 mm drift punch for knocking valve guide into cylinder head (guide over 35 mm bucket tappet bore)

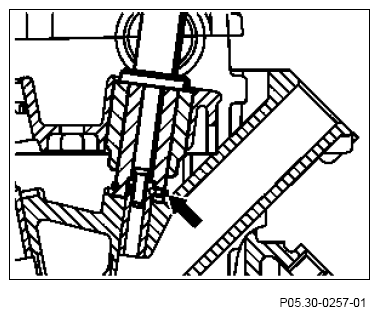

Fig 1: Knocking Valve Guide Into Cylinder Head

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Drift Punch (606 589 01 15 00)

Courtesy of MERCEDES-BENZ USA
