604 589 00 40 00 Retaining device - WS05.00-P-0169C

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 05/Set C

ENGINE 604, 605, 606

Use:

Retaining device for timing chain on chain sprocket for pulling timing chain into engine (retaining device prevents timing chain from jumping on chain sprocket)

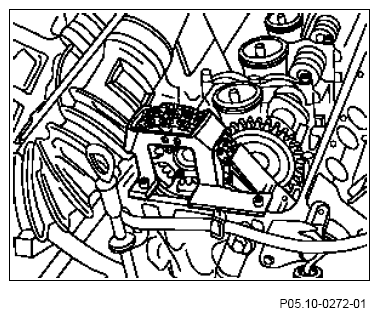

Fig 1: Pulling Timing Chain Into Engine

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Retaining Device (604 589 00 40 00)

Courtesy of MERCEDES-BENZ USA
