603 589 01 40 00 Holding wheel - WS05.00-P-0113B

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 05/Set B

ENGINE 601, 602.91/93/94/96/983, 603.91/93/96/97

Use/specification:

Holding wheel for timing chain

VEHICLEHEAVY TRUCKOFF ROAD VEHICLE

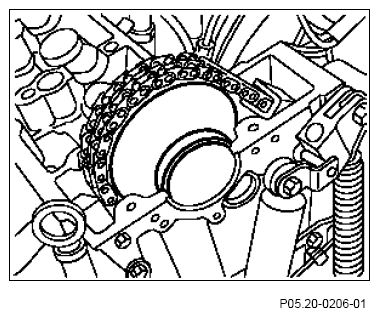

Fig 1: Holding Timing Chain
G07742788Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Holding Wheel (603 589 01 40 00)
G07742789Courtesy of MERCEDES-BENZ USA
