601 589 16 63 00 Thrust piece - WS05.00-P-0112B

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 05/Set B

ENGINE 102.92/93/96/97/98, 103, 601, 602, 603

Use/specification:

Thrust piece for lever pusher 111 589 18 61 00

Valve spring plate 32 mm dia.

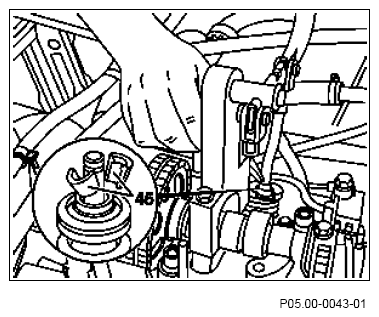

Fig 1: Placing Thrust Piece For Lever Pusher

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Thrust Piece (601 589 16 63 00)

Courtesy of MERCEDES-BENZ USA
