601 589 05 43 00 Drift punch - WS05.00-P-0156B

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 05/Set B

ENGINE 601/943, 602/980, 603 with intake and exhaust (valve shaft dia. 8 and 9 mm)

Use/specification:

Drift punch for pressing the valve stem seal with metal casing onto the valve guide

VEHICLEVAN

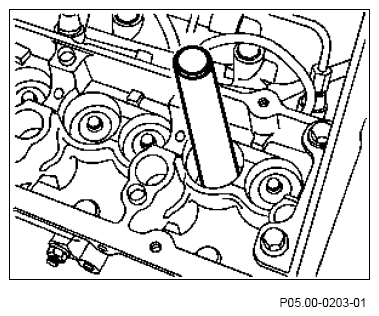

Fig 1: Pressing Valve Stem Seal Onto Valve Guide
G07742826Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Drift Punch (601 589 05 43 00)
G07742827Courtesy of MERCEDES-BENZ USA
