601 589 02 59 00 Supporting bridge - WS05.00-P-0107B

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 05/Set B

ENGINE 601, 602, 603, 602.981

Use:

Supporting bridge for lever depressor 111 589 18 61 00 for removing and installing valve springs

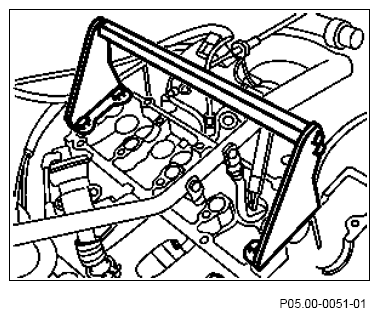

Fig 1: Removing/Installing Valve Springs

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Supporting Bridge (601 589 02 59 00)

Courtesy of MERCEDES-BENZ USA
