601 589 01 59 00 Assembly board - WS05.00-P-0104C

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 05/Set C

ENGINE 601, 602, 603

Use/specification:

Assembly board for clamping the cylinder head without camshaft

VEHICLEHEAVY TRUCKOFF ROAD VEHICLE

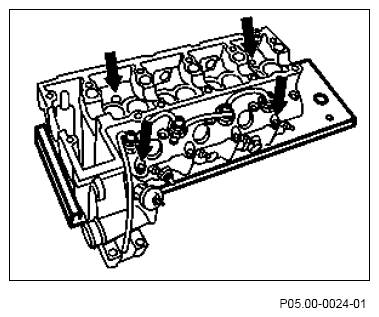

Fig 1: Clamping Cylinder Head
G07742773Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Assembly Board (601 589 01 59 00)
G07742774Courtesy of MERCEDES-BENZ USA
