Location and assignment of Z connector sleeves (line connections in wiring harness), cockpit - GF00.19-P-3000-03FAA

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 204

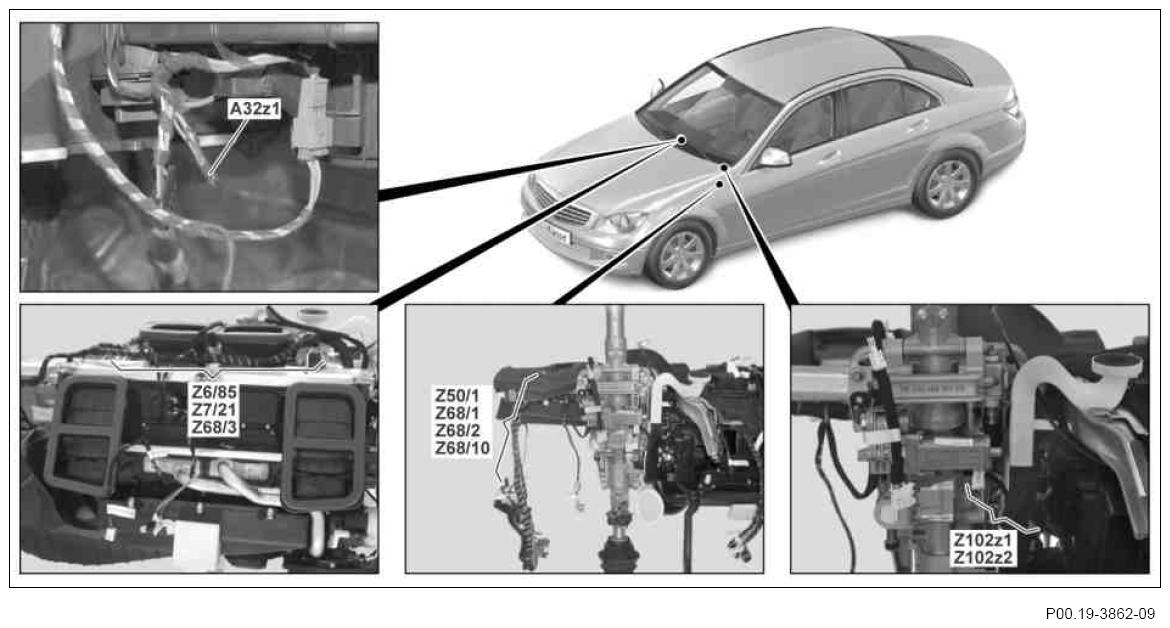

Fig 1: Locating Cockpit Z Connector Sleeves (1 Of 2)
G07673027Courtesy of MERCEDES-BENZ USA

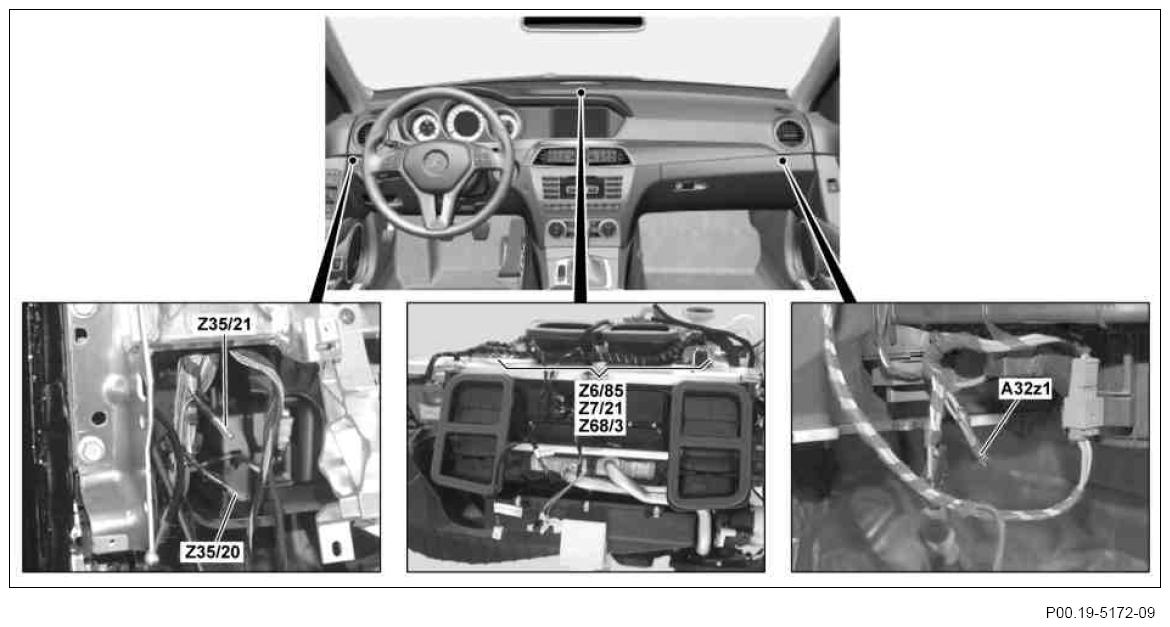

Fig 2: Locating Cockpit Z Connector Sleeves (2 Of 2)
G07673028Courtesy of MERCEDES-BENZ USA
