Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk right - GF00.19-P-3000-07FAA

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 204

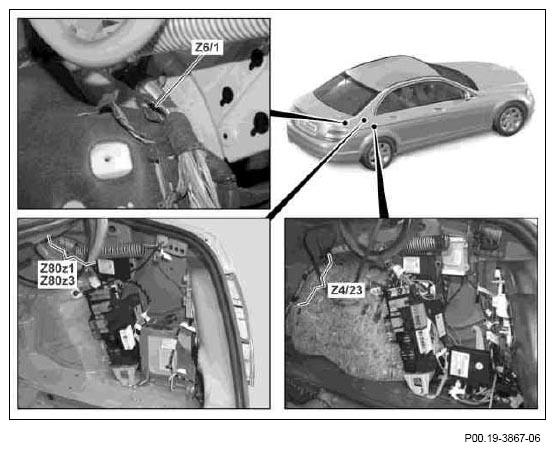

Fig 1: Locating Trunk Z Connector Sleeves - Right (1 Of 2)
G07071110Courtesy of MERCEDES-BENZ USA

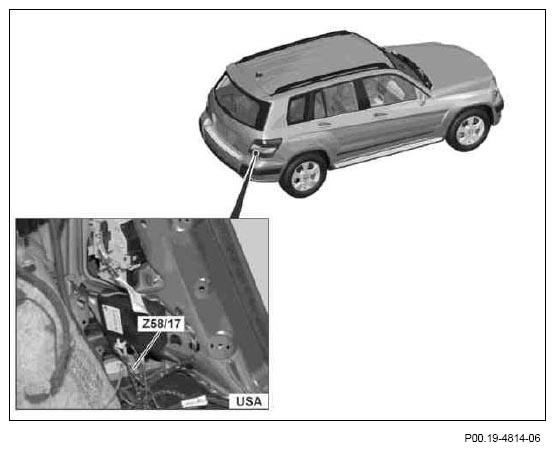

Fig 2: Locating Trunk Z Connector Sleeves - Right (2 Of 2)
G07071111Courtesy of MERCEDES-BENZ USA
