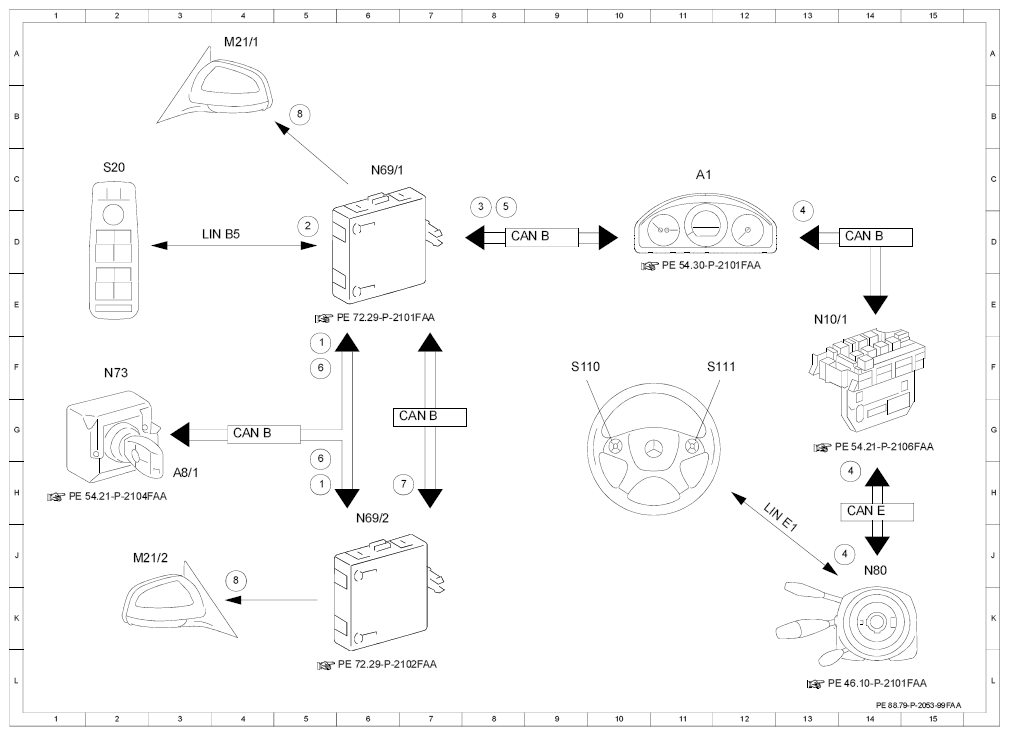

Function schematic for electric mirror folding - PE88.79-P-2053-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5 H |
| 1 | Circuit 15, status | 5 F |
| 2 | Driver-side switch group, status | 5 D |
| 3 | Vehicle speed, signal | 8 D |
| 4 | Multifunction steering wheel button group, signal | 13 D |
| 4 | Multifunction steering wheel button group, signal | 14 J |
| 4 | Multifunction steering wheel button group, signal | 14 H |
| 5 | Automatic power folding mirrors, status | 8 D |
| 6 | Central locking (CL[ZV]), status | 5 H |
| 6 | Central locking (CL[ZV]), status | 5 F |
| 7 | Outside mirror actuator motor, request | 6 H |
| 8 | Outside mirror actuator motor, actuation | 4 K |
| 8 | Outside mirror actuator motor, actuation | 5 B |
| A1 | Instrument cluster | 11 C |
| A8/1 | Transmitter key | 3 H |
| CAN B | Interior CAN | 4 G |
| CAN B | Interior CAN | 6 G |
| CAN B | Interior CAN | 8 D |
| CAN B | Interior CAN | 14 D |
| CAN E | Chassis CAN | 14 H |
| LIN B5 | Left door LIN | 3 D |
| LIN E1 | Steering LIN | 12 H |
| M21/1 | Left outside mirror | 4 A |
| M21/2 | Right outside mirror | 2 J |
| N10/1 | Front SAM control unit with fuse and relay module | 13 E |
| N69/1 | Left front door control unit | 6 C |
| N69/2 | Right front door control unit | 6 J |
| N73 | Electronic ignition switch control unit | 2 F |
| N80 | Steering column module control unit | 14 J |
| S110 | Left multifunction steering wheel button group | 9 F |
| S111 | Right multifunction steering wheel button group | 11 F |
| S20 | Driver-side power window and outside mirror adjustment switch group | 2 C |
