Electrical function schematic, trigger heating mode for departure time - PE83.70-P-2058-97FAA

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
1 Circuit 15, status 5F
10 Heat, request 7E
11 Fuel pump, actuation 7H
12 Stationary heater switchover valve, actuation 5H
13 Coolant circulation pump, request 12E
14 Coolant circulation pump, actuation 15G
15 Blower motor, request 15C
16 Blower motor, actuation 17C
17 Fuel level, signal 7F
17 Fuel level, signal 11G
2 Heating duration, request 10B
3 Interior temperature sensor, signal 14D
3 Interior temperature sensor, signal 14B
3 Interior temperature sensor, signal
4 Outside temperature sensor, signal 13F
4 Outside temperature sensor, signal 12D
5 Heating duration, signal 7B
6 Start heating/ventilation, signal 6E
7 Heating/ventilation, status 7E
7 Heating/ventilation, status 11D
8 Departure time menu, message 6C
9 Stationary heater status indication, request 12K
9 Stationary heater status indication, request 11F
A1 Instrument cluster 6B
A32m1 Blower motor 17C
A32n1 Blower regulator 15C
A6n1 Stationary heater control unit 6E
B10/4 Interior temperature sensor 21C
B14 Outside temperature sensor 15F
CAN B Interior CAN 17E
CAN B Interior CAN 9F
CAN B Interior CAN 9B
CAN B Interior CAN 9E
CAN B Interior CAN 6D
CAN B Interior CAN 12D
CAN B Interior CAN 3E
CAN E Chassis CAN 2E
CAN E Chassis CAN 9J
Code 414 Electric glass tilting/sliding roof 18D
Code 580 Automatic air conditioning 11A
Code 581 Comfort automatic air conditioning 11A
LIN 1 Instrument panel LIN 12J
M13/5 Coolant circulation pump 15G
N10/1 Front SAM control unit with fuse and relay module 12E
N22/7 Automatic air conditioning control and operating unit 12B
N70 Overhead control panel control unit 19E
N70/3 Overhead control panel electronics 19H
N70/3b1 Interior temperature sensor with integrated fan 20H
N70b1 Interior temperature sensor with integrated fan 20E
N72/1 Upper control panel control unit 12K
N72/1s30 Stationary heater button 11K
N73 Electronic ignition switch control unit 3C
U111 Valid for overhead control panel without CAN 18H
Y16 Stationary heater switchover valve 5J
Y23 Stationary heater fuel pump 7J

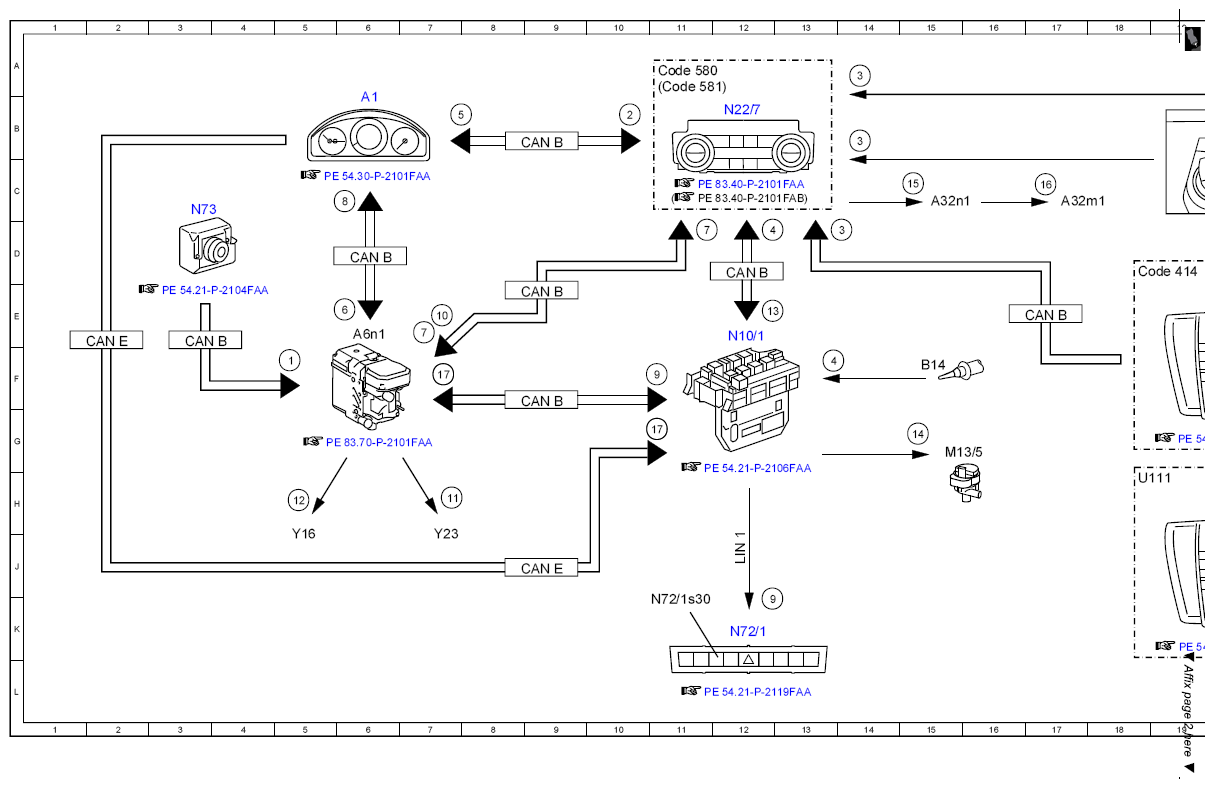

Fig 1: Trigger Heating Mode For Departure Time - Electrical Function Schematic (1 Of 2)
G07671213Courtesy of MERCEDES-BENZ USA

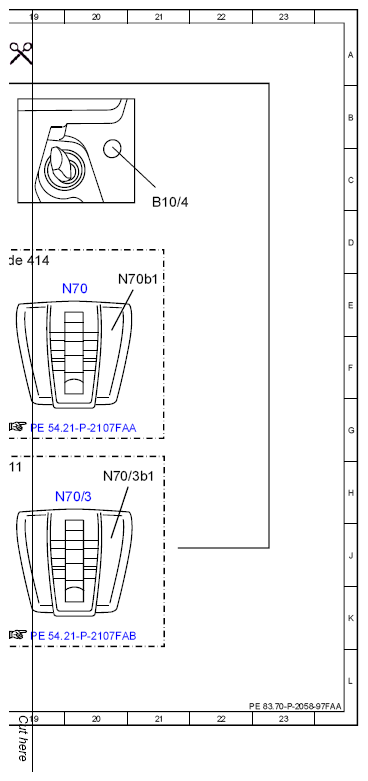

Fig 2: Trigger Heating Mode For Departure Time - Electrical Function Schematic (2 Of 2)
G07671214Courtesy of MERCEDES-BENZ USA
