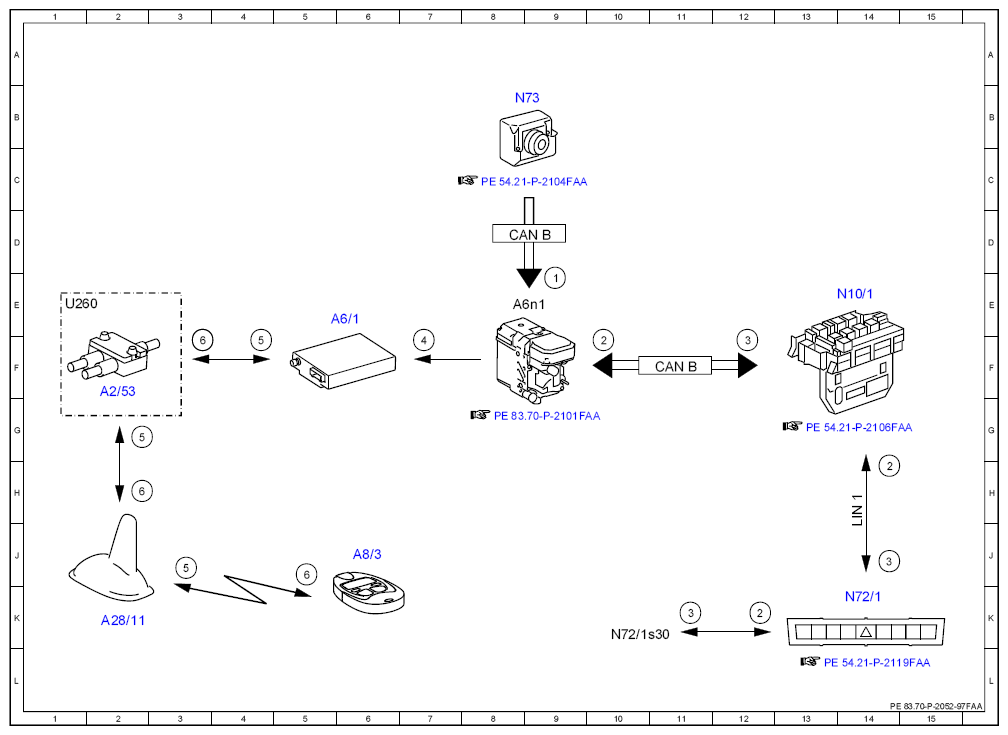

Electrical function schematic, teach-in of stationary heater radio remote control transmitter - PE83.70-P-2052-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15C, status | 9E |
| 2 | Stationary heater button, status | 12K |
| 2 | Stationary heater button, status | 14H |
| 2 | Stationary heater button, status | 10F |
| 3 | Stationary heater button, request | 11K |
| 3 | Stationary heater button, request | 14J |
| 3 | Stationary heater button, request | 12F |
| 4 | Open learning time window, request | 7F |
| 5 | Stationary heater radio remote control transmitter, status | 3J |
| 5 | Stationary heater radio remote control transmitter, status | 2G |
| 5 | Stationary heater radio remote control transmitter, status | 4F |
| 6 | Radio remote control receiver / stationary heater message | 5J |
| 6 | Radio remote control receiver / stationary heater message | 2H |
| 6 | Radio remote control receiver / stationary heater message | 3F |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 2F |
| A28/11 | Multifunction antenna | 2K |
| A6/1 | Stationary heater radio remote control receiver | 6E |
| A6n1 | Stationary heater control unit | 8E |
| A8/3 | Stationary heater radio remote control transmitter | 6J |
| CAN B | Interior CAN | 8D |
| CAN B | Interior CAN | 11F |
| LIN 1 | Instrument panel LIN | 14H |
| N10/1 | Front SAM control unit with fuse and relay module | 14E |
| N72/1 | Upper control panel control unit | 14K |
| N72/1s30 | Stationary heater button | 10K |
| N73 | Electronic ignition switch control unit | 8B |
| U260 | Valid for comfort telephony | 1E |
